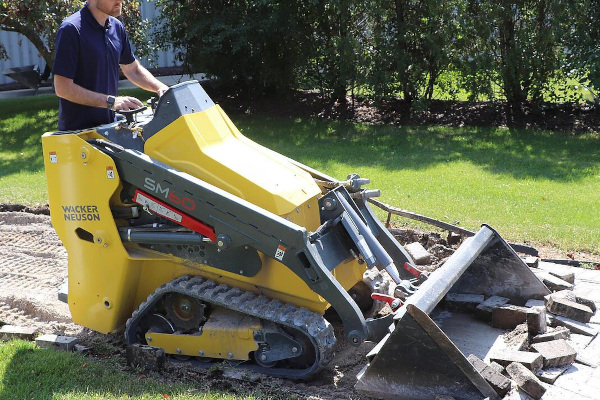

Wacker Neuson SM60
Features
Compact Design
- The overall machine width of 35.5 inches fits through doorways, gates and other tight spaces.
- The overall narrow width allows the machine to access urban areas and smaller yards while the light weight (2,685 lbs.) makes it easy to transport.
Industry Leading Safety Features
- Operator presence pedal & hydraulic function lockouts prevent accidental movement of lift arm and drive functions
All Day Comfort
- Large, spring-suspended operator platform provides comfort and a stable base for the operator.
- Fine tuned, forward angled joysticks, position the operator’s hands in a neutral position to reduce fatigue.
- Plush padding provides comfort and stability; Additional creature comforts include a cup holder, 12v charging port and storage compartment.
MORE FEATURES
MAINTENANCE
Professional Grade Undercarriage
- Durable undercarriage reduces maintenance costs and Total Cost of Ownership through innovative design and quick maintenance.
- Sealed idlers and triple flanged rollers provide added surface area and engagement to reduce wear and de-tracking.
- Simple, easy access jacking screw with lock nut makes tensioning tracks stress-free.
PERFORMANCE
Premium Performance
- The SM60 is powered by a 26.5 horsepower Kohler gasoline engine providing high torque and a flat power curve to enhance productivity through fast cycling times and expectational pushing power.
- 12.5 gpm of auxiliary hydraulic flow is available to power a wide variety of money saving attachments.
QUALITY
Built Tough
- Internal fuel and hydraulic oil tanks are protected from damage.
- Angled unibody chassis design sheds debris, reducing wear & tear.
Specifications
Technical Data
Mechanical - output details
| Ground Pressure (standard track) | 4.4 psi |
| Travel speed | 3.9 m/H |
Mechanical Details
| Overall Length without bucket | 75.6 " |
| Overall Length with Bucket | 98.5 " |
| Overall width without bucket | 35.5 " |
| Height | 54.8 " |
| Bucket Hinge Pin Height | 75.6 " |
| Bucket roll back at ground | 25 ° |
| Bucket roll back at maximum height | 92 ° |
| Angle of departure | 23 ° |
| Bucket dump height at maximum height | 103.7 " |
| Bucket dump angle at maximum height | 37 ° |
| Operating weight | 2,760.2 lb |
| Track width | 7 " |
| Ground clearance | 6.8 " |
| Length of Track on Ground | 32.5 " |
| Dump reach at maximum height | 26.9 " |
Hydraulic
| Flow rate | 12.2 gal/mi |
| Auxiliary relief pressure | 3,045 psi |
Operating fluids
| Fuel Tank capacity | 14 gal US |
Chassis
| Tip Load | 1,719.6 lb |
| Rated Operating Capacity at 50% Tip Load | 859.8 lb |
| Rated Operating Capacity at 35% Tip Load | 601.9 lb |
