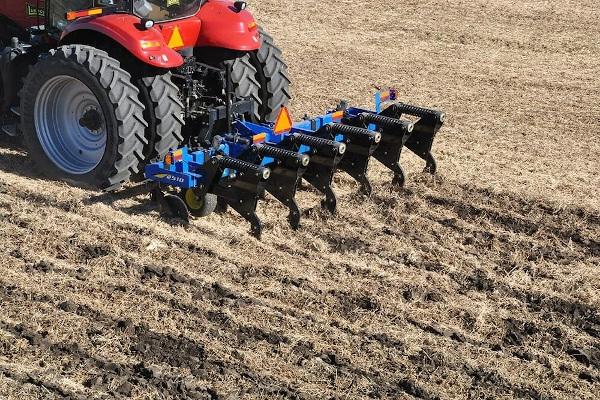

2500 Series In-Line Ripper

RUGGED AND DURABLE

All tillage tools need to be built to handle the stress of the fast-paced industry of today.  However, deep tillage machines with depth capacities well below the normal operating depths need to be especially tough.  In many instances, these tools will be operating in profiles that have never been touched by a tillage tool before.  The 2500 Series In-Row Ripper has what it takes.

THE FRAME

Built with 6” x 6” and 6″ x 4″ structural steel tubing, the robotically welded frame is the foundation for the heavy-duty Cat. II, III or IV three-point hitch.  The robust frame is the anchor for the lead coulters that start the tillage process.  The rear bar of the frame supports the shank assemblies.

THE SHANK MOUNT

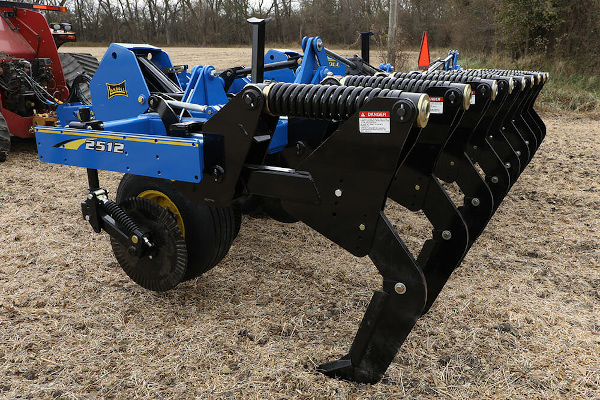

The 2500 In-Row Ripper shank mounts are built to withstand the rigorous torture that operating in unknown soil profiles can dish out.  The auto-reset spring shank assemblies allow for 2,300 lbs. of point load and 16” of trip height.  New to the line-up are the heavy-duty hydraulic auto-reset shank assemblies that offer a massive 4,000 lbs. of point load and 28″ trip height.  This is the most rugged shank offered and can handle heavy clay soils with ease and offers protection in rocky conditions.  Rigid-shear bolt models are also available for areas with minimal soil obstructions.

THE SHANK LEG

The heart and soul of Landoll’s In-Row Ripper is the shank leg, which cuts a narrow slot into the soil profile.  The geometry of the shank leg and the shape of the point combine to lift and lower the soil between the slots and develop a network of horizontal cracks and breaks between the shanks.  This slot along with the cracks and breaks created in the growth profile allows water and oxygen to infiltrate the soil to enhance plant growth for the next season.  The depth of the slot is determined by how deep and thick the compaction layer is.  This process is instrumental in keeping the biological environment favorable for residue decomposition.

YOUR INVESTMENT

The 2500 Series In-Row Ripper is more than just another ripper; it can be an integral part of almost any type of cropping scenario.  Even though these machines were initially designed for deep in-line tillage, some customers use the In-Row Ripper for incorporation practices such as sludge and manure application.  Others have utilized the parabolic shank leg option for more disturbance on the soil surface.  Still, others have opted for the low disturbance shank legs for the absolute least amount of surface disturbance.  From true no-tillers to conventional tillage aficionados, the 2500 Series and its concept of compaction management is a yield enhancement investment.

The Landoll 2500 Series In-Row Ripper…one machine…widely diversified…your investment.
