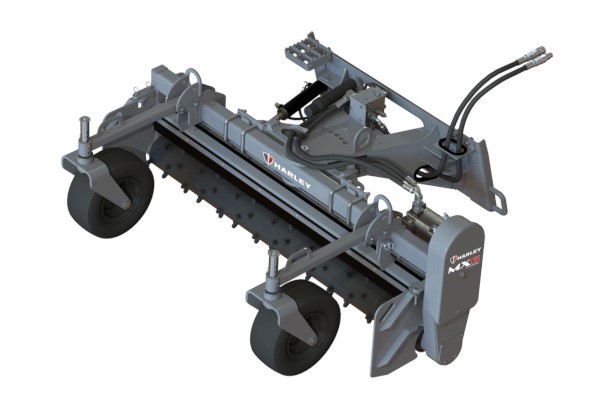

Paladin Attachment MX8
Features
- Solid tires eliminate flats to maximize uptime and productivity on debris-heavy jobsites
- Bi-directional motor allows the drum to rotate in either direction maximizing flexibility
- Pure carbide teeth design - specially shaped to ensure the best possible seedbed sub-base fracture pattern and superior moisture retention and release
- The box-end plates are engineered for quick and easy removal, enabling windrowing and reverse box raking without the need for bolts. Simply pull the pins to detach them
- Dual independently adjustable gauge wheels allow for skim passes for seeding - or - adjust to grade and contour
| Model | MX8 |
| Overall Height | 37.3 IN. |
| Overall Width | 100.7 IN. |
| Overall Length | 67.8 IN. |
| Raking Width | 90 IN. |
| Overall Length at 20 Degrees | 77.8 IN. |
| Overall Width at 20 Degrees | 97.8 IN. |
| Raking Width at 20 Degrees | 86.9 IN. |
| Center of Gravity-Manual Angle | 23.7 IN. |
| Center of Gravity-Hydraulic Angle | 23.3 IN. |
| Weight-Manual Angle | 1120 LBS |
| Weight-Hydraulic Angle | 1150 LBS |
| Flow Range | 17-40 GPM |
| Hyd. Motor. Disp (C.I.) | 15 |
| Number of Motors | 1 |
| Max Pressure (PSI) | 3000 PSI |
| Max Articulation | 20 Degrees |
| Rake Tooth Tip Diameter | 9 IN. |
