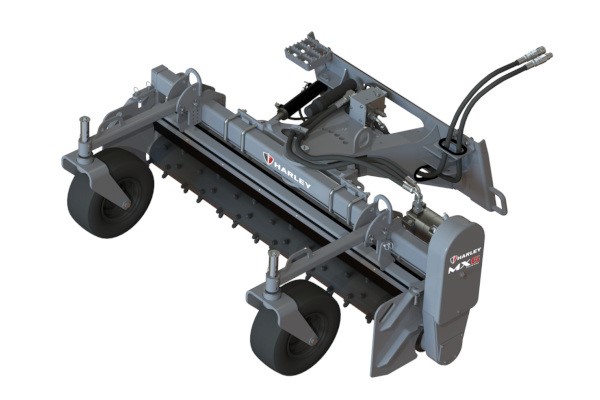

Paladin Attachment MX7
Features
- Solid tires eliminate flats to maximize uptime and productivity on debris-heavy jobsites
- Bi-directional motor allows the drum to rotate in either direction maximizing flexibility
- Pure carbide teeth design - specially shaped to ensure the best possible seedbed sub-base fracture pattern and superior moisture retention and release
- The box-end plates are engineered for quick and easy removal, enabling windrowing and reverse box raking without the need for bolts. Simply pull the pins to detach them
- Dual independently adjustable gauge wheels allow for skim passes for seeding - or - adjust to grade and contour
| Model | MX7 |
| Overall Height | 33.2 IN. |
| Overall Width | 93.6 IN. |
| Overall Length | 60.8 IN. |
| Raking Width | 85 IN. |
| Overall Length at 20 Degrees | 70.8 IN. |
| Overall Width at 20 Degrees | 91.7 IN. |
| Raking Width at 20 Degrees | 81.1 IN. |
| Center of Gravity-Manual Angle | 21.9 IN. |
| Center of Gravity-Hydraulic Angle | 21.6 IN. |
| Weight-Manual Angle | 1000 LBS |
| Weight-Hydraulic Angle | 1037 LBS |
| Flow Range | 15-25 GPM |
| Hyd. Motor. Disp (C.I.) | 15 |
| Number of Motors | 1 |
| Max Pressure (PSI) | 3000 PSI |
| Max Articulation | 20 Degrees |
| Rake Tooth Tip Diameter | 9 IN. |
