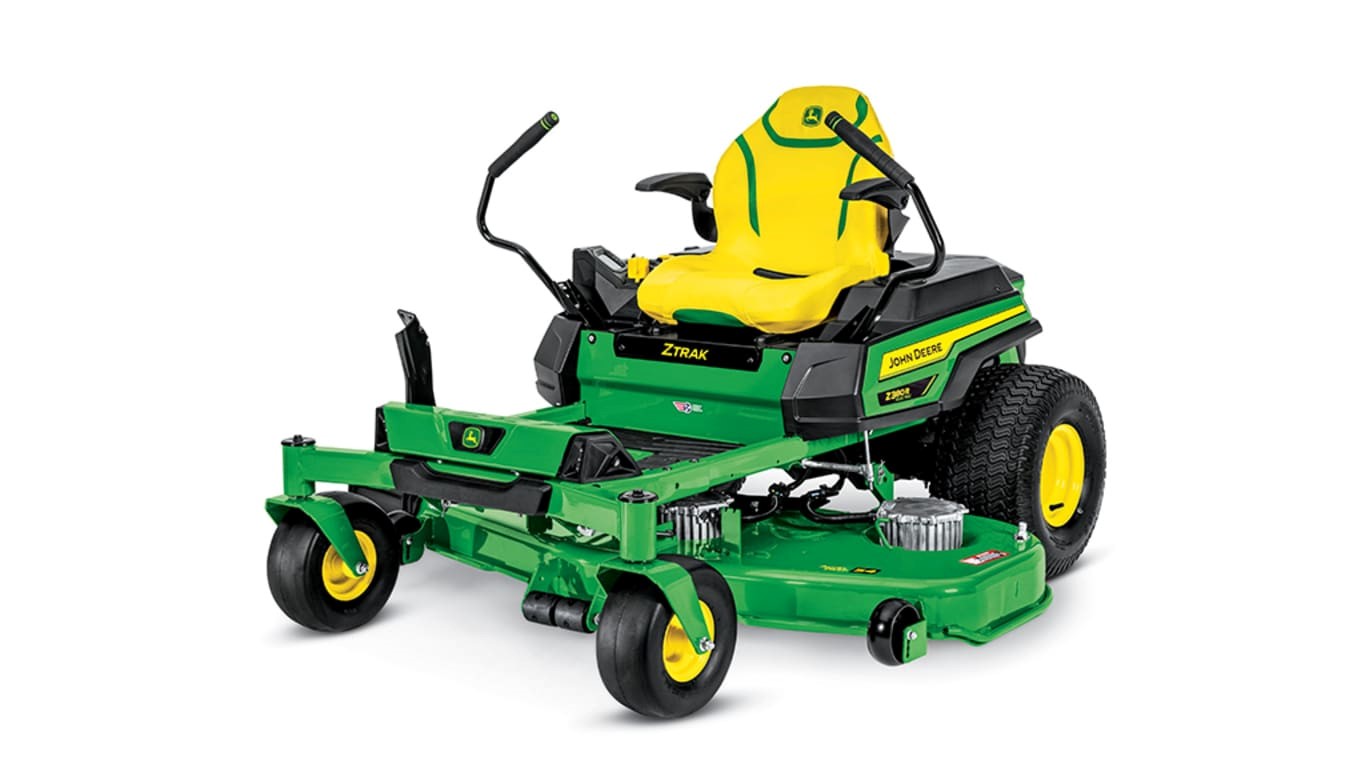

Z370R Electric ZTrak™ Mower

Z380R Electric ZTrak Mower

The Z300 Electric ZTrak Mowers deliver the productivity and cut quality of a gas-powered Z300 ZTrak Mower. Many proven components, including the frame and Accel Deep™ Mower Decks, are shared with the gas-powered models.

Accel Deep Mower Decks mow well fast

Accel Deep Mower decks are 4.83 to 4.97-in. (12.3 to 12.6-cm) deep with a flat top and large discharge opening.

Cut and suspended material can exit the mower deck without getting recut:

• Improves mowing capacity
• Reduces power consumption to extend run time

Stamped-steel construction eliminates sharp edges and corners:

• Less material build-up
• Less turbulence and power consumption
• Industry leading cut-quality

Adjustable mower wheels, positioned just above ground level give a more even cut and reduce scalping.

Optional MulchControl™ enables you to mulch frequently:

• Deep mower-deck design allows for optimal recutting and even distribution of clippings
• Converts to side-discharge in seconds if the grass is too tall to mulch

Optional 6.5-bu (230-L) rear bagger with a 42-in. (107-cm) mower deck for collecting grass clippings and leaves.

Mow with confidence

The Z300R Electric ZTrak Mowers are powered by lithium-ion batteries that have up to twice the capacity of competitors:

• Z370R with 42-in. (107-cm) mower deck has 3.56 (maximum) kilowatt-hour (kWh) battery; confidently mow 2 acres* on a charge
• Z370RS with 42-in. (107-cm) mower deck has 2.46 (maximum) kWh of batteries included in the factory configuration; confidently mow 1.25 acres* on a charge
• 370R with 48-in. (122-cm) mower deck has 3.56 (maximum) kWh battery; confidently mow 1.8 acres* on a charge
• Z380R with 54-in. (137-cm) mower deck has 7.12 (maximum) kWh battery; confidently mow 3.5 acres* on a charge

*Actual mowing area per charge will vary based on conditions and attachment usage.

The efficient Accel Deep Mower Decks with optimized blades extends runtime:

• Optimized blades give excellent cut quality, resilience to damage, and long wear life like the blades used on gas-powered Z300 ZTrak Mowers.

Go home mode gets you back:

• When the battery nears depletion, the mower blades switch off and a battery reserve allows you to drive the mower to a charging location.
• Use the battery to depletion without getting stranded.

Productivity

The electric transaxle has the same 7-mph (11.3-km/h) maximum forward travel speed as the transaxle used on gas-powered Z300 ZTrak Mowers.

The wider 48-in. (122-cm) and 54-in. (137-cm) mower decks are more productive and extend further leftward, which improves trimming.

Z370R Electric ZTrak™ Mower

Z370RS Electric ZTrak Mower

A Z300 Electric ZTrak Mower frees you from the hassles of gasoline.

Electric powertrain

Owning an Electric ZTrak Mower avoids spilling, smelling, transporting, or storing gasoline. Start your weekend with the scent of freshly cut grass instead of a trip to the gas station.

Electric ZTrak Mowers avoid many of the maintenance hassles of gasoline-powered mowers:

• No engine oil changes or disposal concerns
• No engine air filters to clean or replace
• No belts
• No grease points
• No need to add fuel stabilizer or remove fuel for seasonal storage

Charge anywhere with a standard 120-volt outlet (Z370R and Z380R Electric ZTrak Mowers)

Customer-provided extension cord is used to charge Z370R and Z380R Electric ZTrak Mowers

An onboard smart charger is built into the Z370R and Z380R Electric ZTrak Mowers:

• Doesn’t consume wall or counter space
• Doesn’t require moving the batteries between charger and mower
• No battery contacts to deteriorate
• Charge anywhere with a standard 120-volt outlet and grounded extension cord
• Recharging a completely depleted battery is expected to take 6 to 12 hours. Charge time may vary depending on temperature and condition of the battery.

Batteries are ready to get to work in a Z370RS Electric ZTrak Mower and EGO™ tools

Z370RS Electric ZTrak external charger

The Z370RS Electric ZTrak includes an external smart charger. When the charger is connected to the mower, all six batteries are charged and maintained. The charger will completely charge a set of depleted batteries in 4 to 5 hours. Charge time may vary depending on temperature and condition of the batteries.

The built-in charging hardware also serves as a six-battery charging hub, enabling you to use the mower’s charged batteries in your EGO tools. The high-capacity batteries from the mower are especially helpful with high-power draw EGO tools like snow blowers, power inverters, walk-behind mowers, and pressure washers.

Smart Charging technology

Both the onboard and external chargers are smart chargers that continuously monitor the batteries:

• Ensures optimum charging rate based on battery level and environmental conditions
• Stops charging when battery reaches full charge, no need to unplug the mower
• Maximizes battery life

EGO is a trademark of Nanjing Chervon Industry Co., Ltd

Washing a Z370R Electric ZTrak™ with a water hose

The Z370R and Z380R Electric ZTrak Mowers are designed to withstand dust and water so you can confidently weather the conditions, wash the mower with a water hose, and even store the mower outdoors.

Sealed battery with 5-year or 200-hour warranty

Rear cover

Sealed battery, on-board charger, and electronics shown on Z370R with rear cover removed

The battery is sealed to protect it from the elements:

• Meets IP66 (ingress protection) rating
• Solid protection-no dust can enter battery
• Water protection-no water can enter battery from washing
• Competitive electric mowers do not meet this standard, leaving them vulnerable
• Rear cover provides additional protection to sealed battery and electrical hardware
• Backed by a 5-year or 200-hour, whichever comes first, warranty
• Optional PowerGard™ Lithium-Ion Battery Protection Plan extends battery warranty to 10 years or 400 hours
• PowerGard Protection Plans are only available in the United States.

Z370R Electric ZTrak™ Mower

Z370R Electric ZTrak Mower

A Z300R Electric ZTrak Mower is built tough to provide many years of trouble-free service. Several proven components, including the frame and the Accel Deep™ Mower Decks, are shared with the gas-powered Z300 ZTrak models.

Frame

Z370R Electric ZTrak Mower

The Z300R Electric ZTrak Mower frame is constructed of heavy-duty formed and welded steel for strength, reliability, and long life:

• Robust 2.5-in. x 2-in. (6-cm x 5-cm) steel tubing in front and 1.5-in. x 2-in. (4-cm x 5-cm) steel tubing on the sides
• A front bumper protects the front of the mower from damage
• Caster wheel pivots have sealed bearings for easy steering and long life

Mower Decks

42-in. (107-cm) Accel Deep Mower Deck

48-in. (122-cm) Accel Deep Mower Deck

54-in. (137-cm) Accel Deep Mower Deck

The Accel Deep Mower Decks are forged from heavy-gauge steel:

•   42-in. (107-cm) Accel Deep Mower Deck: 12-gauge, 0.105-in. (2.7-mm)
•   48-in. (122-cm) and 54-in. (137-cm) Accel Deep Mower Decks: 10-gauge, 0.135-in. (3.4-mm)

To withstand impacts both decks feature:

• Formed spindle pockets, side gutters, and deck-shell ribs that provide extra strength
• Double captured mower wheels for increased durability

The 48-in. (122-cm) and 54-in. (137-cm) Accel Deep Mower Decks include a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra protection.

Sealed motors and high-quality connectors

Sealed mower deck motor

Mower deck motor connectors

The same weatherization technology used on John Deere’s agriculture and construction products is found on Electric ZTrak Mowers for dependable, trouble-free performance. The mower deck motors are also sealed to keep dust and water from entering. High-quality electrical connectors are also used throughout the mower.

Transaxle

Z370R Electric ZTrak Transaxle

The electric transaxle is maintenance free and reliable:

• Sealed, with no hose connections that could leak
• Beefed-up 1-in. (2.5-cm) axles with four-bolt hubs

High-quality paint

All John Deere mowers are painted with a dual-stage E-coat process using powder-paint coatings to provide protection from fading and corrosion.

Z370R Electric ZTrak™ Mower

Z370RS Electric ZTrak Mower

Look forward to the weekend and mowing with your Z300R Electric ZTrak Mower. The mower’s seat, operator station, styling package, ergonomic controls, even the mower deck are designed to give a clean, quiet, and a smooth riding experience.

20-in. (51-cm) cut-and-sewn seat

20-in. (51-cm) custom-tailored seat

Z300R Electric ZTrak Mowers are equipped with a 20-in. (51-cm) cut-and-sewn seat:

• Thick foam and spring suspension smooths out rough ground
• Stabilize yourself with side bolstering
• Rest your arms on standard armrests
• Eye-catching embroidered John Deere logo and green accents

Enjoy the peace and quiet of an electric powertrain

Z300R Electric ZTrak Mowers are a delight to operate:

• No gasoline engine noise, vibration, or the high-pitched whine of a hydrostatic transmission
• Accel Deep™ Mower Decks keep the grass and dust under the deck and away from you
• Optional MulchControl™ enables you to mulch frequently
  • Prevents the discharge of material in mulching mode
  • Converts to side discharge in seconds if the grass is too tall to mulch
• Standard floor mat dampens noise

Thoughtful design prioritizes your ergonomics

Z370R operator platform

Optional boarding step

The Z300R Electric ZTrak Mowers were designed with the operator in mind:

• Enjoy a roomy and uncluttered operator platform with lots of legroom
• Rest your feet on footrests at the front of the platform
• Adjust the seat and motion-control levers to you

  • No tools are required to adjust seat fore-and-aft
  • Use the included tool to adjust the height and fore-aft position of the motion-control levers
• Glance down and see the trim edge of the mower deck without leaning
• Contoured fenders improve visibility to the drive tires
• Easily lift the mower deck using the foot-lift pedal
• Optional boarding step makes it even easier to get on and off the mower

Attractive and modern styling accommodates creature comforts

Covered storage compartment charging a cell phone

Z370R lighting pattern

Z300R Electric ZTrak Mowers have additional creature comforts that make mowing enjoyable:

• Securely hold your refreshment in a cup holder
• Store your cell phone in the covered storage compartment, charge it with the standard USB Type-C charging port
• Use the light emitting diode (LED) lights to finish mowing at dusk
  • Forward-LED lights illuminate in front of vehicle
  • Mid-LED lights light up the sides of the mower deck
• Large 11x6-5 front caster tires and large rear drive tires
  • Smoother ride
  • More traction for improved slope performance

Z370R and Z380R display panel and controls

Z370RS display panel and controls

The Z300R Electric ZTrak™ is designed to be intuitive to use, with controls at your fingertips.

Get started with the power button

Power button

Removing key pin from power button

A simple hold of the power button activates a Z300R Electric ZTrak. A key pin can be removed to prevent unintended access.

Two easy-to-see displays keep you informed

Z370RS Display panel

Status display

Display panel

• Located on the console near power button and mower controls
• Shows your battery level, operating mode, and operating hours
  • Z370RS display includes battery status indicators for each of the six batteries which displays the quantity of batteries in use, and if there is a problem with a specific battery
• Advises if an unsatisfied PTO, seat, or motion-control interlock is preventing operation
• Advises when the mower is in push mode or when park brake is applied
• Back lit for night visibility

Status display

• Built into footrest to increase visibility while mowing
• Displays battery level in five vertical segments
• Indicates mower status in top horizontal segment
  • Green-you’re ready to turn on PTO and start mowing
  • White-you’re in standby, you need to satisfy a PTO, seat, or motion-control interlock
  • Red-there is a mower fault that needs to be corrected by cycling the PTO switch, cycling the power button, or dealer service

You’re in control

Z370R Electric ZTrak mowing

Mode and PTO switch

The electric transaxle of the Z300R Electric ZTrak is tuned to be smooth, responsive, and operate like a gas-powered ZTrak Mower.

Three operating modes enable you to tailor the performance to your preferences and yard conditions:

• Low mode - 5-mph (8-km/h) travel speed for trimming or precise maneuvering
• High mode - Full 7-mph (11.3-km/h) travel speed for most mowing situations
• Bagging mode - Increased mower-blade speeds to support material collection* or challenging mowing conditions

Operating mode can be changed using the mode switch

Material collection is only available on the Z370RS and Z370R with the 42-in. (107-cm) mower deck.

Automatic park brake

Motion-control levers in park position

Motion-control levers in operating position

The integrated park brake is automatically applied when motion control levers are stowed outward and disengaged when levers are placed into operating position.

Mow at the right height every time

Cut-height adjustment knob

Foot-pedal lift

A foot-lift pedal and a cut-height preset work together to set the cut height and ensure the mower deck returns to the correct position:

• Easily lift the mower deck using the foot-lift pedal
• Use the cut-height adjustment knob to set your desired cutting height
• Release the lift pedal to lower the mower deck to the preset cut height
• Mower deck cutting height adjusts from 1.25 to 4.5 in. (3 to 11 cm) in 0.25-in. (0.64-cm) increments


The foot-lift pedal also provides a convenient way to temporarily raise the mower deck over an obstruction while mowing.

A Z300R Electric ZTrak™ Mower has several features to simplify maintenance.

Electric powertrain frees you from most maintenance obligations

• No engine oil changes or disposal concerns
• No engine air filters to clean or replace
• No belts
• No grease points
• No need to add fuel stabilizer or remove fuel for seasonal storage

Accel Deep™ Mower Decks resist buildup and are simple to clean

Deep flat-top mower deck

The Z300 Electric ZTrak Mowers are designed to minimize cleaning hassles:

• Accel Deep Mower Decks are deep with a flat top
  • Reduces the amount of material that escapes and drifts onto the operator and mower
  • Reduces the accumulation of debris on the underside of the shell
  • Few places on underside to catch material
• No tools are required to remove the footrest for full access to the top of the mower deck
• No belts or belt guards to catch debris and necessitate cleaning
• Standard wash port injects water to clean the underside of the mower deck
• Optional MulchControl™ system enables you to mulch frequently

  • Prevents the discharge of material in mulching mode
  • Converts to side discharge in seconds if the grass is too tall to mulch

Trustworthy maintenance resources at your fingertips

Example quick-response (QR) code label

QR code label on Z300 ZTrak Mowers

John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the front panel under the seat.

Upper portion of owner support web page

Lower portion of owner support web page

The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.

The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.

Convenient service interval decal

Service interval chart

The service interval decal includes recommended service points, intervals, and part numbers. On Z300 ZTrak Mowers the label is located on the bottom of the seat pan.

Push mode

Push-mode switch

If you need to push or tow the mower you can activate the push-mode switch which allows the drive wheels to roll freely.

Tie-down locations

Front and rear tie-down locations are provided for convenience and safety when trailering the mower.

Z370R Electric ZTrak™ Mower

Overview

A Z300 Electric ZTrak is covered by a 3-year or 200-hour, whichever comes first, bumper-to-bumper warranty.

The batteries feature a longer 5-year or 200-hour, whichever comes first, coverage period.

An  optional PowerGard™ Lithium-Ion Battery Protection Plan, with a 10-year or 400-hour coverage period, whichever comes first, is available for the sealed batteries used in Z370R and Z380R models.

An optional PowerGard Protection Plan Residential is available to cover the remaining components of all Z300 Electric ZTrak models. PowerGard Protection Plans are only available in the United States.

All warranty repairs are serviced and administrated by your John Deere dealer; dealer, there is no need to file claims with component suppliers.

A Z300 Electric ZTrak provides accepts the same versatile attachments as gasoline-powered Z300 ZTrak Mowers.

Tow with standard rear hitch

Z370RS Electric ZTrak with cart

Z380R Electric ZTrak with spreader

A standard rear hitch provides the ability to pull 250 lb (113 kg) of weight. Use the hitch with carts, tow-behind spreaders, aerators, and thatchers.

Options for your clippings and grass

MulchControl™ handle (shown on similar Z315E mower deck)

6.5-bu (229-L) rear bagger, chute, and ballast (shown on similar Z315E model)

An optional MulchControl attachment enables you to mulch frequently and gives you the option to convert to side discharge in seconds if the grass is too tall to mulch.

An optional 6.5-bu (230-L) rear bagger collects grass clippings and leaves. The bagger only available on Z370RS and Z370R models equipped with the 42-in. (107-cm) Accel Deep™ Mower Deck.

Boarding step makes it easier to get on mower

Boarding step installed

An optional boarding step allows for easier mounting and dismounting of a zero-turn mower. The step attaches to the left side of the mower frame for convenient access.

Protect your investment

Rear bumper

Protective cover

An optional rear bumper is available to protect the back of the mower. Optional seat covers and protective covers protect your investment from sun damage, rain, and dust.

X350 Tractor

Z370R Electric ZTrak™ Mower

Overview

Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).

Find the right parts the first time

Use Equipment Mobile to find the right parts

It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.

Plan, track, and coordinate maintenance with your dealer

Maintenance plan screen

Maintenance parts and notes screen

Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.

Operator’s manual in the palm of your hands

A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.

Smart Connectors

Smart Connector

BUC10537 smart connector, wiring harness, and twist ties

A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:

• Engine hours, that enable maintenance reminders
• Key switch status and battery level to warn if the battery is low
• Fuel level - even when away from the mower, the app remembers the fuel level so you can make sure the mower is fueled when it is time to mow

Optional BUC11960 smart connector is for use with:

• S120, S130, S160, S170, and S180 Tractors
• Model year 2021 and newer S240 Tractors (serial number 880,001-)
• Z515E, Z530M, Z530R, and Z545R ZTrak™ Mowers

Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.

Optional BUC10537 smart connector is for use with:

• Model year 2016 and newer Select Series X300 and X500 Tractors

Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC10537 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.

The Z370R, Z370RS, and Z380R Electric ZTrak Mowers include the smart connector in base equipment.

On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.

A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.

Bluetooth is a trademark of Bluetooth SIG, Inc.
