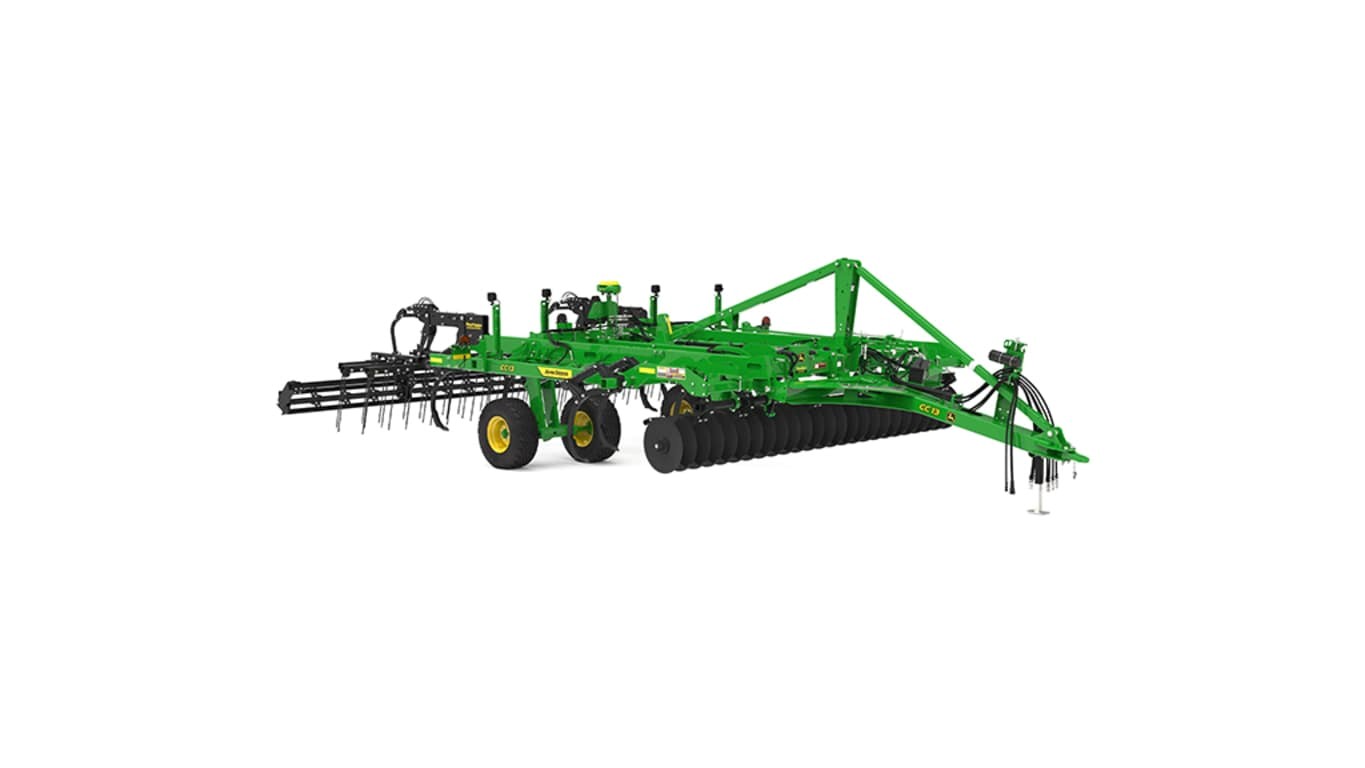

John Deere CC13 Coulter Chisel
Features
Fall Tillage faster
Fall Tillage faster
Chisel 7" deep at 7 mph with the CC21 and finish up to 50 more acres a day*.
The CC Series gives you the ability to work wider and faster. By putting the CC Series in the field for primary tillage, you can finish faster and tackle whatever challenge is next.
*Calculation assumes going from an 11 shank 2730 (22 ft working width) at 6.2mph to a CC21 (26.25 ft working width) at 7 mph.
Any Operator. Anytime
Any operator anytime
Easy to adjust, if you need to. The CC Series tackles varying crop conditions with minimal operator input or adjustments. When adjustments do need to be made, TruSet™ allows you to make changes with the push of a button, maximizing acres covered per day.
Tech for the future. Now
Tech for the future. Now
The simplicity and uptime of the CC Series makes every model an ideal primary tillage tool to run autonomously. With little to no adjustment needed as conditions change, you can have peace of mind knowing the CC Series is getting work done.
Maximize your tractor with the CC Series
Maximize your tractor with the CC Series
Compatible with a wide range of tractors.
The wide range of sizes offered in the CC Series allows you to better pair your primary tillage tool to tractors already around the farm. Whether it’s a new tractor or one that has been on the farm for years, there is a CC Series model for your operation.
Key Specs
| Working width | 4.95 m 16 ft, 3 in. |
|---|---|
| Maximum transport width | 5.8 m 18 ft, 10 in. |
| Miles per hour | 9.6-11.3 km/h 6-7 mph |
| Horsepower per foot | 48.95 to 61.2 kW/m 20 to 25 hp/ft |
| Standard spacings | 38.1 cm 15 in. |
| Weight | With coil-tine harrow only: 5,897 kg 13,000 lb With coil-tine harrow and rolling basket: 6,350 kg 14,000 lb |
Fold
| Type | Rigid |
|---|
Working width
| Working width | 4.95 m 16 ft, 3 in. |
|---|
Transport width
| Maximum transport width | 5.8 m 18 ft, 10 in. |
|---|
Transport height
Operation depth
| Recommended Operating Depth | 15.2-20.3 cm 6-8 in. |
|---|---|
| Maximum depth | 25.4 cm 10 in. |
Operating speed
| Miles per hour | 6-11.3 km/h 6-7 mph |
|---|
Horsepower required
| Horsepower per foot | 48.95-51.2 kW/m 20-25 hp/ft |
|---|
Depth control
| Option 1 | TruSet™ in-cab controls and single-point crank-adjust |
|---|
Hitch
| Description | Floating tubular T-hitch: 15.2x25.4 cm 6x10 in. |
|---|
Frame
| Tubing | High strength, box beam steel cross tubes: 10.2x10.2 cm 4x4 in. End tubes, patented four-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm 2x5 in. |
|---|---|
| Fore-and-aft | 340.4 cm 134 in. |
| Underframe clearance | 81.3 cm 32 in. |
Standard spacings
| Inches | 38.1 cm 15 in. |
|---|
Standard
| Standard | Trip height 30.5 cm 12 in. Maximum operating depth 25.4 cm 10 in. Underframe clearance 81.3 cm 32 in. Spacing 38.1 cm 15 in. |
|---|
Weight
| Weight | With coil-tine harrow only: 5,897 kg 13,000 lb With coil-tine harrow and rolling basket: 6,350 kg 14,00 lb |
|---|
Ground-engaging components
| Choices | Variety of shovels and chisel points |
|---|
Wheels
| Centerframe wheels and tires | 320/70R15 |
|---|
Warranty
| Description | 3-year frame and standard warranty |
|---|
