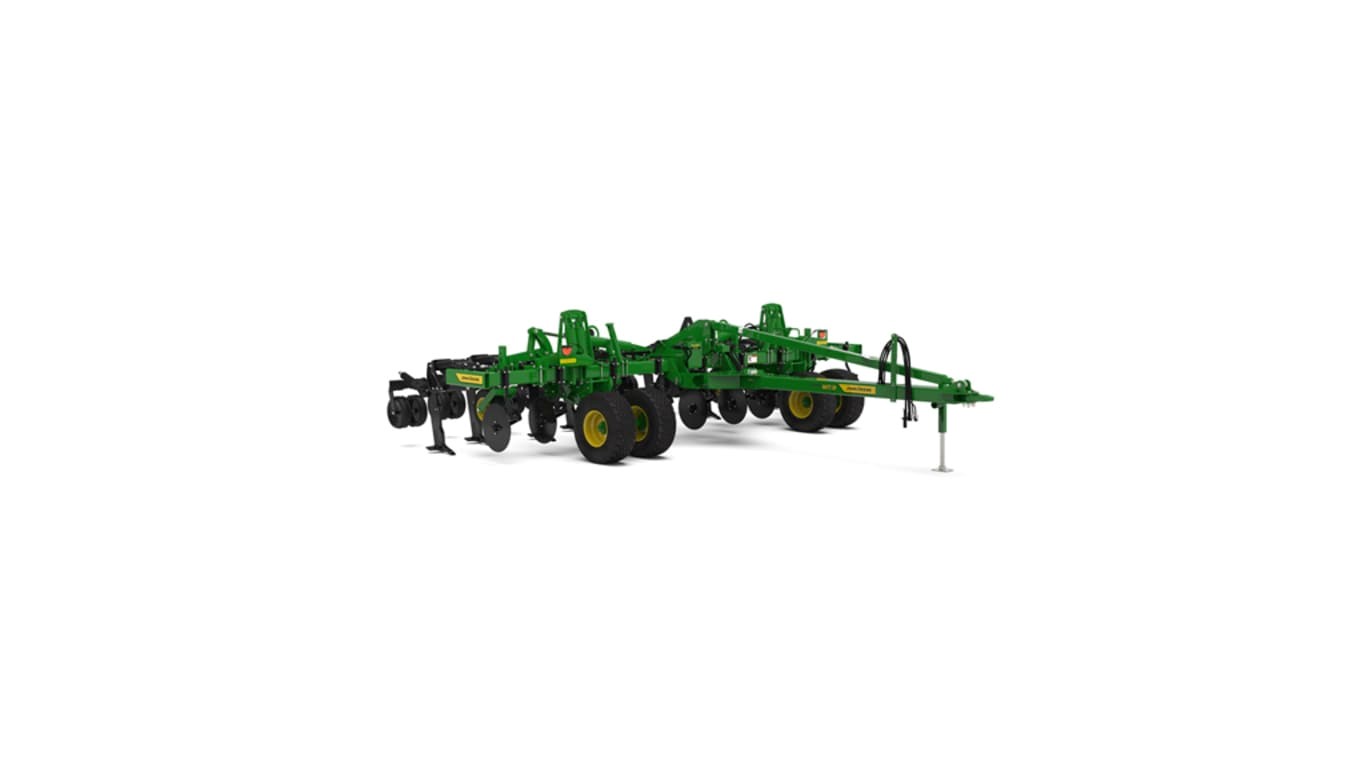

John Deere MT9 Minimum-Till Ripper
Features
Manage compaction faster
MT11 Drawn paired with 9RX 710 Tractor
MT Series Minimum Till Rippers are built to run at 4 – 7 miles per hour behind today’s high horsepower tractors.
Rip 25 more acres per day with the MT11 compared to the previous 9 standard model. MT Series Rippers break-up deep compaction at depths up to 16 in. while minimizing topsoil disturbance.
Extended wear components lead to higher productivity
MT Standards
Extended wear standards deliver double the life expectancy compared to previous 2100 ripper models. The MT series delivers a highly productive and easy to set minimal maintenance solution to breaking up soil compaction. Spend less time changing components and more time working your ground.
Key Specs
| Working width | 6.8 m 22.5 ft |
|---|---|
| Transport width | 4.8 m 15.5 ft |
| Operating depth | Maximum 40.6 cm 16 in. |
| Miles per hour | 6.4-11.2 km/h 4-7 mph |
| Horsepower per standard | 29.8-44.7 kW 40-60 hp |
| Spacing between standards | 76.2 cm 30 in. |
Tool configuration
| Type | In-line ripper |
|---|
Working width
Transport width
Operating depth
| Maximum | 40.6 cm 16 in. |
|---|
Frame
| Size | 152x152x9.5 mm 6x6x0.35 in. |
|---|---|
| Maximum underframe clearance | 89 cm 35 in. |
Operating speed
| Miles per hour | 6.4-11.2 km/h 4-7 mph |
|---|
Horsepower required
| Horsepower per standard | 29.8-44.7 kW 40-60 hp |
|---|
Depth control
| Option 1 | 3-point hitch for integral |
|---|---|
| Option 2 | TruSet™ in-cab controls and single-point crank-adjust (on drawn models only) |
Hydraulic requirements
| Option 2 | 1 SCV (fold) at 17,237 kPa 2,500 psi |
|---|
Hitch
| Options | Integral Optional: Drawn |
|---|---|
| Three-point hitch requirements | Category 4N (with Quik-Coupler) |
| Pull-type description | Category 4 or 5 Hitch |
Standard options
| Spacing between standards | 76.2 cm 30 in. |
|---|---|
| Option 1 | Trip force Shear-bolt: 3,265 kg 7,200 lb Standard type Straight with wear shin: 19 or 31.75 mm 0.75 or 1.25 in. Shear-bolt |
| Option 2 | Trip force 1,451.5 kg 3,200 lb Trip height 30.5 cm 12 in. Standard type 19 mm 0.75 in. Cushion trip |
Ground-engaging components
| Options | Standard: 19 mm (0.75 in.) min-till point: 178 mm (7 in.) low-disturbance: 254 mm (10 in.) ultra-low-disturbance: 63 mm (2.5 in.) Standard: 31.75 mm (1.25 in.) Regular: 57 mm (2.25 in.) Capped: 57 mm (2.25 in.) Double-capped: 57 mm (2.25 in.) LaserRip points: 70 mm (2.75 in.), 127 mm (5 in.), and 178 mm (7 in.) |
|---|
Coulters
| Type | Spring cushion coulters |
|---|---|
| Pounds of force | Normal working load: 272.2 kg 600 lb Deflection of: 10.2 cm 4 in. Maximum trip load: 362.9 kg 800 lb Deflection of: 20.3 cm 8 in. |
| Blades | Straight or rippled: 559x4.5 mm 22x0.1777 in. |
Closing wheel attachment
| Down force | 113.4 kg 250 lb |
|---|---|
| Size | 10.2x40.6 cm 4x16 in. |
| Spacing | 19.05 to 35.6 cm 7.5 to 14 in. |
| Angle adjustments | 1 to 15 degree (angle) |
Stabilizer/gauge wheels
| Type | Four Stabilizer wheels |
|---|---|
| Wheels | 52.1x20.3 cm 20.5x8 in. |
| Tires | 10 PR |
Pull-type wheels
| Description | VF320/70R15 Radial tire (with drawn hitch) |
|---|
