Scraper Controls and Scraper Pro touchscreen display (delayed delivery) shown

The scraper integration kit unlocks the value and integration of the Deere ADT and Scraper. Once installed, the operator simply selects scraper mode in the ADT primary display, optimizing the truck for scraper applications and allowing the ADT and scraper to be operated as one seamless machine. Scraper functions are controlled by the multifunction joystick. Scraper brakes are controlled by the ADT braking system. The Scraper Pro package adds a further enhancement to set this system apart by providing productivity tools and automation to maximize operator efficiency.

The scraper controls are immediately available, while the Scraper Pro package will have delayed delivery.

• ADT Scraper Mode optimizes engine torque curves and differential locks, and sets the maximum transmission gear to F2 while in the cut to maintain momentum, reduce tire slip and maximize productivity.
• Scraper Pro unlocks tools that track productivity and automation that pushes productivity higher with  push-button sequencing.
• Scraper is controlled via a John Deere multifunction joystick inside the ADT cab.
• Scraper brakes are integrated into the ADT braking system to maximize control and increase stopping power.
• Deere-designed, position-sensing cylinders enable real time feedback to the operator and push-button sequencing for ease of operation with less operator inputs.
• Cushioned cylinders absorb shock during push-loading, resulting in more comfortable operation.
• Should the ADT be converted back to a dump body, the multi-function joystick still acts as the dump body lever.

Scraper Pro Package delivers Productivity tracking and ease of operation.

Scraper Pro Package (Delayed Delivery)

• Includes touchscreen high resolution display to enable advanced features.
• Bowl camera is installed on the gooseneck and provides visibility to the full bowl to monitor scraper fill.
• Traditional ADT rear camera is repositioned to provide visibility to the cutting edge.
• Operators can see real time scraper position feedback that tracks the cutting edge height and ejector gate percentage open.
• Also provides the operator with:
• Real-time and average time in cut
• Load counter
• Fuel Burn

Scraper Pro Sequencing (Delayed Delivery)

1. Empty Transport
2. Prepare to Cut
3. Cutting
4. Loaded Transport
5. Ejection



• Single button push prepares scraper and ADT for each phase of operation. (Empty, Prepare to Cut, Cutting, Loaded Transport and Ejection)
• Operator can configure scraper positions for each phase based on jobsite conditions or preference allowing fewer fine adjustments while operating.
• Simplifies operation by reducing the number of operator inputs.
• Provides consistent performance regardless of who is operating the machine.
• Prevents overcutting that can slow cycle time and place additional wear on the ADT.

John Deere Offers a Full Earthmoving Portfolio

In Earthmoving and Site Development, John Deere understands you need options to manage your cost per yard based on productivity, jobsite conditions, or even preference of the machines you use. With the latest addition of the 3812 Large Scraper, John Deere dealers can now provide you with:

• 460E-II or 460 P-Tier ADT pulling a 3812 Large Scraper
• A wide range of ADTs, Excavators, and Dozers
• Scraper Systems including Scraper Special tractors and pans

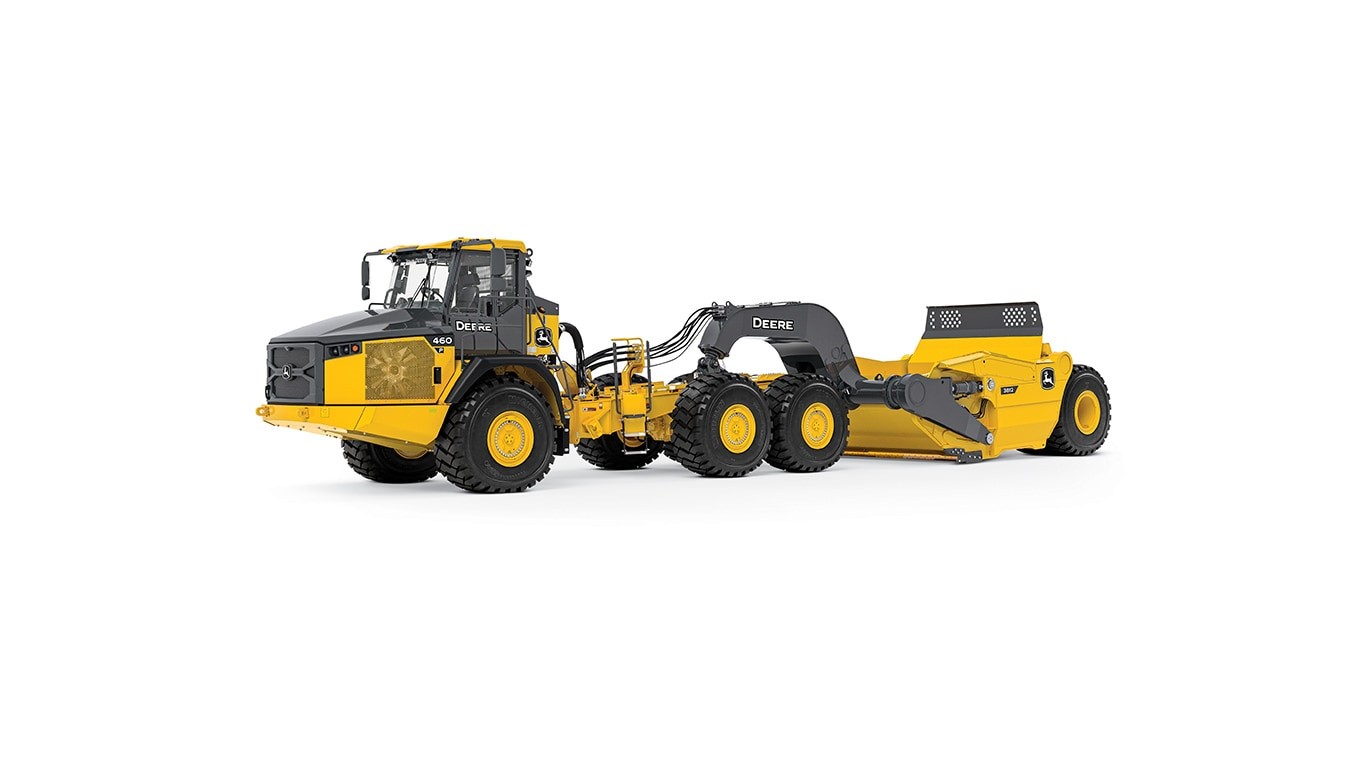

Depending on the jobsite variables, the ADT pulling a large scraper can often provide you with a cost per yard somewhere between Excavator loading multiple ADTs and Scraper Systems pulling multiple pans using just one operator. The John Deere 3812 Large Scraper was designed for large earthmoving projects with cost per yard in mind.  With a 34.7 m³ (38 cu yd) capacity and 3.56 m (12 ft) cut width, the gooseneck hitch design integrates seamlessly with 460 E-II and 460 P-Tier ADTs.

Gooseneck design maneuverability

Whether you choose a dedicated ADT Scraper configuration, or you choose a traditional ADT with dump body that you convert to a scraper configuration, the John Deere 3812 offers fleet flexibility to allow you the highest utilization of your assets when your jobsites demand it.

• 460E-II or 460 P can be ordered with or without a dump body.
• Should the ADT be converted back to a dump body, the multi-function joystick still acts as the dump body lever.
• Gooseneck design allows tight turning radius when you need it.
• 460 P-Tier ADTs in scraper applications can receive up to 8,000 hours/60 months of extended warranty.
• 3812 Large Scraper pan receives standard 1 year warranty.
