Motor cover protecting hydraulic hose connections

Overview

The auxiliary hoses to the prime mover are individually protected with a Cordura sleeve and collectively wrapped with an additional spiral hose protector to prevent hose damage. cutters come standard with a motor cover that protects the hydraulic hose connections from debris. Many competitive models leave these components exposed and vulnerable to damage.

Front push bar on featured on a RX84

Overview

A heavy-duty front push bar is integrated into the rotary cutter deck structure which can be used to guide trees when felling.
Aggressively serrated corners of the push bar are useful to maneuver trees and brush.

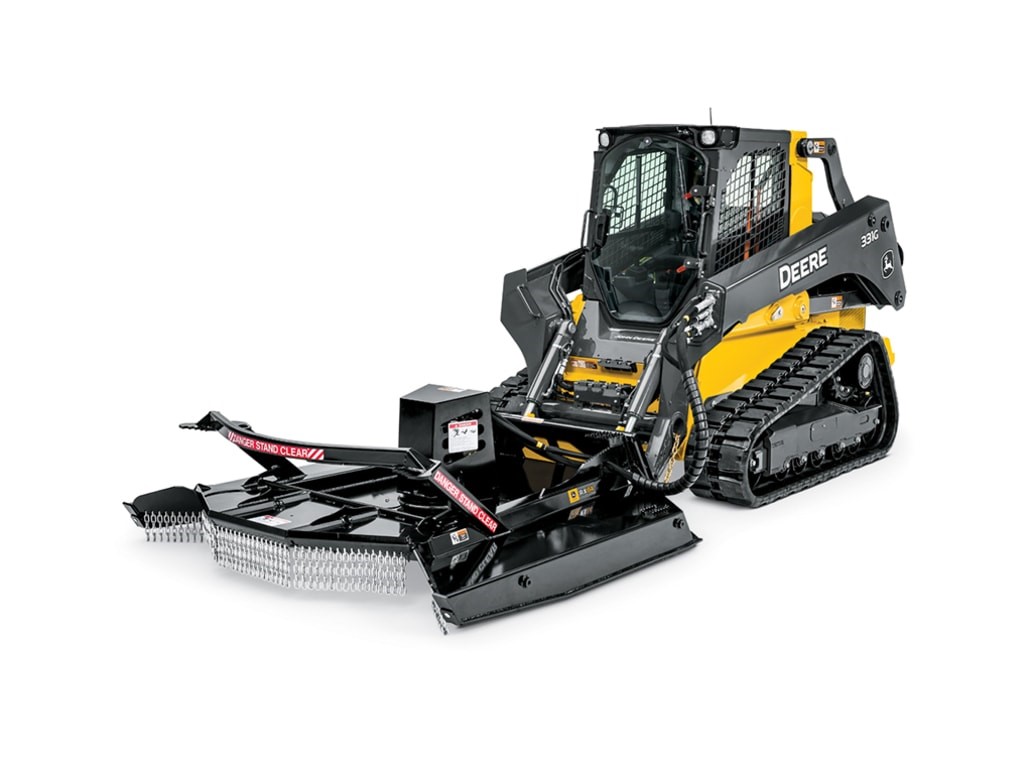

RX80 Rotary Cutters on a 333G Compact Track Loader

Overview

The RX-Series utilize a hydraulic valve to brake quickly and safely. An audible sound is heard during shutdown to indicate the blades stopped spinning. The direct drive bearing requires a 1200-hr drain and refill maintenance interval. Many competitors typically require maintenance intervals as low as 500 hr.

Benefits

Direct drive bearing system offers fewer moving parts to maintain, drop-in motor alignment, and better system efficiency.

Replaceable skid shoe

Overview

The RX-Series have bolt-on skid shoes that can quickly be replaced in the field when worn out. Skid plates are standard on each rotary cutter, and replacement skids can be ordered as a field kit with all hardware included.

Retractable forward shield

Overview

An exclusive forward shield rolls back when contacting larger diameter trees, and its weight returns the shield to the closed position during normal operation. This feature exposes the blades for felling standing trees and then covers the blades during ground cleanup. Smaller trees, foliage, and brush bend beneath the heavy weight of the shield as they are drawn into the cutter. The shield provides a barrier to the operator while in its retracted state. Additionally, the shield mechanism does not require maintenance or grease.

Weighted deflective chain curtain

Overview

A heavy-duty chain curtain across the front of the cutter deck knocks down and minimizes flying debris during operation.

Pressure gauge motor cover that protects connections from debris

Overview

A standard pressure gauge with color coded zones provides visual feedback of the brush cutter’s performance. This feature helps an operator maintain the most efficient operation of the rotary cutter when cutting heavy brush without stalling the motor and overheating the system.

Optimized blade carrier designed for quick start-up and recovery performance

Overview

The Blade Kit is a John Deere field kit that contains three 16 mm (5/8 in.) AR400 replacement blades and all retaining hardware required to replace all blades on an RX-Series. It is recommended practice to replace all mounting hardware when replacing blades.

Benefits

• Blade carrier on the RX72 and RX84 is engineered to provide some of the fastest stall and recovery performance of any brush cutter in the market.
• Blade carrier provides the right combination of weight distribution and strength to meet the demands of heavy brush clearing applications yet responds quickly if the cutter
