AUGER

DUAL-AUGER HARVESTING POWER

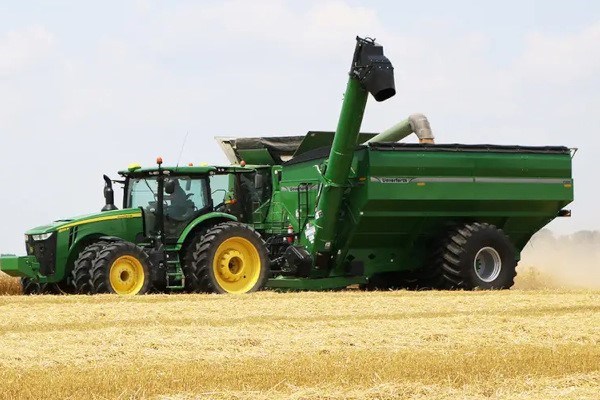

A dual-auger grain cart provides faster unloading speeds and a lower profile hopper, allowing more room for the combine auger in uneven terrain.

The 20” horizontal floor auger feeds the 22” (24” on model 2020) vertical unloading auger for unloading speeds up to 1,000 bushels per minute!

CONVENIENT UNLOADING

The 20" diameter horizontal floor auger feeds the 24" vertical auger on model 2020 for unloading speeds up to 1,000 bushels per minute or the 22" vertical auger on models 1620, 1320 and 1120 for unloading speeds up to 850 bushels per minute.

AUGER FLIGHTING

The exclusively designed 3/8" thick max-edge auger flighting features an additional 1/4" thick Abrasion Resistant (AR400) strips (the strip is in addition to the 3/8, giving a total thickness of 5/8”) that are welded in high volume areas to increase durability and extend the flighting life.

UNLOADING CONTROL

The standard bi-directional downspout allows you to easily move the downspout in and out for precise grain placement. The pivoting vertical auger can be raised when pulling up to the truck and lowered when ready to unload.

For 4-way downspout control, an optional pistol-grip joystick adds the ability to move the downspout left-to-right in addition to in-and-out.

OPERATOR CONVENIENCE

Three high-output LED spotlights located on the unloading auger downspout feature a compact design and durable construction for a convenient day and nighttime operation.

TANK

TANK DESIGN

Models 2020, 1620, 1320 and 1120 feature tank capacities of 2,000, 1,600, 1,300 and 1,100 bushels to meet the largest operation’s demands.

CLEANOUT

The rear, single-point opening for the horizontal floor auger panels permits easy clean out between crops.

HYDRAULIC FLOW GATE

The tank features standard 16" hydraulic flow-control gates over the horizontal floor auger which allows the operator to meter the flow of grain. An easy-to-see indicator on the front of the auger displays how far the flow gates are open.

WEATHERGUARD TARP

A standard weatherguard rollover tarp protects the tank’s contents and features low-profile tarp bows that are reinforced to eliminate sagging.

The heavy-duty, 18 oz. black canvas can withstand harsh weather conditions while the semi-trailer locking design provides optimum protection from high winds and moisture.

TANK STANDARD FEATURES

The ergonomic side-mounted ladder extends away from the grain cart for easy access to the top of the tank.

Three front and one rear shatterproof window make for convenient load checking and the interior tank-mounted LED spotlight allows the operator to easily check the tank’s contents at night.

UNDERCARRIAGE

HEAVY-DUTY CONSTRUCTION

The Unverferth 20-Series dual auger grain cart lineup features industry-leading undercarriage options so you can choose the right undercarriage to meet your operation’s needs. Choose from high-flotation single wheels and tires, walking tandem duals, 50" or 42” wide Equalizer® track systems or a 36” wide traditional track system.

DRIVELINE

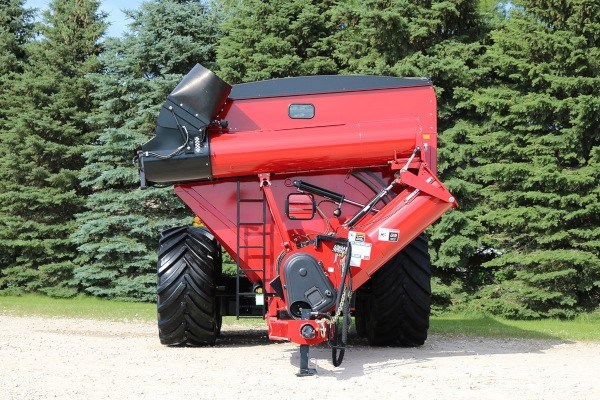

The exclusive driveline design on Unverferth dual auger grain carts combines a belt drive for the 20" horizontal auger and a heavy-duty direct-drive 90-degree gearbox for the vertical unloading auger.

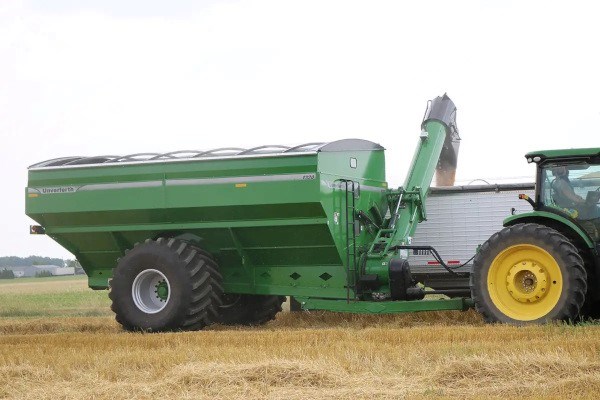

HIGH-FLOTATION SINGLE WHEELS & TIRES

Models 1320 and 1120 are available with high-flotation single wheels and tires with a variety of tire sizes available depending on the model. Model 1320 with single wheels and tires features 12-bolt hubs and model 1120 utilizes 10-bolt hubs. Each hub is manufactured from special alloy, high-strength steel with gusseted reinforcements for trouble-free operation.

WALKING TANDEM DUAL WHEELS & TIRES

Available on models 1320 and 1120, the innovative walking tandem design allows the cart to trail easily through the field and features independent operation from front to rear, allowing the cart to "walk" over obstacles. The tires can be adjusted for 30" or 36" row spacings and the entire wheel assembly swings out for easier tire/wheel maintenance.

IN-LINE FIXED TANDEM WHEELS & TIRES

Models 2020 and 1620 can be equipped with an oscillating in-line tandem undercarriage for an economical design that provides high-flotation for reduced compaction. All fixed in-line tandem undercarriages utilize 12-bolt hubs while the 2020 model features 1050/50x32 tires and model 1620 features 900/60x32 tires.

Optional 4-wheel hydraulic disc brakes for model 2020 fixed in-line tandem undercarriage are available for enhanced towing safety.

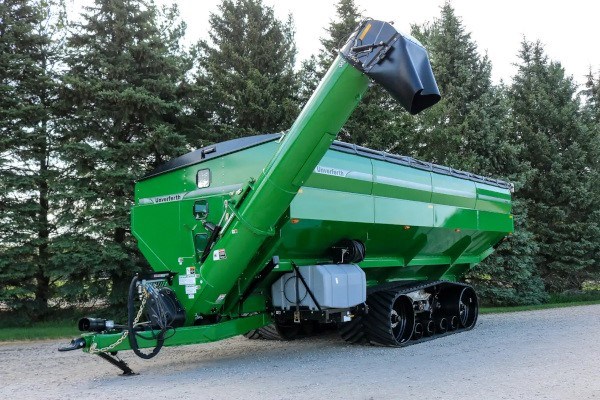

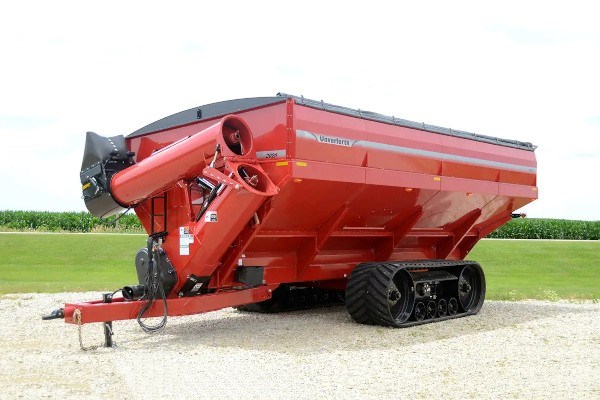

36” WIDE TRADITIONAL TRACK

The 36" wide track belt with 105” of ground contact length features a 4-bogie design and is available on all models. Model 1120 model can be equipped with a 2-bogie track with 87” of ground contact length.

40" end-wheels feature 10-bolt hubs that are greaseable with triple-lip seals and a steel guard for optimum lubrication. Purgeable grease hubs ensure the operator can “purge or push” out any dirt and debris from the hub, increasing the life and eliminating down time.

50" AND 42" WIDE TRACKS

The 50" wide Equalizer® track features 105" of ground contact length with a 4-bogie design and is only offered as an option on model 2020. The 42" wide track belt with 105” of ground contact length and a 4-bogie design is available on models 2020, 1620 and 1320. Models 1320 and 1120 can be equipped with a 2-bogie Equalizer track with 87” of ground contact length.
