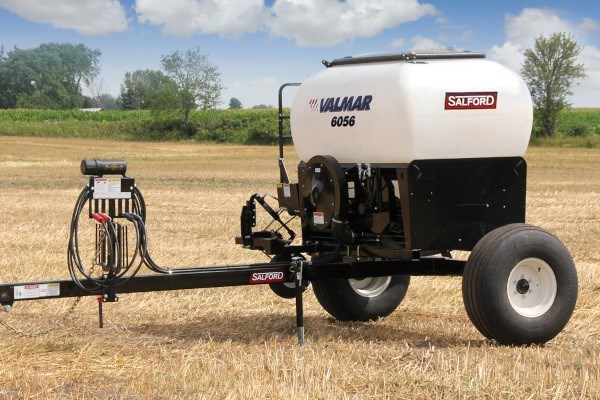

Salford 6056 Applicator
Features
Salford’s Valmar 56 Series implement-mount units are designed for commercial and farm use. Its durable design and rugged construction make this applicator the go-to choice for seeding cover crops or granular herbicide application. Engineered with polyurethane tanks for simple clean out and greater longevity with a wider range of products, the 56 Series delivers unparalleled accuracy across a wide variety of ground conditions. The innovative design incorporates a number of features to make granular application easier, safer, and more precise than ever.
MULTIPLE MOUNTING OPTIONS FOR USE WITH ANY IMPLEMENT
The Valmar 56 Series features multiple mounting options which allow it to be used with a wide variety of implements. The 3-point hitch mount uses an integrated drawbar rated for either 350 or 600 HP. The tow-behind option is designed to be a safer, operator-friendly option, allowing operators to easily fill and calibrate the 56 Series without having to climb over the implement’s frame. The applicator itself has a platform for easy access to the hopper and a ladder that folds away while in operation. Both the 3-point hitch mount and the tow-behind options eliminate the need for implement specific mounting brackets and hardware, making the 56 Series instantly compatible with virtually any implement.
ACCURATE METERING SYSTEM
The metering system on the Valmar 6056 Series features 2 metering rollers which can be fitted with either a 28 groove or 12 groove rollers to provide a wide range of application rates with a wide range of products including granular herbicides, fertilizers, and cover crop seeds. These rollers feed either 24 or 32 outlets (depending on option selected), which allows for use on implements up to 90 feet wide. Equipped with magnetic clutches, the metering system on the 56 Series allows for left hand / right hand control with an in-cab control unit. The ground-driven metering system option uses a 60-speed gearbox that ensures an accurate application rate regardless of ground speed. The 56 Series may also be connected to a third-party ISOBUS control unit to allow for use of variable rate and prescription application.
SIMPLE CALIBRATION FOR MAXIMUM ACCURACY
Calibrating an applicator is necessary to ensure proper flow rates, especially when determining the settings for new products or various sizes of seed and seed mixtures. The 56 Series applicators make this process easier by allowing the Venturi and manifold system to be dropped so that a funnel tray can be inserted for easy collection of product. Operators can use the crank handle to simulate ground travel and establish precise calibration of any product. This also makes emptying the hopper an easy and safe procedure.
SEED, FERTILIZER, HERBICIDE
The 56 series granular metering system accurately and gently handles seed, fertilizer and or herbicide, at a wide range of application rates. These machines are ideal for seeding cover crops, low rate herbicide application. The 56 series stainless steel and plastic metering components standup to fertilizer without any risk of corrosion.
Series | Valmar |
Size | 60 cu-ft |
Product type | Granular Applicators |
Model Name Short | 6056 |
Model Name Long | 6056 SERIES IMPLEMENT MOUNT APPLICATOR |
Materials Spread
Fertilizer | Yes |
AG Lime | No |
Litter | No |
Organics | No |
Seed | Yes |
Other | Granular Herbicide, Innoculant |
Number of products applied, including optional hopper compartments | 1 |
Detailed Equipment Specifications
Paint | Black |
Hitch | Standard: Implement mount applicator. Custom mounting may be required Optional: Applicator Mounted On “Chariot” Pull-Type Cart Optional: Applicator Mounted 3-Point Hitch With Integrated Implement 350 HP Drawbar Optional: Applicator Mounted 3-Point Hitch With Integrated Implement 600 HP Drawbar |
Jack | Included with "Chariot" Pull-Type Cart |
Tarp | Weather tight plastic lid |
Tail Light | Optional: Lighting kit for “Chariot” Pull-Type Cart |
Height | 64" |
Weight | 1,500 lbs |
Hopper
Hopper Size | 60 cubic feet |
Hopper Material | Poly hopper, black frame |
Hopper Extensions | N/A |
Hopper Gate Control | Manual open/close |
Hopper Ladder | Optional: ladder and platform included with “Chariot” Pull-Type Cart |
Hopper "Inverted V" | Optional Agitator |
Hopper Sight Window | Poly hopper is translucent allowing the operator to see level of material inside |
Metering and Drive
PTO Drive | N/A |
Material Distribution Booms/Spinners/Air Line | Two section 304 Stainless steel metering system with metering rollers 16 outlets |
Application Swath Width | 32-80 feet |
Material Distribution Drive | 18 inch fan with hydraulic motor & check valve |
Metering Drive | Option: Ground driven metering and 60 speed gearbox provide 5% difference between settings Option: Hydraulic metering drive |
Primary Metering | Two section 304 Stainless steel metering system with metering rollers Choice of 24 or 32 outlets Includes one set of meter rollers – 28-groove red meter roll or 12-groove grey meter roll |
Primary Metering Minimum Output Rate | - |
Primary Metering Maximum Output Rate | - |
Secondary Metering | N/A |
Secondary Metering Minimum Output Rate | - |
Secondary Metering Maximum Output Rate | - |
Material Banding or Section Control | Two section metering with magnetic clutches for left/right section control |
Tires and Axles
Axle | - |
Tire and Wheel Options | - |
Monitoring and Precision Control
Monitors Options and Rate Control | - |
Weigh System Option | - |
