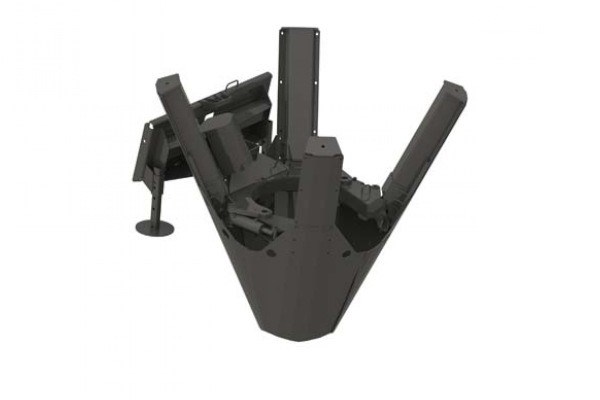

Paladin Attachment 4425

Available in three series: 15-degree truncated series with undercutter; 25-degree modified truncated series; 30-degree cone model
Standard electric control joystick to function the hydraulic valve
Overlapping blades to clean cut roots
Adjustable legs slide to control ball depth
Wide gate opening to engage tree easily

Model	4425
Overall Height - blades up (open)	64.5”
Overall Height - blades down (closed)	69”
Shipping Height - blades removed	38”
Frame Height	22.5”
Digging Depth	31”
Cutting Angle	25°
Overall Transport Width (gate closed)	63”
Overall Width (gate open)	107”
Maximum Gate Opening	33”
Overall Length (gate open)	68”
Overall Transport Length (gate closed)	69.5”
Number of Blades	4
Ball Diameters available	32” - 44”
Tree Diameter (trunk caliper)	3” - 4.5”
Ball Weight (lbs)	1200 - 1500
Flow Requirements (GPM)	10
Minimum Operating Pressure	2250
Weight (with blades) lbs	1875

Other Models

*Please contact a representative for more information.

Model	3215
Overall Height - blades up (open)	60”
Overall Height - blades down (closed)	61”
Shipping Height - blades removed	37”
Frame Height	29.5”
Digging Depth	24”
Cutting Angle	15°
Overall Transport Width (gate closed)	68”
Overall Width (gate open)	81”
Maximum Gate Opening	41”
Overall Length (gate open)	61.5”
Overall Transport Length (gate closed)	51.5”
Number of Blades	4
Blade Sizes (ball diameter)	20”, 24”, 28”, 32”
Tree Diameter (trunk caliper)	2” - 3.5”
Ball Weight (lbs)	260 - 850
Flow Requirements (GPM)	10
Minimum Operating Pressure	2250
Weight (with blades) lbs	1490

Model	4415
Overall Height - blades up (open)	72”
Overall Height - blades down (closed)	76.25”
Shipping Height - blades removed	44.38”
Frame Height	29.5”
Digging Depth	32”
Cutting Angle	15°
Overall Transport Width (gate closed)	76.25”
Overall Width (gate open)	87”
Maximum Gate Opening	44”
Overall Length (gate open)	94.25”
Overall Transport Length (gate closed)	76”
Number of Blades	5
Blade Sizes (ball diameter)	32”, 36”, 40”, 44”
Tree Diameter (trunk caliper)	3” - 4.5”
Ball Weight (lbs)	870 - 2035
Flow Requirements (GPM)	10
Minimum Operating Pressure	2250
Weight (with blades) lbs	2635

Model	2625
Overall Height - blades up (open)	48”
Overall Height - blades down (closed)	52”
Shipping Height - blades removed	32”
Frame Height	22.5”
Digging Depth	22”
Cutting Angle	25°
Overall Transport Width (gate closed)	56”
Overall Width (gate open)	76”
Maximum Gate Opening	30”
Overall Length (gate open)	52”
Overall Transport Length (gate closed)	60”
Number of Blades	3
Ball Diameters available	18” - 26”
Tree Diameter (trunk caliper)	1.5” - 2.5”
Ball Weight (lbs)	150 - 350
Flow Requirements (GPM)	10
Minimum Operating Pressure	2250
Weight (with blades) lbs	1150

Model	3625
Overall Height - blades up (open)	64.5”
Overall Height - blades down (closed)	69”
Shipping Height - blades removed	38”
Frame Height	22.5”
Digging Depth	31”
Cutting Angle	25°
Overall Transport Width (gate closed)	66”
Overall Width (gate open)	88.5”
Maximum Gate Opening	40”
Overall Length (gate open)	75”
Overall Transport Length (gate closed)	68”
Number of Blades	3
Ball Diameters available	24” - 36”
Tree Diameter (trunk caliper)	2” - 3.5”
Ball Weight (lbs)	250 - 1000
Flow Requirements (GPM)	10
Minimum Operating Pressure	2250
Weight (with blades) lbs	1550

Model	2030
Overall Height - blades up (open)	42.25”
Overall Height - blades down (closed)	44.51”
Shipping Height - blades removed	37”
Frame Height	14.75”
Digging Depth	16.13”
Cutting Angle	30°
Overall Transport Width (gate closed)	45.5”
Overall Width (gate open)	59.5”
Maximum Gate Opening	26”
Overall Length (gate open)	49”
Overall Transport Length (gate closed)	53.5”
Maximum Leg Adjustment	6”
Gate Swing	45°
Number of Blades	3
Ball Diameters Available	16” - 20”
Tree Diameter (trunk caliper)	1” - 1.5”
Ball Weight (lbs)	80 - 120
Flow Requirements (GPM)	6
Minimum Operating Pressure	2000
Weight (with blades) lbs	525

4425
