Meyer Farm Equipment 8222RT
Features

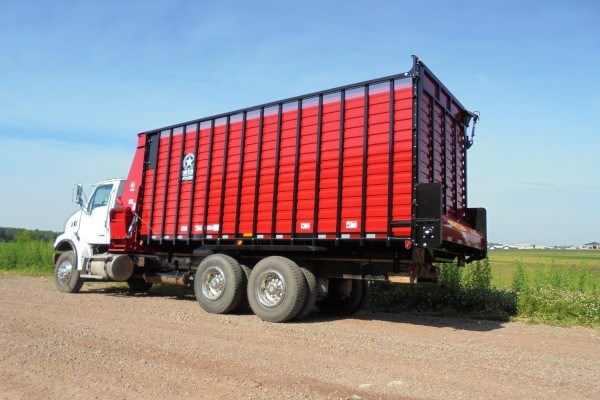

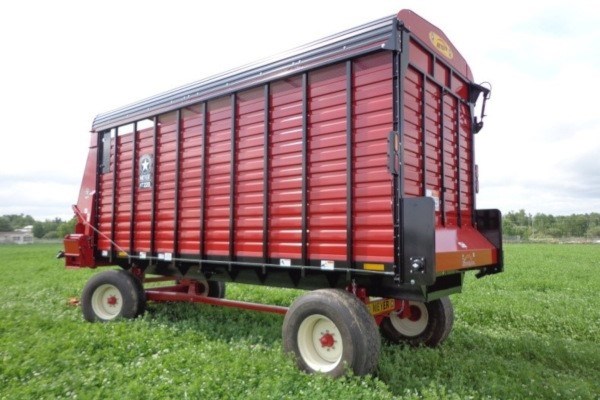

- Truck - Trailer (Chassis) - Wagon Mount options
- Full 8' interior width - the widest in the industry! Massive steel frame on 16" centers. High quality Urethane finish frame (red standard / black optional)
- Solid Poly Floor - high molecular virgin poly (no regrind)!
- Clad-Tuff fiberglass side panels standard. Easy clean up / good looks / allows for hauling of cured silage without corrosion.
- Deluxe, hydraulic cab-controlled front drive system standard - Independent controls on all functions. All from the perch of your truck or tractor! (30 GPM minimum required flow)
- RT Bevel Gear drive / no worm gears or chain reductions on front discharge. Simple 3 motor hyd drive reduces maintenance too.
- Strong 2" drive shafts front & rear, machined steel sprockets - not cast! Large diameter nylatron bearings hold more grease and last longer.
- HD splined coupler allows performs the front to rear unload drive conversion (rear drive pictured).
- 18" diameter drum augers in a tapered formation deliver a smooth flow of crop to the discharge conveyor.
- 14" side extension pkg available (solid or mesh). This package includes a 4th beater to maximize discharge quality in heaped loads!
- 24" wide cross conveyor - 81X extreme duty chain & poly conveyor floor! 24" hyd fold-down extension standard / 36" fold-down optional.
- Rear Unload System features dual drive for big loads - pulls from both sides
- Top Pivot Door with the patented Meyer Gate Delay System standard. Turn it on / Turn it off - no assistance needed! Door latches securely into drive shaft.
- LED turn signal lighting standard. Marker & clearance lights w/DOT tape package available
- Electric front to rear or side to side tarps available. (Require front enclosure)
- Scale packages available for truck, trailer chassis or wagon mount units.
| DIMENSIONS | 8222RT |
| Inside Length | 22' |
| Inside Width | 97" |
| Inside Height - no extension | 72" |
| Inside Height w/14" extension | 85.5" |
| Overall Length | 27'1" |
| Overall Width w/ Convey. Ext | 119" |
| Overall Width w/o Convey. Ext | 117" |
| Overall Height - no extension (top of gate)* | 103.5" |
| Overall Height w/ 14" extension (top of gate)* | 115.5" |
| Overall Side Height - no ext. / with ext.* | 88.25/102" |
| Stringer Width (Truck/Trailer Mount) | 33.5" |
| Capacity (struck level) Cu. Ft. - w/o ext. | 1075 |
| Capacity (struck level) Cu. Ft. - w14" ext. | 1280 |
| SPECIFICATIONS | |
| Maximum Net Load (off road rating) | 25 ton |
| Apron Chains (Pintle) | 667XH |
| Cross Conveyor Apron Chain | HD81X |
| Rear Drive Shaft | 2-3/8" HD SOLID SHAFT |
| Front Hydraulic Direct Geardrive | Standard |
| Rear Unload Power Source | Dual #120 |
| Upright Spacing | 16" on Cntr |
| Upright / Cross member Construction | 2x2 Tubing |
| Rear Unloading Time (Dependent of Hyd. System) | 50 sec. |
| FEATURES | |
| Clad-Tuff Fiberglass Woven Side Panels | Standard |
| Solid Poly Floor - High Molecular | Standard |
| Rear Gate Delay System *new RT design!! | Standard |
| Automatic Rear Door Unlatch / Latch | Standard |
| Hydraulic Drive | Standard |
| Rear Transport Lights - LED (new location) | Standard |
| Marker/Clearance Lights (LED) & D.O.T. Tape | Optional |

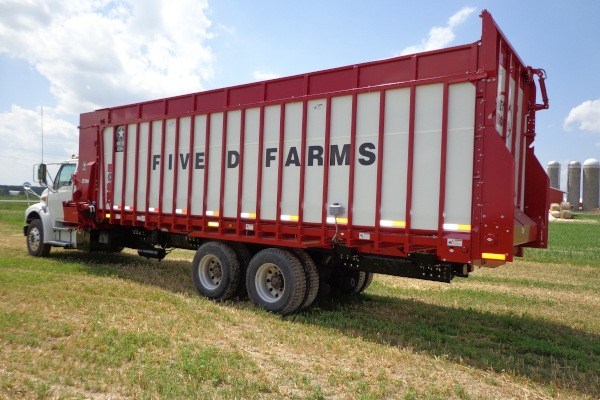

| Personalized Farm Name on Sides | Standard |
| OPTIONS | |
| 14" Removable Side Extension (screen or solid) | Optional |
| +includes 4th beater assembly | |
| Double Center Opening Doors Hyd./Air (Barn Doors) | N/A |
| Grain Kit / Quick Attach for Top Pivot Door | N/A |
| Grain Kit / Quick Attach for Barn Door Gate | N/A |
| Side-mtd, LED Turn Signals in addition to std | Optional |
| Side Hood Deflector/backstop (RH side) | Optional |
| Black paint in lieu of Red | Optional |
| Truck Mount Kit w/ Steel Fenders | Optional |
| Factory Install of Truck Mount Kit | Optional |
| Wagon/Trailer Mount Kit | Optional |
| Front Enclosure | Optional |
| TARP SYSTEMS | |
| Front to Back Scissor Tarp (electric) | Optional |
| Side-to-Side Roll Tarp (electric) | Optional |
| *Height measurements - Straight Truck Mounted Units require hardware which adds approximately 1.5" to height listed above | |
