Meyer Farm Equipment XT1600 Tandem Trailer / Oscillating Axles - 16 Ton
Features
- Tubular hitch with adjustable clevis standard
The XT1600 features a 4x8 tubular hitch assembly with heavy square jack and adjustable clevis hitch system. - HD Tube Frame
3x6 Tubular Frame structure of the XT1600 handles the load. This unit is available in 2 different bed lengths to handle your application. - Feeder box Application

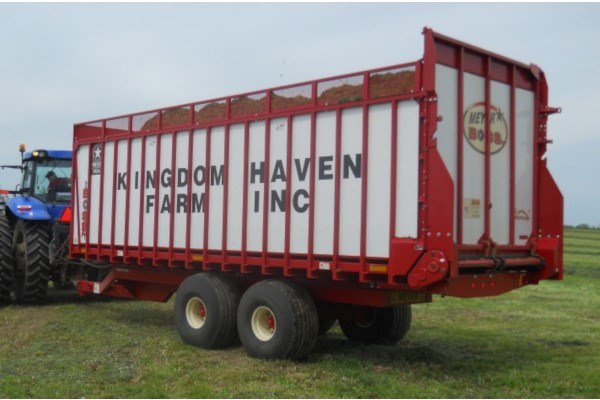

XT1600 Tandem Trailers are commonly sold in combination with 14, 16 and 18' feeder boxes but are available for other applications as well. - Riser Package
Depending on tire size, a riser kit is available to achieve necessary tire clearance in some applications. Generally tires larger than 14Lx16.1 will require a riser in with any type of forage box or flatbed installed. - Tire Options
Choose from 12.5Lx15, 14Lx16.1, 16.5Lx16.1, 19Lx16.1, 11Rx22.5 or 425/65x22.5 tire/rim packages. - Tandem Axle System
XT1600 Tandem Axle System features 60/40 offset, HD pivot system, 3" spindles and 8 bolt-8,000# hubs! - Scale Packages
5 point scale package is available for this tandem trailer (hitch weigh bar pictured)
| Model | XT1600 162 | XT1600-L 202 |
| Style | Tandem O-Beam | Tandem O-Beam |
| Capacity | 32,000 lbs. | 32,000 lbs. |
| Tread Width | ||
| Spindle Size | 3" | 3" |
| Heavy Duty Hubs | 8 Bolt 8000# at 10 MPH | 8 Bolt 8000# at 10 MPH |
| Frame Design | 3x6x1/4" Tubing | 3x6x1/4" Tubing |
| Weight | 3145# w/riser w/425/65x22.5 | 3240# w/riser w/425/65x22.5 |
| Overall Length | 20' 8.5" | 24' |
| Bed Length | 13' 7" | 16' 10.5 |
| Overall Width | ||
| Bed Width | 42" | 42" |
| Stake Spacing | 42" | 42" |
| Bed Height | ||
| Adj. Clevis Hitch | Standard | Standard |
| Options | ||
| Surge Brakes | N/A | N/A |
| Swivel Clevis Hitch | N/A | N/A |
| 4" Riser Package | Optional Req. for 16.5L, 19L or 425/65 | Optional Req. for 16.5L, 19L or 425/65 |
