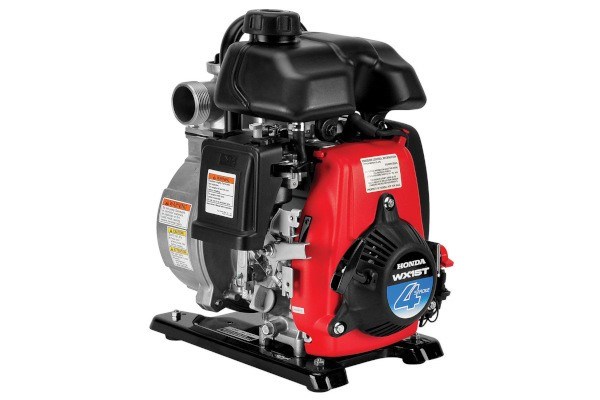

Honda Power Equipment WX15
Features
Perfect for homeowners, gardeners, boat owners, and more
The WX15 is lightweight, compact, and easy to use.
Easy starting Honda mini 4-stroke commercial engine
The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
Lightweight aluminum pump
At only 20 lbs., the WX15 is easily portable.
Hose clamps and strainer included
Standard transport handle
The WX15 is easy to carry wherever you need it.
74 gal./min capacity
Protected by Honda Oil Alert®
Protects the pump by shutting the engine off when low oil is detected.
| Engine | GXH50 |
| Displacement | 49cc |
| Bore and stroke | 1.65" x 1.42" |
| Compression Ratio | 8.0:1 |
| Oil Alert | Std |
| Pump type | General purpose Centrifugal Self-priming |
| Volute | Aluminum |
| Impeller | Aluminum |
| Mechanical Seal (Pump case / impeller) | Carbon/Ceramic |
| Priming time | 120 sec. at 16.4 ft. |
| Drive system | Direct |
| Discharge capacity | 74 gal/min |
| Suction port diameter | 1.5" NPT |
| Discharge port diameter | 1.5" NPT |
| Total head lift | 121 ft. |
| Suction head lift | 26 ft. |
| Maximum pressure | 52 psi |
| Solids handling | N/A |
| Dimensions (LxWxH) | 14.0"x10.8"x14.8" |
| Dry weight | 20 lb. |
| Fuel Capacity | 0.20 gal |
| Run Time @ Max Discharge | 0.9 hr |
| Strainer Part # | 78325-YB0-751 |
