Hardi 5000 Liters
Features
In front of the field

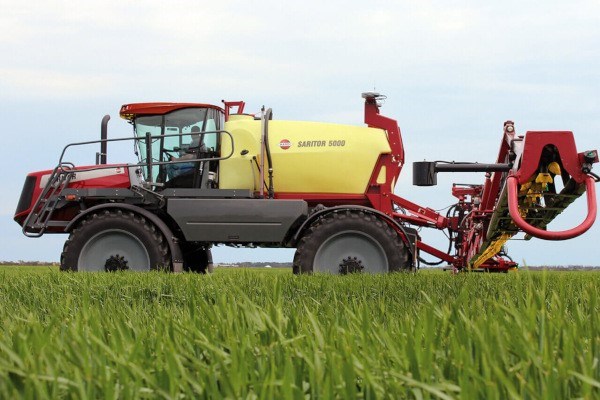

The SARITOR with infinitely variable four-wheel drive hydrostatic transmission delivers the traction to stay in front of the sprayer range.
SARITOR is HARDI-built from the ground up and sets new standards in broad acre spraying. It offers a 1,300 gal. tank capacity with 88 - 132 ft. TERRA FORCE BOOM or an ALU FORCE 120 - 132 ft. option.
Crop clearance is 54 in., and the track width can be hydraulically adjusted from 120 - 157.5 in. providing a large stable platform for boom stability.
SprayCenter
Everything you need is at your finger tips. All managed through the HC 9600 display and SprayCenter control console. Spraying has never been easier.
The joystick combines the hydrostatic drive and vital spraying control functions. Forward, reverse and braking are operated by pushing forward or pulling back on the joystick. Spray ON/OFF, section control, boom height and wing tilt functions are also managed from the joystick.
All the secondary control functions are managed from the SprayCenter.
Ride, clearance and track width
SARITOR delivers exceptional ride comfort and boom performance with the help of four large air bag suspension elements assisted by hydraulic shock absorbers.
The under chassis crop clearance is 54 in. and the track width is hydraulically adjusted from 120 - 157.5 in. At 157.5 in. wide track provides an exceptionally stable platform enhancing boom ride and performance.
Each wheel axle can be hydraulically adjusted independent on the others providing for the opportunity to run the front and rear at different track widths if required.
TERRA FORCE boom
Built strong utilising heavy-duty threedimensional truss construction for high performance and is available in sizes 88 - 132 ft.
The TERRA FORCE truss boom design is able to withstand incredible yaw forces created during cornering, accelerating, braking and auto steering. These forces are absorbed through a hydraulically dampened parallelogram suspension system.
With on-the-go stability control the dynamic boom center can be set from the cab to suit the operating condition.
ALU FORCE boom
120 - 132ft.
| Tank | 1,300 gal. (5000 ltrs) |
| Tank | 1,300 gal. (5,000 liters) |
| Pumps - type | Ace 650 run-dry centrifugal |
| Pump capacity | 180 gpm. (680 liters) |
| Boom type | TERRA FORCE or ALU FORCE |
| Boom width TERRA FORCE TDZ | 88 - 132 ft. (26.8 - 40 m) |
| Boom width ALU FORCE TR5 | 120 - 132 ft. (36.6 - 40 m) |
| Controller | HC 9600 |
| Engine | Cummins QSB 6.7 L 275 hp |
| Fuel tank capacity | 145 gal. (550 ltrs) |
| Transmission | 4-WD Danfoss Hydrostatic H1 |
| Suspension | Pneumatic suspension + shock absorbers |
| Steering | 2-wheel steering |
| Track adjustment | 120 to 157.5 in. (3 to 4 m) hydraulic |
| Turning circle (curb to curb) | 67 ft. (20.5 m) |
| Transport speed | 35 mph (55 km/h) |
| Weight (empty) w/ 120 ft. TDZ | 30,250 lbs. (13,721 kg) |
| Total length | 374 in. (9.5 m) |
| Total transport height w / wheels set 380/90 R50 | 156.5 in. (3.96 m) |
| Width with TERRA FORCE | 169.5 in (4.3 m) |
| Track width w / wheels set 380/90 R50 | 120 to 157.5 in. (3.05 to 4 m) |
| Wheel base | 168 in. (4.26 m) |
| Clearance w / wheels set 380/90 R50 | 54 in. (1.37 m) |
| RinseTank | 135 gal (510 ltrs) |
| CleanWater tank | 8 gal. (30 ltrs) |
| Storage locker | 19 cu/ft. (500 ltrs) |
