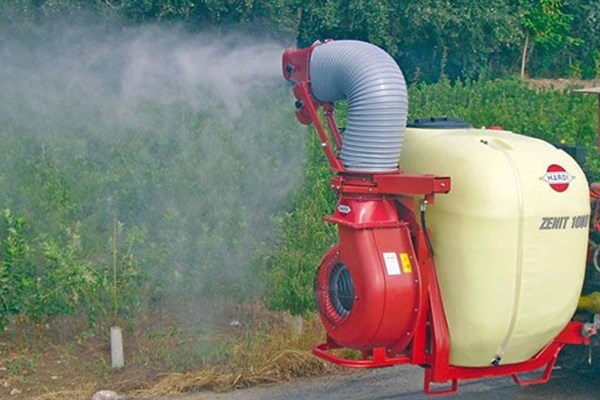

L-Spout

• Available with ZENIT, ARROW & MERCURY vine mistblowers
• Hydraulically operated spout.
• Vertical movement: -10 to +80 degrees.
• Horizontal movement: 180 degrees.
• 4 BI-JET and 3 adjustable nozzle holders.
• Working distance: 20 m horizontal, 15 m vertical. / 11.000 m3/h.
• Suitable for treatments in tall trees, such as walnut and avocadoes, as well as for forest and urban tree cultures.
• Single sided 540 mm centrifugal blower with centrifugal clutch.
• Synthetic fan housing. Two speed gear box with neutral position.

M-Spout

• Available with ZENIT, ARROW & MERCURY vine mistblowers
• Hydraulically operated spout.
• Vertical movement: -10 to +80 degrees.
• Horizontal movement: 180 degrees.
• 10 + 3+ 3 single nozzle holders.
• Working distance: 20 m horizontal, 12 m vertical / 19.000 m3/h.
• Suitable for treatments in tall trees, such as walnut and avocadoes, as well as for forest and urban tree cultures.
• Double sided 540 mm centrifugal blower with centrifugal clutch.
• Synthetic fan housing.
• Two speed gear box with neutral position.

T-Spout

• Available with ZENIT, ARROW & MERCURY vine mistblowers
• Hydraulically operated spout.
• Vertical movement: -10 to +80 degrees.
• Horizontal movement: 180 degrees.
• 7 TRI-JET and 3 adjustable nozzle holders.
• Working distance: 30 m horizontal, 20 m vertical / 19.000 m3/h.
• Suitable for treatments in tall trees, such as walnut and avocadoes, as well as for forest and urban tree cultures.
• Double sided 540 mm centrifugal blower with centrifugal clutch.
• Synthetic fan housing.
• Two speed gear box with neutral position.

H-Spout

• Available with ZENIT, ARROW & MERCURY vine mistblowers
• Hydraulically, vertically operated spout.
• 9 TRI-JET and 3 adjustable nozzle holders.
• Working distance: 35 m horizontal, 20 m vertical / 19.000 m3/h.
• Suitable for treatments in green houses, vegetable fields and other relatively low crops.
• Double sided 540 mm centrifugal blower with centrifugal clutch.
• Synthetic fan housing and steel spout.
• One speed gear box with neutral position.

J-Spout

• Available with ZENIT vine mistblowers
• Hydraulically operated spout.
• Vertical movement: -10 to +80 degrees.
• Horizontal movement: 180 degrees.
• 7 TRI-JET and 3 adjustable nozzle holders.
• Working distance: 30 m horizontal, 30 m vertical / 19.000 m3/h.
• Suitable for treatments in tall trees, such as walnut and avocadoes, as well as for forest and urban tree cultures.
• Double sided 540 mm centrifugal blower with centrifugal clutch.
• Synthetic fan housing.
• Two speed gear box with neutral position.
