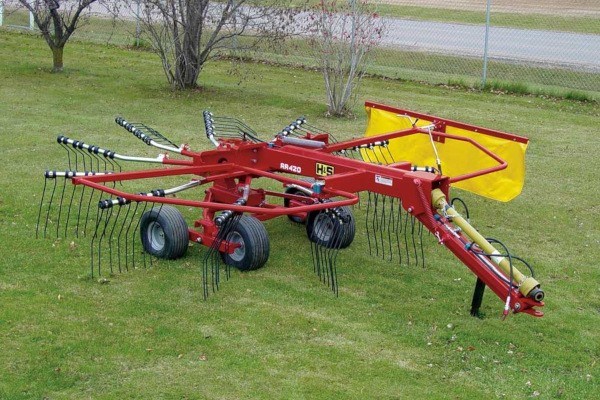

H&S RR420 11-Arm Rotary Rake
Features
- The adjustable front cylinder allows users to fine tune pitch the rake.
- A constant velocity P.T.O. with slip clutch lets the operator make even, uniform windows even in tight corners.
- Tine arm storage.
- Sealed oil bath gearbox.
- Hydraulic lift cylinder.
- Tandem axle walking beam with 18x8.5x8 tires.
- Ground height adjustment.
- Adjustable swath shield.
- Quick remove tine arms.
| R420 | |
| NUMBER OF ARMS | 11 |
| NUMBER OF DOUBLE TINES PER ARM | 4 |
| WORKING WIDTH | 13′ 8″ |
| GEAR BOX | Sealed in Oil Bath |
| ROTOR DIAMETER (WORKING WIDTH) | 11′ 2″ |
| TRANSPORT WIDTH | 5′ 9″ |
| PTO DRIVELINE WITH SLIP CLUTCH | 540 rpm Constant Velocity Overload Protects Gearbox |
| TIRES | 4 Mounted On Tandem Axles 18X8.5x8 |
| HP REQUIRED | 30/45 |
| WEIGHT | 1369 lbs |
