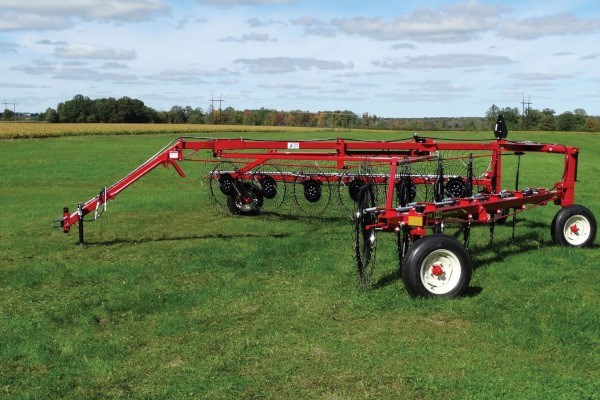

• The H&S HC4112 HI-CAPACITY wheel rake has the raking wheels positioned ahead of the rake arms, main frame beams, and transport wheels.
• With a high and wide rear frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
• The windrow width adjustment is done with a hand crank and adjusts windrows from 38″ to 58″ width.
• Independent articulated rake beams have the flexibility to flex 3′ up or 3′ down.
• Raking widths can be hydraulically adjusted in any position to a pre-determined raking width up to 24′
• The HI-CAPACITY rake opens and closes hydraulically, rake wheels are lowered and raised hydraulically, and the rake wheels float independently.
• The HC4112 folds up to 8′ 6″ or less with the touch of a lever for road transport or to go through gates.
• A single point rake wheel down pressure adjustment on each rake beam allows the operator to fine tune the rake to fit varying conditions.
• An adjustable brake band on top of the front spindle keeps the front gauge wheels from spinning in rough conditions.

Options

• 2-Wheel Center Kicker Assembly w/Hydraulic Lift
• 55″ Rake Wheel Wind Panel Kit - (1) required per wheel
• Rear Tandem w/6.70 x 15 Tires/Rims
• Highway Lighting Kit
• 10,100# Safety Chain
