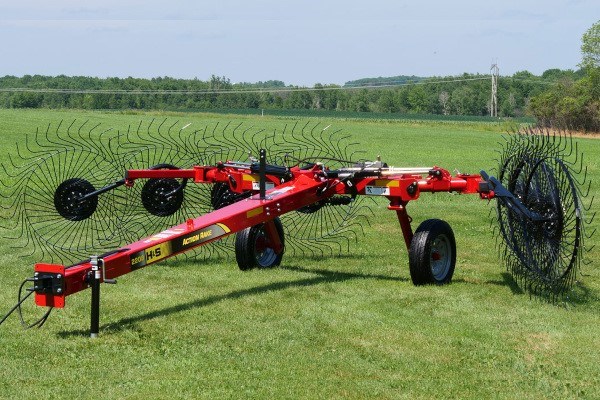

H&S AR2212 Action Rake

New John Deere Equipment / H&S / Rakes / 2200 Series Action / AR2212 Action Rake

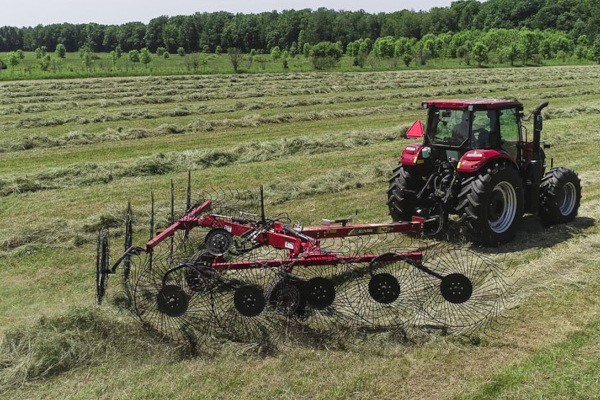

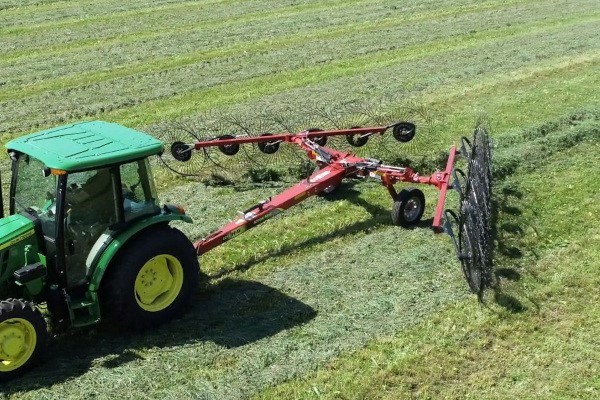

High clearance ACTION rakes have greater clearance in the raking position and more stability during transport than the competition.
The backbone and wing design, when raised, allows the uniform release of crop to finish the windrow.
An adjustable hitch allows you to level the rake for efficient raking.
There are multiple width adjustments on the wheel rake beam for setting the windrow width. Raking width is easily adjusted by a single pin and clip.
The operator can adjust the fine-tune nut to allow proper down pressure on each arm, allowing the 7.5 mm 60″ rake wheels to float smoothly over the ground.

MODEL	AR2212
Rake Wheels
Number of Wheels	12
Wheel Diameter	60″
Teeth Per Wheel	40
Tooth Diameter	7.5mm
Rake Wheel Hubs	Tapered Bearings
Ground Pressure Rake Wheel Adjustment	Adjustable Nut on Rod
Dimensions
Transport Width	12′
Transport Length	21'3"
Raking Width	21' - 24' 4"
Windrow Width Adjustment	2' 10" - 7' 3"
Weight
Standard
Number of Raking Positions	6 Narrow / 6 Wide
Wing Cylinders	2″
Jack	Standard
Tires	ST205/75R15
Tractor Requirements
Required Tractor Hydraulics	2 Hose / 1 Remote
Required Hydraulic PSI	1,875#

AR2212 Action Rake
