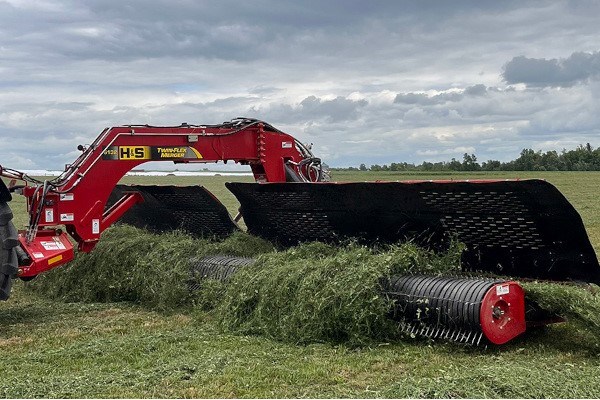

H&S TF6132 - 32'

New John Deere Equipment / H&S / Mergers / Twin-Flex Mergers / TF6132 - 32'

32’ of continuous merging – right, left or split with (2) 16’ independent heads.
ISOBUS ready
H&S patented SOFT-SHOE suspension system reduces field damage from head scuffing.
Patented center cam/center drive design provides smooth, clump-free windrows – NO BUNCHING!
WIDEST cross-conveyor belt in its class at 42″.
The ability to merge (7) 10′ windrows into one in either direction.
Self-contained hydraulic system features a 65-gallon reservoir, coupled with large displacement motors for the heads and cross conveyor, is able to handle HEAVY crops.
Rubber mounted teeth
Highest torque rated hydraulic motors in the industry, coupled with heavy 2-ply cross-conveyor belts.
Cross conveyor belts feature a high torque drive system – The best in the industry!
Heavy-duty 385/65 x 22.5 radial tires that don’t scuff in the field.

Options

MODEL	TF6132
Working Width
Working Width	32'
Dimensions
Transport Width	9' 8"
Transport Length	24′
Transport Height	11' 6"
Features
Pick-up Heads	2 (16')
Head Travel	20" (10" Up & 10" Down)
Pick-up Strippers	Poly
Pick-up Teeth	Rubber Mounted
Cross-Conveyor Belt Width	42"
Cross-Conveyor On/Off/Right/Left/Split	ISOBUS AUX N Compatible or Optional Non-ISOBUS Control Box
Skid Shoe Height	Hydraulic Adjust
Head Suspension	Exclusive SOFT-SHOE Suspension Technology System
3-Point Hitch	CAT II, III, or III-N
Standard
Drive System	3-Section High Volume Pump
PTO	1 3/8" or 1 3/4 1000 RPM Std
Hydraulic Requirements	None - Merger is a Self-Contained System
Auto Default Right-Hand Merge
Capacity
Oil Reservoir Capacity	65 gallon
Tires
Tire Size	385/65 x 22.5 16 PLY Agri-Transport Floatation Implement Radial
Weight
Weight	17,300#
Tractor Requirements
Tractor Size	150 HP Minimum/Heavy Frame
