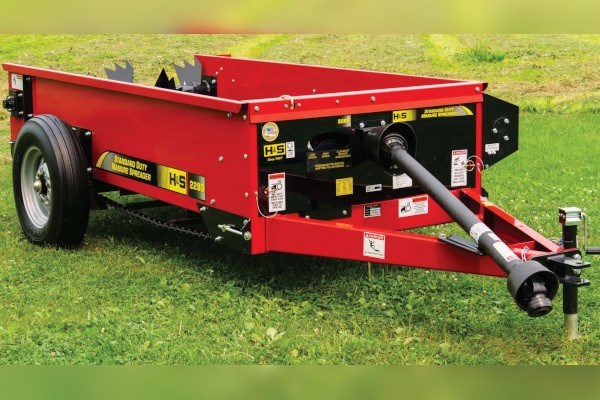

H&S S2280 80-Bushel

New John Deere Equipment / H&S / Manure Spreaders / Standard Duty / S2280 80-Bushel

Heavy-duty steel A-frame and hitch assembly are built to withstand the stress of heavy loads and rough fields.
Heavy-duty 2-speed apron drive system plus beater shut-off for a positive drive and long life.
1-1/4″ drive shaft
A heavy-duty beater assembly ensures aggressive shredding action with wide and even spread patterns.
Spreader box sides are constructed of powder-coated steel.
All spreaders utilize a bonded poly floor to reduce main apron drag and power needed to move the load.
Main apron tightener bolts are located outside on the lower right and left corners of the main frame.

MODEL	S2280
Capacity
Capacity - Old Rating	80 bu
Capacity Cu. Ft. Struck Level Per ASAE S324.2	45.11
Capacity Cu. Ft. Heaped Per ASAE S324.2	74.18
Dimensions
Top of Flare Width	48″ (122 cm)
Inside Width	48″ (122 cm)
Inside Length	7′4″ (223 cm)
Inside Depth	19 ¾″ (50 cm)
Overall Length	13′ 10″ (422 cm)
Overall Loading Height-Top Of Side	35″ (89 cm)
Overall Height w/Hyd. Endgate	N/A
Overall Width w/Standard Tires	76″ (193 cm)
Construction
Standard Tire Size	6.70 x 15
Spindle Size	2″ (5 cm)
Diameter Of Beater	18 ½″ (47 cm)
Number of Paddles	10
Main Apron Chain	67H
Box Construction	Powder Coated Steel
Floor Construction	Poly Bonded
Apron Drive	Gearbox, 2-Speed PTO
Weight w/Tires
Weight w/Tires	1,140 lbs. (517 kg)
Standard
Swing Away Jack	Standard
Options
Upper Beater	N/A

S2280 80-Bushel
