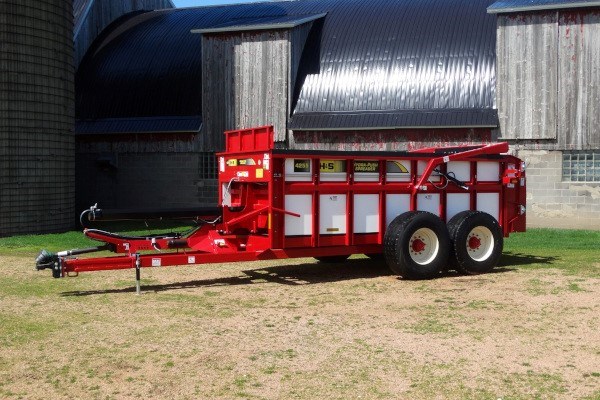

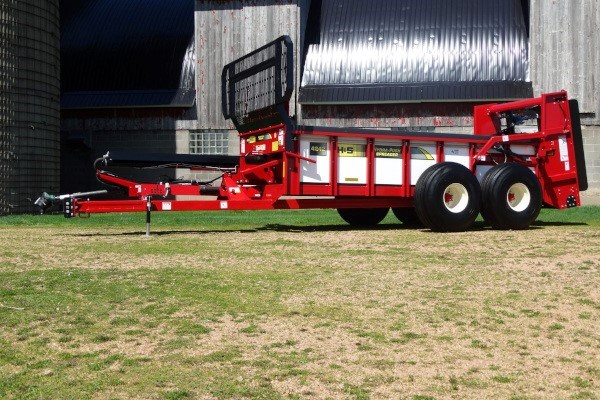

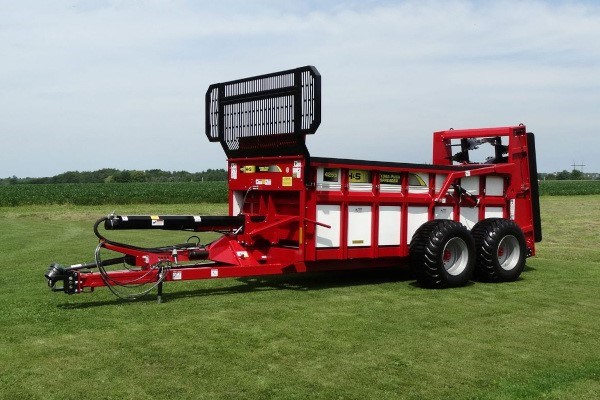

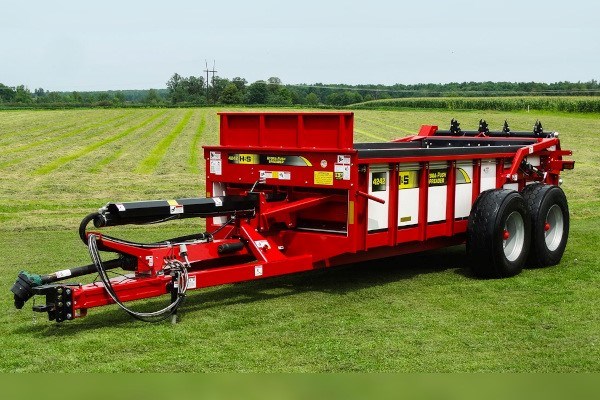

H&S HPH4242 425-Bushel
Features
- All horizontal beater hydraulic push models use solid virgin grade poly with UV inhibitor for the floor and sides, allowing less friction.
- The hydraulic endgate has two cylinders with ⅜″ hose and pipe for faster operation in cold weather.
- Heavy-duty rectangular tubing is used for the pole to ensure strength and long life.
- Structural channel floor supports are spaced 9 ½″ apart are used for maximum floor strength.
- Driveline protection is provided by a constant velocity PTO and straight shaft under the spreader connect to the rear mount angle gearbox, over to the beater drive sprocket and then to the beater assembly.
- The hydraulic push-off system on all models features two hydraulic cylinders that sequence to reduce push-off forces for fast unloading of material.
- Beater blades are replaceable.
- Beater assembly is removable for stockpiling manure.
- Removal of the beater assembly is done by simply removing the mounting bolts and removing the drive chain to the beater assembly.
- Choice of bullnose or clevis hitch
- Poly bump rails
- LED highway lighting
| MODEL | HPH4242 |
| Capacity | |
| Capacity - Old Rating | 425 bu |
| Capacity - Cu. Ft Struck Level Per ASAE S324.2 | 246.53 |
| Capacity Cu. Ft. Heaped Per ASAE S324.2 | 374.41 |
| Height | |
| Side Loading Height | 61 ¼″ (61.3 cm) |
| 2nd Beater Height | 74 ¾" (190 cm) |
| Vertical Beater Height | - |
| Height - Top of Hyd. Endgate | 65″ (165 cm) |
| Height at Top of Pusher | 76″ (193 cm) |
| Height - Top of Screen | - |
| Dimensions | |
| Inside Width | 72″ (183 cm) |
| Inside Length | 15′ (4.6 m) |
| Inside Depth | 34″ (86 cm) |
| Overall Width w/Tires | 10′ 2″ (310 cm) |
| Overall Length | 28′ (8.5 m) |
| Construction | |
| Standard Number of Beaters | 2 |
| Horizontal Beater Diameter/Lower | 29″ (71 cm) |
| Horizontal Beater Diameter/Upper | 20″ (51 cm) |
| Vertical Beater Diameter | - |
| Replaceable Beater Paddles | Yes |
| Removeable Beater Assembly | Yes |
| Hub | 8 Bolt |
| Hitch Choices | Clevis or Bullnose |
| Tire Choices | 425 x 22.5, 19L x 16.1 10 Ply, or 550/45 x 22.5 |
| Hydraulic Endgate | Standard |
| Poly Side Rails | Standard |
| PTO Choices | 1 ⅜" or 1 ¾" 1000 RPM PTO w/Overrunning Clutch |
| Hydraulic | |
| Hydraulic Push Cylinder Diameter | 3 ½″ |
| Weight w/Tires | |
| Weight w/Tires | 7,000 lbs. |
| Standard | |
| Rear Hydraulic Endgate | Standard |
