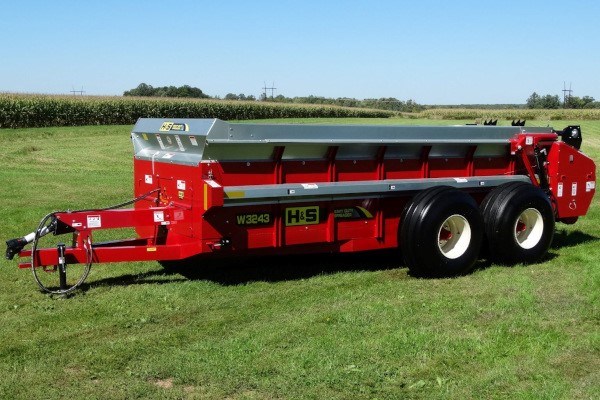

H&S SW3243 430-Bushel
Features
- The heavy-duty series of H&S manure spreaders feature a massive unitized welded frame with heavy floor supports, side stakes, and wrap-around steel front corners.
- Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5″ U-channel side members. Compares with any on the market.
- The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
- Sides, front panel and both sides of the rear hydraulic endgate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze-up.
- The solid virgin grade poly floor allows for considerably less torque to move a heavy load.
- The two-speed apron drive is standard equipment.
- The 29″ diameter beater has two styles of replaceable beater paddles. Half of the 14-beater paddles are blunt for widespread, and the other half are a sharp ripper-type for cutting and shredding. Beater side wiper blades are also standard equipment.
- The hydraulic endgate features 2 cylinders with hydraulic lines running through a 3″ x 3″ tube under the floor for protection. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
- Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
- Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
- The beater drive gear box is 1:1.5 bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut-off.
- The apron drive is a 50:1 bronze worm gear with shear bolt protection.
- PTO Apron Low-Speed/540 RPMs: 4′ 8.5″ per minute.
- PTO Apron High-Speed/540 RPMs: 8′ 8.5″ per minute
- The top beater provides load leveling and spreading of high heaped loads.
- The SW3243 (western) has additional features to other heavy-duty models such as double main frame channels, additional floor supports, 1045 hardened drive shaft, and #80 drive chain.
- A front splash guard is standard equipment.
- Greaseable bearings
| MODEL | SW3243 |
| Capacity | |
| Capacity - Old Rating | 430 bu |
| Capacity Cu. Ft. Struck Level Per ASAE S324.2 | 260.59 |
| Capacity Cu. Ft. Heaped Per ASAE S324.2 | 386.22 |
| Dimensions | |
| Top of Flare Width | 68″ (173 cm) |
| Inside Width | 60″ (152 cm) |
| Inside Length | 16' (4.88 m) |
| Inside Depth | 40 ⅜″ (102 cm) |
| Overall Width w/Standard Tires | 112″ (285 cm) |
| Overall Length | 23′ 2 ½″ (7.1 m) |
| Overall Loading Height-Top Of Side | 63″ (160 cm) |
| Overall Height w/Hyd. Endgate | 63 ½″ (161.3 cm) |
| Construction | |
| Diameter Of Beater | 29″ (74 cm) |
| Main Apron Chain | T-Rod |
| Spindle Size | 2 ½″ (6 cm) |
| Standard Tire Size | 16.5 × 16.1 Flotation |
| Weight w/Tires | |
| Weight w/Tires | 5,500 lbs. (2,495 kg) |
| Standard | |
| Rear Hydraulic Endgate | Standard |
| PTO Speed | 540 - Standard | 1000 - Optional |
| Jack | Standard |
| Drive | 2-Speed |
| Front Splash Panel | Standard |
| Hyd. Cyl On Hyd. Endgate | 2 |
| Options | |
| Upper Beater | Standard |
