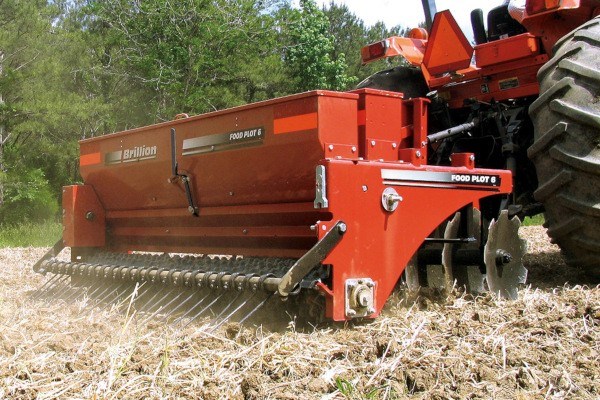

Brillion FPSB-6
Features
All in One Solution for Wildlife Food Plots
- 6' Model Available
- Three-Point Hitch - Cat. I, II Free Link
- Three-Point Hitch - Cat. I, II Quick Coupler Hitch
- Floating Link Allows Seeder to Pivot and Follow the Contour of the Land
- 18" Notched Disc Blades, Spaced at 7.5", Can be Adjusted to 10 or 15 Degrees Depending on Amount of Tillage Needed
- Two Rows of Mini S-Tine Cultivator Teeth
- Teeth are Spaced at 15" on Each Bar for a Nominal Spacing of 7.5"
- S-Tines are Fully Adjustable and Can be Removed if Only Disc Tillage is Required
- Double Seed Box Capacity
- Micro-Metered Box Will Plant Small Granular-Type Seeds at Precise Rates
- Seed Box Equipped with Brush Agitator Will Plant Larger Seeds and Seed Mixtures Containing a Variety of Seeds
- User Friendly Seed Rate Adjustments
- Seed Box Disconnect Klik Pin Disconnects the Seed Drive for Seed Rate Calibration and Prevents Wear and Tear on the Seed Box Drives in Tillage-Only Mode
- Positive Ground Driven Seed Metering System
- Pulverizer Roller Packs Seeds Into the Soil for Maximum Seed to Soil Contact
- 1.5" Self-Aligning, Greaseable Bearings Add to Ruggedness and Reliability of the Seeder
- Coil Tine Harrow Available for Additional Leveling
- Cargo/Rock Box Available
- Powder Coat Paint
| Model | FPSB-6 |
| Approximate Weight | 1,389 lbs. (625 kg) |
| Working Width | 6 ft. 0 in. (1.8 m) |
| Overall Width | 6 ft. 10 in. (2.05 m) |
| Overall Transport Height | Dependent Upon Tractor |
| Overall Height (Working) | 3 ft. 5 in. (1.03 m) |
| Overall Length | 5 ft. 8 in. (1.7 m) |
| Disc Assembly | |
| Blade Spacing | 7.5 in. (191 mm) |
| Blade Size (Main) | 18 in. (457 mm) x 9 ga. |
| Blade Size (End) | 16 in. (406 mm) x 11 ga. |
| Arbor Bolt | 1.125 in. (28.6 mm) Square |
| Gang Bearings | 1.125 in. (28.6 mm) Greaseable |
| Angle of Operation | 10 or 15 Degrees |
| Harrow Assembly | |
| Tooth Bars | 2 |
| Type of Teeth | 10" Mini S-Tines with Reversible Points |
| Tooth Spacing | Nominal 7.5 in. (191 mm) |
| Tooth Depth of Operation | 0 to 3 in. (76.2 mm) in 1 in. (25.4 mm) Increments |
| Under Bar Clearance | 11.5 in. (292 mm) |
| Seeder Assembly | |
| Seed Box Type | All Steel Construction with Cover |
| Seed Box Capacity | 2.625 bu. Each Box |
| Seed Meters | "Micro-Meter" and Brush Agitator |
| Seed Meter Drive | Positive Ground Driven with Disconnect |
| Seed Meter / Opening Spacing | 6 in. (152 mm) / 4 in. (102 mm) |
| Seed Delivery | Broadcast with Wind Deflector Tray |
| Pulverizer Assembly | |
| Working Width of Pulverizer | 6 ft. 0 in. (1.8 m) |
| Pulverizer Wheels | 9.5 in. (241 mm) Gray Cast Iron |
| Number of Wheels | 31 |
| Pulverizer Scraper | Standard |
| Pulverizer Axle Bearings | 1.5 in. (38.1 mm) Greaseable |
| Axle Size | 1.75 in. (44.5 mm) |
| Floating Hitch | Cat. I-II Quick Hitch Compatible |
| Micro-Meter Seed Box Kit | Standard |
| Brush Agitator Seed Box Kit | Standard |
| Coil Tine Drag | Optional |
| Cargo / Rock Box Kit | Optional |
| Posi-Drive Pulverizer Roller | Optional (In Lieu of Standard Pulverizer Assembly) |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 35 HP (26.88 kW) and up |
| Recommended Operating Speed | 3 to 5 MPH (5 to 8.3 km/h) |
