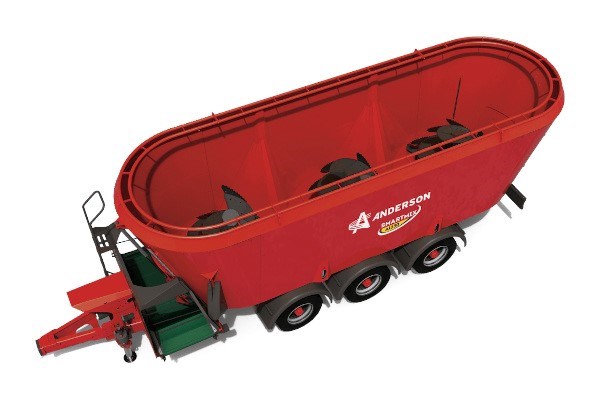

| Capacity (no capacity extension) |
1230 ft3 (34.9 m3) |
| 6 in capacity extension |
1344 ft3 (38.1 m3) |
| 12 in capacity extension |
1458 ft3 (41.3 m3) |
| 18 in capacity extension |
1572 ft3 (44.5 m3) |
| Number of Auger |
3 |
| Dimensions |
| Length (A) |
43in(88888cm)0 in (10.91 m) |
| Height (B) no extension |
117 in (2.97 m) |
| 6 in capacity extension |
123 in (3.12 m) |
| 12 in capacity extension |
129 in (3.28 m) |
| 18 in capacity extension |
135 in (3.43in(88888cm) m) |
| Hay retention ring (additionnal height) |
0 in / 3,5 in |
| Width (C) |
|
| Without incline conveyor |
112 in (2.84 m) |
| With incline conveyor (retracted) |
124 in (3.15 m) |
| Incline conveyor operating angle (degrees) |
26 @39 |
| Outside width of the wheels |
101 in (2.57 m) |
| Lateral distance to discharge point (D) |
|
| Incline conveyor chain / belt 3 ft at min.26 angle /max 40 |
23-21in at 26º / 21-18in at 40º |
| Incline conveyor chain / belt 4 ft at min. 26 angle /max 40 |
48-50in at 26º / 57-57in at 40º |
| Incline conveyor chain / belt 5 ft at min. 26 angle /max 40 |
55-57in at 26º / 68-68in at 40º |
| Incline conveyor chain / belt 6 ft at min. 26 angle /max 40 |
59-61in at 26º / 74-74in at 40º |
| Incline conveyor chain / belt 7 ft at min. 26 angle /max 40 |
66-68in at 26º / 84-84in at 40º |
| Incline conveyor chain / belt 8 ft at min. 26 angle /max 40 |
70-72in at 26º / 90-90in at 40º |
| Discharge height (E) |
|
| Incline conveyor chain / belt 3 ft at min. 26 angle /max 40 |
44-46in at 26º / 51-51in at 40º |
| Floor ST (E1) / Conveyor FD (E2) to ground |
35 in (0.88 m) |
| Specifications |
| PTO shaft - Standard specification |
1000 RPM 1" 3/4 Z20 |
| PTO shaft - Option specification |
1000 RPM 1" 3/8 Z21 |
| 2 speed Gear Box |
Optional |
| 2 Speed Gear Box and ratio |
A613R 2spd, A614R, 1;1.8;3.2@3spd |
| Minimum PTO HP Requirement - Low Speed |
145 |
| Minimum PTO HP Requirement - High Speed |
210 |
| Auger RPM - Low Speed |
18 RPM / 10 RPM |
| Auger RPM - Standard High speed |
33 RPM |
| Standard planetary model and ratio configuration |
3002 @30.24 |
| Optionnal Planetary |
N/A |
| Floor Thickness (AR235 grade or equivalent) |
3/4 in |
| Sidewall Thickness (AR235 grade or equivalent) |
1/4 in |
| Flighting Thickness (AR235 grade or equivalent) |
5/8 in |
| Standard knives per auger |
8 / 12 optional |
| Driveline security |
Shear clutch |
| Hydraulic flow requirement |
10-15 US gal/ min 37-56 L/ min |
| Hydraulic pressure |
160-200 bars (2300-2900 psi) |
| Load cell |
6 |
| Scale system |
DG500 (standard) |
| Machine Weight (empty) - STD configuration |
28 991 lb (13148 kg) |
| Utility load capacity |
35 670 lb (16177 kg) |
| Axle - Standard specifications |
Tandem |
| Axle - Optional specifications |
Tridem / self steering axle |
| Wheels - Standard specifications |
275/70R22.5 (DOUBLE) |
