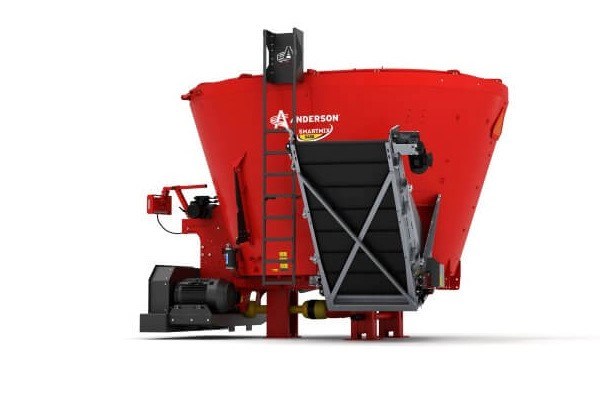

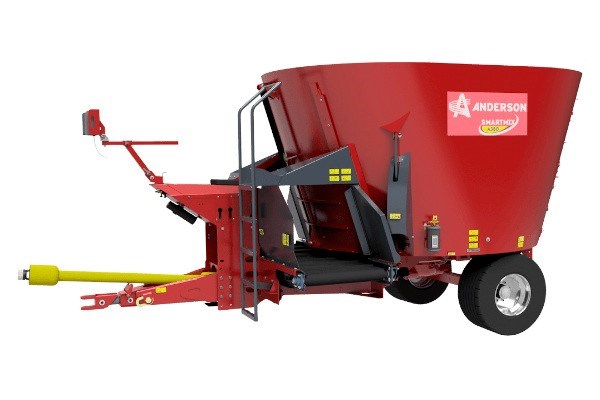

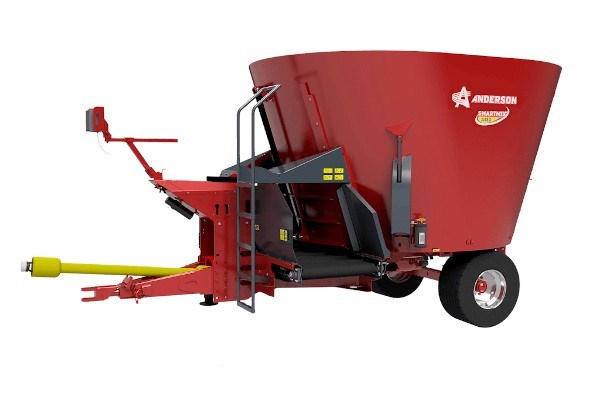

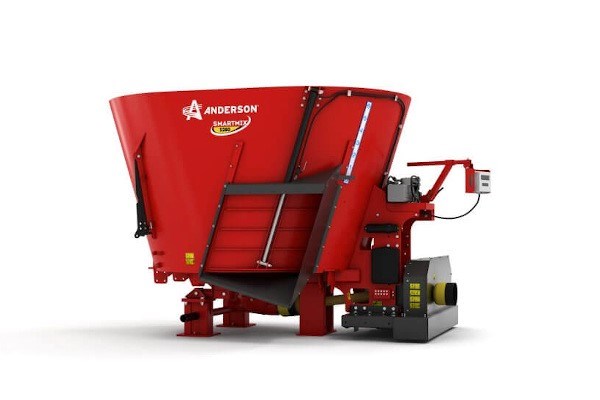

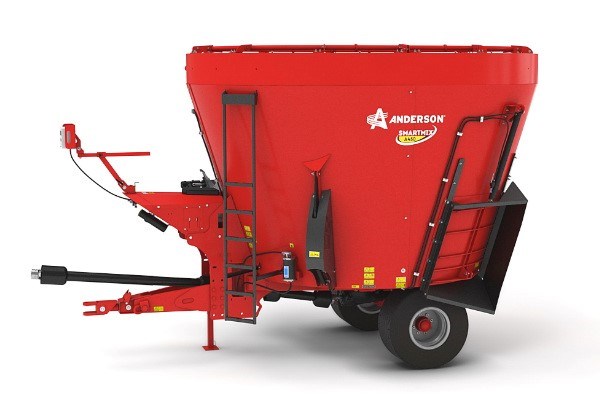

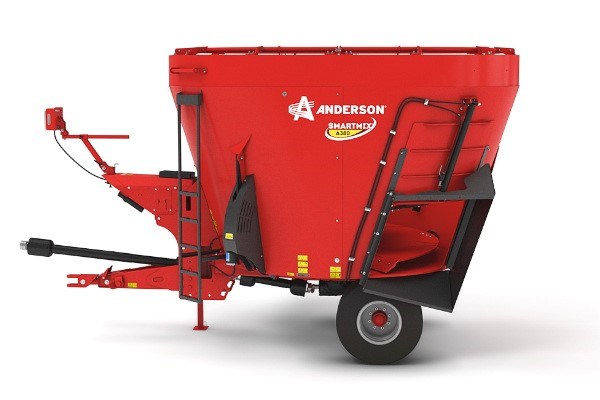

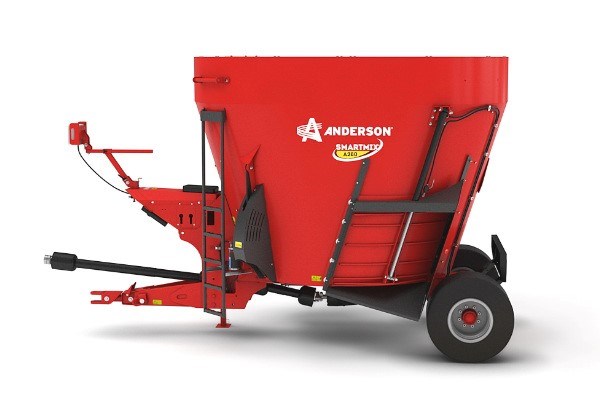

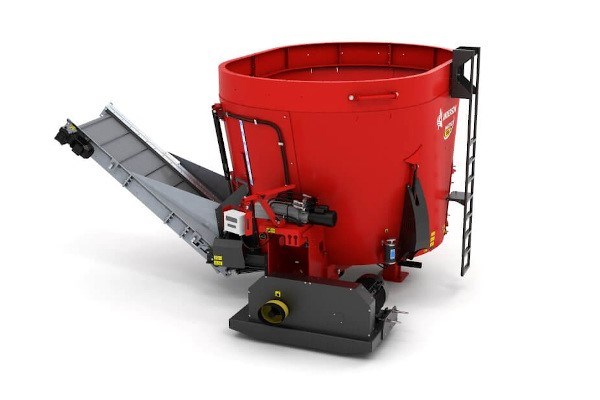

| Capacity (no capacity extension) |
450 ft3 (12.8 m3) |
| 6 in capacity extension |
500 ft3 (14.2 m3) |
| 12 in capacity extension |
550 ft3 (15.6 m3) |
| 18 in capacity extension |
600 ft3 (17 m3) |
| Number of Auger |
1 |
| Dimensions |
| Length (A) |
190 in (4.84 m) |
| Height (B) no extension |
112 in (2.84 m) |
| 6 in capacity extension |
118 in (3 m) |
| 12 in capacity extension |
124 in (3.15 m) |
| 18 in capacity extension |
130 in (3.3 m) |
| Hay retention ring (additionnal height) |
0 in / 3,5 in |
| Width (C) |
|
| Without incline conveyor |
112 in (2.84 m) |
| With incline conveyor (retracted) |
125 in (3.18 m) |
| Incline conveyor operating angle (degrees) |
26 @39 degrees |
| Outside width of the wheels |
86 in (2.18 m) |
| Lateral distance to discharge point (D) |
|
| Incline conveyor chain / belt 3 ft at min.26 angle /max 40 |
23-16in at 26º / 20-13in at 40º |
| Incline conveyor chain / belt 4 ft at min. 26 angle /max 40 |
40-44in at 26º / 53-53in at 40º |
| Incline conveyor chain / belt 5 ft at min. 26 angle /max 40 |
46-50in at 26º / 63-63in at 40º |
| Incline conveyor chain / belt 6 ft at min. 26 angle /max 40 |
50-54in at 26º / 69-69in at 40º |
| Incline conveyor chain / belt 7 ft at min. 26 angle /max 40 |
56-60in at 26º / 79-79in at 40º |
| Incline conveyor chain / belt 8 ft at min. 26 angle /max 40 |
60-64in at 26º / 85-85in at 40º |
| Discharge height (E) |
|
| Incline conveyor chain / belt 3 ft at min. 26 angle /max 40 |
36-40in at 26º / 46-46in at 40º |
| Floor ST (E1) / Conveyor FD (E2) to ground |
36 in (0.91 m) |
| Specifications |
| PTO shaft - Standard specification |
540 RPM 1" 3/8 Z6 |
| PTO shaft - Option specification |
1000 RP m 1" 3/8 Z21 |
| 2 speed Gear Box |
Optional |
| 2 Speed Gear Box and ratio |
D732, 1;1,5 54in(888cm)0 RPM |
| Minimum PTO HP Requirement - Low Speed |
60 |
| Minimum PTO HP Requirement - High Speed |
85 |
| Auger RPM - Low Speed |
27 RPM |
| Auger RPM - Standard High speed |
41 RPM |
| Standard planetary model and ratio configuration |
1602 @13.4 |
| Optionnal Planetary |
N/A |
| Floor Thickness (AR235 grade or equivalent) |
3/4 in |
| Sidewall Thickness (AR235 grade or equivalent) |
1/4 in |
| Flighting Thickness (AR235 grade or equivalent) |
5/8 in |
| Standard knives per auger |
8 / 12 optional |
| Driveline security |
Shear bolt |
| Hydraulic flow requirement |
10-15 US gal/ m in 37-56 L/ m in |
| Hydraulic pressure |
160-200 bar (2300-2900 psi) |
| Load cell |
3 |
| Scale system |
DG500 (standard) |
| Machine Weight (empty) - STD configuration |
8765 lb (3975 kg) |
| Utility load capacity |
13 050 lb (59in(150cm)18 kg) |
| Axle - Standard specifications |
Single |
| Axle - Optional specifications |
N/A |
| Wheels - Standard specifications |
15.0/55-17 26 PLY |
