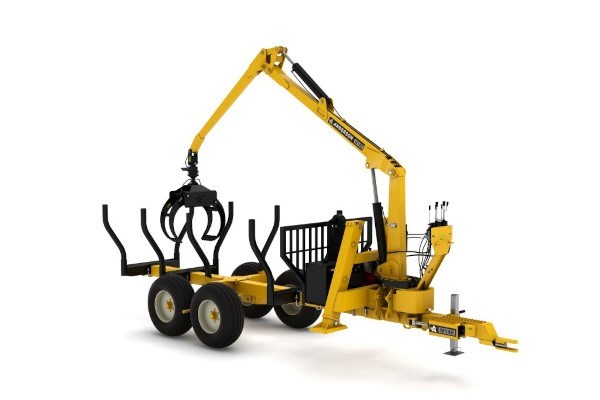

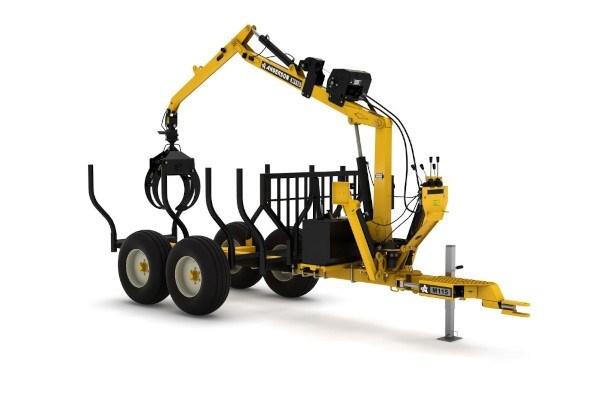

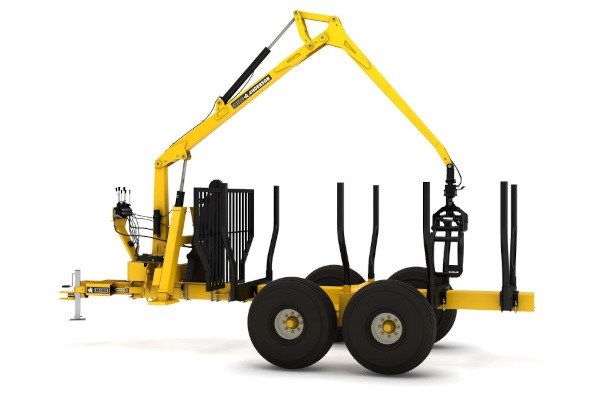

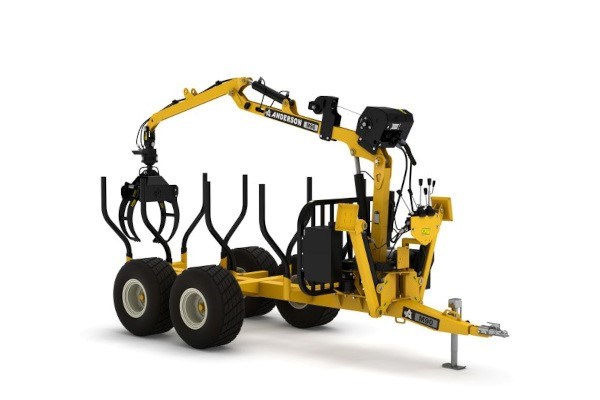

Anderson Group M-115
Features
- Hydraulic winch #750 with 150' × 3/8" cable
- Hydraulic winch #400 with 85' x 1/4" cable
- 13 HP Honda power unit
- Circuit control with joysticks
- 360 degree rotation grapple
- Articulated draw bar for improved maneuverability in tight areas
| Specifications | |
|---|---|
| Maximum arm extension | 11' 6" (3.5 m) |
| Swing angle | 360° |
| Grapple rotation: | Continuous |
| Maximum grapple opening | 36" (91.4 cm) |
| Closed grapple diameter | 4" (10.2 cm) |
| Total weight of loader with trailer | 2341 lb (1062 kg) |
| 2-speed boom-mounted hydraulic winch | Serie #400 Optional 2000 lb / 4000 lb (907 kg / 1814 kg) load capacity or Serie #750 Optional 6500 lb (2948 kg) load capacity |
| Steel cable | Serie #400 85' (26 m); ¼" (0.6 cm) diameter or Série #750 : 150, (45,7 m); Diameter: 3/8 po (0,9 cm) |
| Winch speed | Serie #400 low speed: 15' /min Serie #400 high speed: 50'/min Serie #750 Speed: 82'/min |
| Hydraulic dumping box | Optional 45'³ (1.2 m³); Raises to 45° |
| Bucket | Optional |
| 5.5 HP power unit | N/A |
| 13 HP power unit | Optional |
| Hydraulic articulated drawbar | STD |
| Telescopic Front Stabilizer | Optional |
| Lifting capacity, full boom extension | 1106 lb (499 kg) |
| Total load capacity | RF-410: 20,000 lb (9072 kg) |
| Tires | 12.5L15 (10 PLY) |
