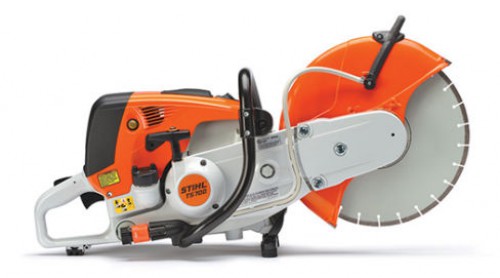

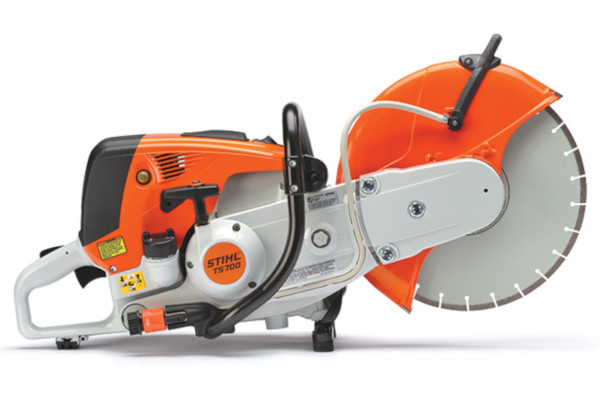

Stihl TS 700 STIHL Cutquik®
Double tap to zoom
Reduced-Emission Engine Technology - Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
IntelliCarb™ Compensating Carburetor
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
X2 Air Filtration System
The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
Semi-Automatic Belt Tensioning
With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings.
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
Common Features for Gasoline-Powered STIHL Cutquik® Cut-off Machines
View the features common to many gasoline-powered STIHL Cutquik® Cut-off Machines.
|TS 700 STIHL Cutquik® Specifications - Professional Use|
|DISPLACEMENT||98.5 cc (6.0 cu. in.)|
|ENGINE POWER||5.0 kW (6.7 bhp)|
|WEIGHT*||11.6 kg (25.6 lbs.)|
|FUEL TANK CAPACITY||1200 cc (40.6 oz.)|
|ENGINE SPEED||9,300 rpm (Elec. Gov.)|
|MAXIMUM SPINDLE SPEED||5,350 rpm|
|ARBOR SIZE||20 mm|
|MAXIMUM WHEEL SIZE||350 mm (14")|
|MAXIMUM CUTTING DEPTH||125 mm (4.9")|
|*Dry weight includes water attachment and guard. Shown with optional STIHL diamond wheel.|
