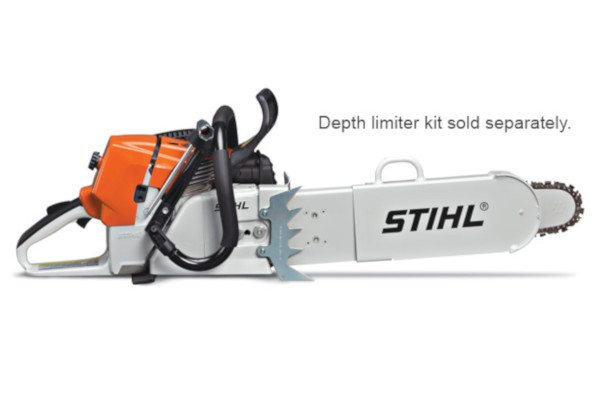

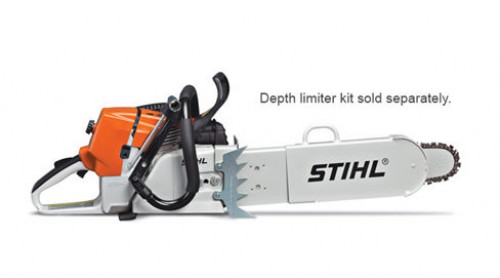

Stihl MS 461 R Rescue
Double tap to zoom
IntelliCarb™ Compensating Carburetor
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
Wrap Handle (R)
Saw can be used in multiple positions for felling or limbing with hands in the proper positions.
|DISPLACEMENT||76.5 cc (4.7 cu. in.)|
|ENGINE POWER||4.5 kW (6.0 bhp)|
|POWERHEAD WEIGHT||7.0 kg (15.4 lbs.)|
|OVERALL DIMENSION W/20" BAR (L/W/H)||105.4cm/30.0cm/32.0cm (41.5"/11.8"/12.6")|
|OVERALL VOLUME W/20" bar||101.2 L (3.57 cu. ft.)|
|FUEL CAPACITY||800 cc (27.1 oz.)|
|CHAIN OIL CAPACITY||325 cc (11.0 oz.)|
|OILOMATIC® CHAIN||3/8" RDR Rescue Chain (RDR)|
|GUIDE BAR LENGTHS* (Recommended ranges)||40 to 63 cm (16" to 25")
STIHL ROLLOMATIC® ES
