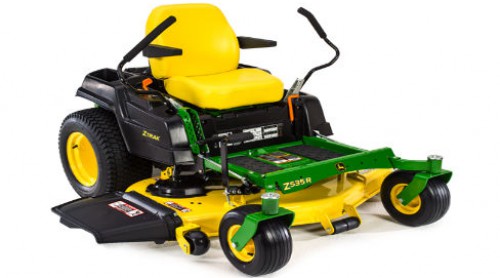

John Deere Z535R with 54-in. High Capacity Deck
John Deere Z535R with 54-in. High Capacity Deck for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.
Residential Z Trak Mowers
- 25 hp (18.6 kW)* V-Twin cyclonic engine
- Cyclonic air-management system reduces filter maintenance for longer engine life
- 54-in high-capacity mower deck
- 9-mph ground speed
|Model||ZTrak Z535R (2017)|
|Power|| 25 hp
|Engine hp is provided by engine mfr. for comparison purposes. Actual operating hp will be less.||---|
|Model number||M44 Cyclonic|
|Displacement|| 44.2 cu in.
|Lubrication|| Full pressure with replaceable filter, capacity 2 U.S. qt
|Battery|| 12 V
|Choke/speed control||Separate control levers|
|Fuel tank capacity, U.S. gallon|| 4.5 U.S. gal.
|Fuel gauge||Fuel level sight line|
|Dual hydros||Tuff Torq TZ17-M with 1-in. (2.5-cm) axles|
|Forward speed, mph (km/h)|| 0-9 mph
|Reverse speed, mph (km/h)|| 0-4.5 mph
|Speed and direction control||Twin premium levers|
|Control adjustment||3-height/18 positions|
|Frame||Heavy-duty frame tubing|
|Front caster tires||13x6.5-6|
|Front caster bearings||Sealed ball bearings|
|Service interval decal||Yes|
|Seat back height|| High-back with armrests, 20 in.
|Fore-aft adjustment|| While seated, 4.5 in.
|Seat suspension||Two springs|
|Type||Foot lift and hand lever|
|Mower cut height|| 1-4 in.
|Cut height increments|| 0.25 in.
|Preset cut height||Yes|
|Width of cut|| 54 in.
|Type||High-capacity side discharge|
|Mower deck material|| 9 gauge
|Mower drive system||V-belt|
|Type|| Electric, 125 lb-ft
|Wheelbase|| 48.7 in.
|Overall length|| 76.7 in.
|Width without mower|| 47.8 in.
|Width with mower|| 68.3 in.
|Width with mower (deflector raised for storage)|| 59.6 in.
|Height|| 46.1 in.
|Weight|| With mower and fuel, 710 lb
|Operator presence system||Yes|
|Park brake interlock||Yes|
|Note 1||Mower wash port makes cleaning the deck easier|
|Note 2||Flip-up foot platform for easy service access|
|Note 3||18-position adjustable motion-control levers|
|U.S. warranty||4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)|
|Rear bagger|| 6.5 bu
|Single light kit||---|
|Double light kit||Yes|
|Rubber floor mat||Standard|
|Mounted sprayer|| 15 U.S. gal.
|Light kit||Dual headlight kit|
|Material collection system|| Power Flow™ rear bagger, 6.5 bu
