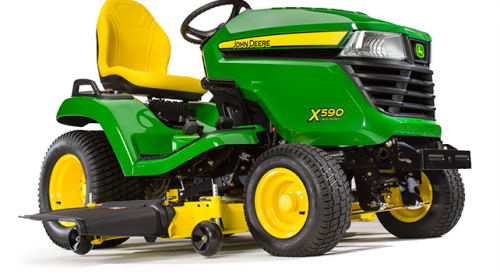

John Deere X590 with 48-in. Deck

John Deere X590 with 48-in. Deck for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Select Series X500


  • 48-in. Accel Deep™ Deck
  • Excellent power and performance
  • Constant-speed governor technology
  • 4-year/500-hour bumper-to-bumper warranty


Manufacturer John Deere
Model X590 less mower (2017)
Power  25.5 hp
   19 kW
Displacement  44.3 cu in.
   726 cc
Manufacturer/model  FS730 EFI
Type  Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
Cylinders  V-twin, cast-iron liners
Governor  Constant-speed electronic
Choke/speed control  No choke required
Cooling method  Air
Air cleaner  Dry, replaceable with foam precleaner
Oil drain  No tools
Fuel system
Type  Gasoline
Fuel delivery  Open-loop electronic fuel injection (EFI)
Fuel gauge  Gauge on dash
Fuel tank location  Rear
Fuel fill opening  On left fender, 3 in.
   7.6 cm
Fuel tank capacity  4.4 U.S. gal.
   16.7 L
Electrical system
Battery  12 V
   500 CCA
Charging system  Flywheel alternator, regulated, 15 amp
Engine starter  ---
Hourmeter  Yes
Headlights  Two standard, incandescent, 27 W
Taillights or reflector  Reflectors
Backup lights  No
Rear work lights  No
12-V outlet  Yes
Type  K72 hydrostatic integrated with transaxle
Control  Twin Touch™ pedals
Cruise control  Yes, button on dash
Oil cooler  Fins and fan on transaxle
Oil filter  Yes, replaceable
Differential lock  Standard
Forward speed  0-7.2 mph
   0-11.6 km/h
Reverse speed  0-5.2 mph
   0-8.4 km/h
Brakes  Internal wet disc
Frame  Welded heavy-duty
Primer/paint  E-coat/powder
Weight bracket  Standard front and rear - each holds up to four Quik-Tatch weights, 42 lb
   19 kg
Receiver hitch  No
Front axle  Cast iron front axle, front wheel ball bearings
Spindle bushings  Metal, replaceable
Front tires  16x6.5-8 turf
Rear tires  24x12-12 turf
Hood material  Molded-in color hood material reduces sound, will not rust or dent
Fender deck material  Stamped steel
Floor mats  Sure-grip rubber
Storage  Yes, under seat and covered toolbox
Service interval decal  Yes
Fender handles/grips  Handles
Cup holder  Yes
Equipment mounting  Yes, heavy duty
Type  Power, hydraulic
All-wheel steer  Not available on this model
Steering wheel  14 in.
   35.6 cm
Tilt steering wheel  Standard, five position
Turning radius  22 in.
   55.9 cm
Uncut circle radius  48A, 27 in.
   68.6 cm
   54A, 24 in.
   61 cm
Type  High-back
Seat back height  21 in.
   53.3 cm
Armrests  Optional
Fore-aft adjustment  While seated, slide rail, 14-position, 7 in.
   17.8 cm
Seat suspension  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
Type  Hydraulic
Hydraulic outlets  No
Mower cut height  13 positions, 1-4 in.
   2.5-10.2 cm
Cut height increments  0.25 in.
   0.64 cm
Preset cut height  Yes
Mower deck
Type  Side discharge
Cutting width  48, 54 in.
   122, 137 cm
Construction  Stamped steel deck shell
Mower deck material  10 gauge
   0.135 in.
   3.4 mm
Mower wash port  Yes
Mower drive system  Electric power take-off (PTO) clutch, in-line belt
Mower wheels  Four
Mower wheel adjustment  Seven-position, spring-loaded pin
Mower level adjustment  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
Type  Roll under tractor
Front draft arms  Attached with spring pins at two points
Rear draft arms  Quick-pull pins
Mower wheels rotate  Yes, 90 degrees for easy mower removal
Drive system  Dual belt
Meets ANSI standard  Yes
Meets OPEI standard  Yes
Backup protection  Reverse Implement Option (RIO)
Safety video  Yes
Buyer's notes
Notes  Heavy-duty garden tractor transaxle
   Convenient power steering and hydraulic lift
   Built-in front and rear weight brackets
Warranty  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at or for details.)
Optional equipment
Mowers  48X option, 54X option
Rear bagger  7, 14, 19 bu
   247, 493, 670 L
Powered material collection  Power Flow™ blower
Mulching system  Yes, MulchControl™
Front thatcher  38, 46, 54 in.
   96.5, 116.8, 137.2 cm
Front blade  48 in.
   121.9 cm
Mid-mount blade  ---
Snow blower  Two-stage, 47 in.
   119.4 cm
Rotary broom  ---
Rotary tiller  Mechanical, 30 in.
   76.2 cm
   Hydraulic, 42 in.
   106.7 cm
Sleeve hitch  Yes, implements include box scraper, rear blade, plow, disk, and cultivator
3-point hitch  ---
Rear power take-off (PTO)  ---
Plow, moldboard  Yes
Box scraper  Yes
Cultivator  Yes
Rear blade  Yes
Disk harrow  ---
Landscape rake  ---
Sprayer  Tow-behind, 15, 25, 45 U.S. gal.
   56.8, 94.6, 170.3 L
   Mounted, 25 U.S. gal.
   94.6 L
Spreader  125, 175 lb
   57.7, 79.4 kg
   Mounted, 125 lb
   57.7 kg
Front bumper  Standard front bumper/weight bracket
Brush guard  Yes
Weather protection  Weather enclosure
Sun canopy  Yes
Rear receiver hitch  ---
Bucket holder  Yes, double bucket
Grass striping  Lawn striping kit
Tractor shovel  40 in.
   101.6 cm
Front loader  ---
Other equipment  ---
Tow-behind tools  19
Height  52.25 in.
   132.7 cm
Overall length  79 in.
   201 cm
Wheelbase  51.2 in.
   130 cm
Width with mower  48A, 62.5 in.
   159 cm
   54A, 68.4 in.
   174 cm
Width with mower (deflector raised for storage)  48A, 53.6 in.
   136 cm
   54A, 59.4 in.
   151 cm
Width without mower  41 in.
   104.1 cm
Weight  48A Mower, no fuel, 797 lb
   362 kg
   54A Mower, no fuel, 805 lb
   365 kg
