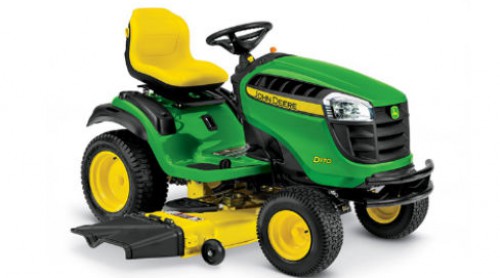

John Deere D170

John Deere D170 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

100 Series


  • Engine is powerful and smooth-running
  • Frame made of full-length welded steel
  • Cast-iron front axle will not bend
  • 2-year/120-hour bumper-to-bumper warranty
Manufacturer John Deere
Model D170 - 54 (2017)
Power  25 hp
   18.6 kW
Displacement  44.2 cu in.
   724 cc
Manufacturer/model  44S977 (M44)
Type  Overhead valve, full-pressure lube, oil filter
Cylinders  V-twin - extended life series (ELS)
Governor  Mechanical
Choke/speed control  One lever
Cooling method  Air
Air cleaner  Cartridge with prefilter
Oil drain  No tools
Fuel system
Type  Gasoline
Fuel delivery  Pulse pump and carburetor
Fuel gauge  Mechanical, viewable from seat
Fuel tank location  Rear
Fuel fill opening  Center, 2 in.
   5.1 cm
Fuel tank capacity  2.4 U.S. gal.
   9.1 L
Electrical system
Battery  12 V
   195 CCA
Charging system  Regulated, 16 amp
Engine starter  Bendix type
Hourmeter  Yes, with service reminder
Headlights  Two standard, incandescent
Taillights or reflector  Reflectors
Backup lights  No
Rear work lights  No
12-V outlet  Optional accessory
Type  Hydrostatic, 2-wheel drive
Control  Two-pedal foot-controlled hydrostatic
Cruise control  Standard
Oil cooler  Fins and fan on transaxle
Oil filter  Yes, internal
Differential lock  No
Forward speed  0-5.5 mph
   0-8.9 km/h
Reverse speed  0-3.2 mph
   0-5.1 km/h
Brakes  Disc
Frame  Full-length welded steel
Primer/paint  E-coat/powder
Weight bracket  Optional rear
Receiver hitch  No
Front axle  Cast iron front axle, front wheel ball bearings
Spindle bushings  No
Front tires  16x6.5-8
Rear tires  22x9.5-12
Hood material  JD Loy, UV resistant
Fender deck material  Stamped steel
Floor mats  Yes
Storage  Storage tray with cover
Service interval decal  Yes
Fender handles/grips  Handgrips
Cup holder  Yes
Equipment mounting  CargO Mount™ system
Type  Sector and pinion with single drag link and tie rod
All-wheel steer  Not available on this model
Steering wheel  Deluxe, diameter - 14 in.
   35.6 cm
Tilt steering wheel  No
Turning radius  18 in.
   45.7 cm
Uncut circle radius  18 in.
   45.7 cm
Type  One piece with lumbar adjustment
Seat back height  15 in.
   38.1 cm
Armrests  No
Fore-aft adjustment  While seated, 5.5 in.
   14 cm
Seat suspension  Tilt, two coil springs
Lift system
Type  Lever on fender deck
Hydraulic outlets  No
Mower cut height  13 positions, 1-4 in.
   2.5-10.2 cm
Cut height increments  0.25 in.
   0.64 cm
Preset cut height  No
Mower deck
Type  Side discharge
Cutting width  54 in.
   137 cm
Construction  Stamped steel deck shell
Mower deck material  Steel, 11 gauge
   0.120 in.
   3 mm
Mower wash port  Yes
Mower drive system  Electric power take-off (PTO) clutch
Mower wheels  Five
Mower wheel adjustment  One bolt
Mower level adjustment  Easy-level deck
Mower attachability
Type  Slide under tractor
Front draft arms  One spring clip
Rear draft arms  Two pins and spring clips
Mower wheels rotate  No
Drive system  Single belt
Meets ANSI standard  Yes
Meets OPEI standard  Yes
Backup protection  Reverse Implement Option (RIO)
Safety video  Yes
Buyer's notes
Notes  JD Loy hood resists fading, won't rust or dent
   Durable primer and powder paint finish
   Large, 14-in. (36-cm) steering wheel for more comfortable operation
Warranty  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at or for details.)
Optional equipment
Mowers  Standard, 54 in.
   137 cm
Rear bagger  2-bag, 6.5 bu
   229 L
Powered material collection  Power Flow™ blower
Mulching system  High performance plug
Front thatcher  ---
Front blade  46 in.
   116.8 cm
Mid-mount blade  ---
Snow blower  Two-stage, 44 in.
   111.8 cm
Rotary broom  ---
Rotary tiller  ---
Sleeve hitch  ---
3-point hitch  ---
Rear power take-off (PTO)  ---
Plow, moldboard  ---
Box scraper  ---
Cultivator  ---
Rear blade  ---
Disk harrow  ---
Landscape rake  ---
Sprayer  Tow-behind only, 15 U.S. gal.
   56.8 L
   Tow-behind only, 25 U.S. gal.
   94.6 L
Spreader  Tow-behind only, 125 lb
   57.7 kg
Front bumper  Standard two-bar styled front bumper
Brush guard  ---
Weather protection  Snow cab
Sun canopy  Yes
Rear receiver hitch  ---
Bucket holder  Yes, single bucket
Grass striping  Lawn striping kit
Tractor shovel  ---
Front loader  ---
Other equipment  ---
Tow-behind tools  16
Height  46.5 in.
   118.1 cm
Overall length  76.5 in.
   194.3 cm
Wheelbase  48.9 in.
   124.2 cm
Width with mower  68.5 in.
   174 cm
Width with mower (deflector raised for storage)  58.5 in.
   149 cm
Width without mower  ---
Weight  Mower, no fuel, 523 lb
   237 kg
