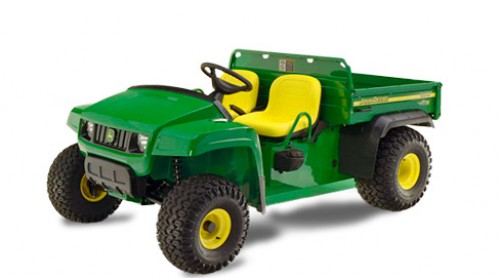

John Deere TS 4x2

John Deere TS 4x2 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Traditional Utility Vehicles


  • Best in class work capability
  • Enhanced stability for better performance in difficult terrain
  • Best in class durability
Manufacturer John Deere
Model Gator TS 4x2 (2016)
Type  4-cycle gas
Displacement  400 cc
   24.4 cu in.
Power  10.1* kW
   13.5 hp
Cooling system  Air
Transmission  Continuously variable transmission (CVT)
Final drive  Fully enclosed; oil bath
Four wheel drive  No
Traction assist  Mechanically Activated Differential Lock
Descent control  No
Maximum traveling speed  0-20 (0-32 km/h) forward, 0-19.4 (0-31.2 km/h) reverse
Front  Independent spring over shock, single A-arm
Rear  Two high-floatation, low pressure tires (solid axles)
Type  Wet disk in transaxle
Park brake  Wet disk, hand operated
Front  Two 22.5x10.00-8, 2 PR hi-flotation
Rear  Two 25x12.00-9, 2 PR hi-flotation
Dry weight  ---
Dimensions / Capacities
Wheelbase  1770 mm
   69.7 in.
Front tread centers  1270 mm
   50.0 in.
Rear tread centers  1220 mm
   48 in.
Height  1108 mm
   43.6 in.
Width  1525 mm
   60 in.
Length  104.0 in.
Ground clearance  6.0 (under transaxle) in.
   9.8 (foot platform) in.
Fuel capacity  5.0 g
Cargo box dimensions  39.5 (L) x 49 (W) x 9 (H) in.
Cargo box capacity  227 kg
   500 lb
Payload capacity  408 kg
   900 lb
Towing capacity  408 kg
   900 lb
Hitch  1.25in hitch is available as an option (BM23839)
Color  Green/Yellow
Power steering  No
Battery  340 @ -18 C (0 F) CCA
Alternator  16.6 @ 3700 rpm (regulated) amp
Instrumentation  Fuel Gauge, Hour Meter listed in the Sales Manual
Storage  Cup Holder, Glovebox
Seating  Bucket Seats
Date collected  ---
