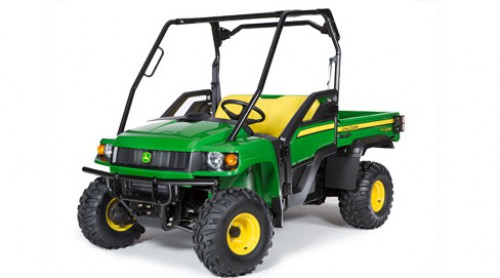

John Deere HPX 4x4

John Deere HPX 4x4 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Traditional Utility Vehicles


  • Economical 4x4 solution
  • Wide stance for enhanced stability
  • SAE and OSHA certified ROPS
Manufacturer John Deere
Model Gator HPX 4x4 (2016)
Type  2cyl, 4-cycle gas
Displacement  675 cc
   41.2 cu in.
Power  15.7* kW
   21 hp
Cooling system  Liquid
Transmission  Continuously Variable Transmission (CVT)
Final drive  Two speed, oil bath
Four wheel drive  Yes
Traction assist  Positive locking, mechanically actuated (hand-operated)
Descent control  No
Maximum traveling speed  0-25 mph (0-40 km/h) forward
   0-12 mph (0-20 km/h) reverse
Front  Independent with McPherson Strut
Rear  Coil over shock
Type  Disc brakes
Park brake  Yes
Tires / Wheels
Front  24 x 9.5-10
Rear  24 x 10.5-10
Dimensions / Capacities
Wheelbase  1910 mm
   75.2 in.
Dry weight  ---
Length  2870 mm
   113 in.
Width  1524 mm
   60 in.
Height  1867 mm
   73.5 in.
Tread centers  1257.3 mm
   49.5 in.
Ground clearance  152.4 mm
   6.0 in.
Fuel capacity  20.1 L
   5.3 U.S. gal.
Cargo box dimensions  39.5 (L) x 49 (W) x 9 (H) in.
Cargo box capacity (weight)  454 kg
   1000 lb
Payload capacity  635 kg
   1400 lb
Towing capacity  590 kg
   1300 lb
Hitch  Optional 1.25-in. receiver
Color  Green/Yellow
Power steering  No
Battery / Alternator / Power port  340 CCA
   20 amp
Instrumentation  ---
Storage  Cup Holders, Glovebox
Seating  Bucket Seats
Date collected  ---
