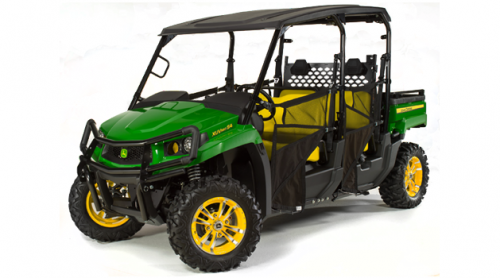

John Deere XUV560 S4

John Deere XUV560 S4 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Crossover Utility Vehicles


  • Multi-passenger capability for four people
  • Four-wheel independent suspension for excellent ride and handling
  • Ergonomic operator station with easy-to-use controls
  • Versatile customization
Manufacturer John Deere
Model Gator XUV560 S4 (2017)
Type  4-cycle gas, V-twin, Dynamically tuned Carb, Overhead Valves (OHV)
Displacement  570 cc
Power  11.9* kW
   16 hp
Cooling system  Air cooled
Transmission  Continuously Variable Transmission (CVT) with clutch enclosure
Final drive  High, Low, Neutral, Reverse Transaxle
Four wheel drive  Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential
Traction assist  Positive locking, mechanically actuated (hand lever operated) rear differential lock
Descent control  Not available
Maximum traveling speed  0-28 mph (0-45 kph) High Forward, 0-21 mph (0-34 kph) Low Forward, 0-16 mph (0-26 kph) Reverse
Front  Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar
Rear  Fully independent with lower H-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Type  196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers
Park brake  Automotive-style foot-actuated mechanical park brake system
Tires / Wheels
Front  25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
Rear  25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
Dimensions / Capacities
Wheelbase  2743 mm
   108 in.
Dry weight  ---
 Wet weight (includes fuel/fluids): 679 kg
 Wet weight (includes fuel/fluids): 1497 lb
Length  3658 mm
   144 in.
Width  1435 mm
   56.5 in.
Height  1880 mm
   74 in.
Tread centers  Front: 1220 mm
 Front: 48 in.
 Rear: 1168 mm
 Rear: 46 in.
Ground clearance  236 mm minimum
   9.3 in. minimum
Fuel capacity  18.5 L
   4.9 U.S. gal.
Cargo box dimensions  82L x 120.9W x 29.7D (0.25 m3) cm
   32.3L x 47.6W x 11.7D (8.9 ft3) in.
Cargo box capacity (weight)  181 kg
   400 lb
Payload capacity  544 kg
   1200 lb
Towing capacity  1100 lb
   499 kg
Hitch  Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Color  Green/Yellow
Power steering  Not available
Battery / Alternator / Power port  340 CCA
 16 amp @ 4100 rpm, regulated
 12 VDC standard outlet
Instrumentation  Digital display with hour meter with maintenance and driver seatbelt reminder; optional speedometer and engine oil temperature sensor
Storage  2 cupholders, sealed underhood storage, glovebox, center console, optional under seat
Seating  Bench seat front/rear
Date collected  ---
