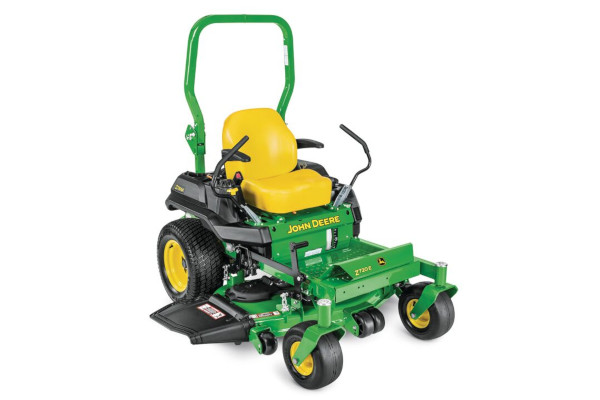

John Deere Z720E

Double tap to zoom



Features

  • Heavy-duty design delivers strength and durability
  • Three-position, adjustable foot platform to accommodate different size operators
  • Smooth and powerful V-twin engine for performance and long life
  • 8-gal. (30.3-L) fuel capacity for extended mowing times
  • Transmission offers speeds up to 8 mph (12.8 km/h) to maximize mowing efficiency

Specifications

Model John Deere Z720E Ztrack Zero
KEY SPECS
Engine power 23 hp (17.2 kW)
Engine model number FR691V
Forward speed 0-8 mph (0-12.8 km/h)
Front caster tires 13x6.5-6
Drive tires 23x9.5-12 (48-in. decks)23X10.5-12 (54- and 60-in. decks)
Seat back height High back with adjustable armrests, 21 in. (53 cm)
Width of cut 48 in. (122 cm) 54 in. (137 cm) 60 in. (152 cm)
Mulching system Optional MulchControl™ attachment
U.S. warranty 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
ENGINE
Power 23 hp (17.2 kW)
Model number FR691V
Displacement 44.3 cu in. (726 cc)
Cylinders V-twin
Lubrication Full pressure with replaceable filter, capacity, 2 U.S. qt (1.9 L)
Type Overhead valve
Battery 12 V (340 CCA)
Choke/speed control Separate control levers
Cooling method Air
Fuel tank capacity 8 U.S. gal. (30.2 L)
Fuel gauge Fuel level sight line
DRIVE TRAIN
Dual hydros Hydro-gear ZT3100 with 1-in. (2.54-cm) axles
TRAVEL SPEED
Forward speed 0-8 mph (0-12.8 km/h)
Reverse speed 0-4 mph (0-6.4 km/h)
Speed and direction control Twin standard levers
Control adjustment 2-height/18 positions
CHASSIS
Frame Heavy-duty frame tubing
Primer/paint E-coat/powder
Front caster tires 13x6.5-6
Front caster bearings Sealed ball bearings
Drive tires 23x9.5-12 (48-in. decks) 23X10.5-12 (54- and 60-in. decks)
Hourmeter Yes
Service interval decal Yes
Storage compartment Yes
Cup holder Yes
SEAT
Seat back height High back with adjustable armrests, 21 in. (53 cm)
Fore-aft adjustment While seated, 4 in. (10.2 cm)
Seat suspension Two four-position springs
LIFT SYSTEM
Type Spring assisted foot lift
Mower cut height 1.5-5 in. (3.8-12.7 cm)
Cut height increments 0.25 in. (0.64 cm)
Preset cut height Yes
MOWER DECK
Width of cut 48 in. (122 cm) 54 in. (137 cm) 60 in. (152 cm)
Type High-capacity (HC) PRO side discharge
Mower deck material 9 gauge 0.15 in. (3.8 mm)
Mower drive system V-belt
PTO
Type Electric, 125 lb-ft (169 Nm)
Drive V-belt
DIMENSIONS
Wheelbase 49.9 in. (126.7 cm)
Overall length 80.6 in. (204.6 cm)
Width without mower 48.6 in. (123.5 cm)
Width with mower 48 HC, 62.3 in. (158.2 cm) 54 HC, 68.2 in. (173.2 cm) 60 HC, 73.3 in. (186.1 cm)
Width with mower (deflector raised for storage) 48 HC, 53.2 in. (135.1 cm) 54 HC, 59.4 in. (151 cm) 60 HC, 64.8 in. (164.5 cm)
Height ROPS up - 71.1 in. (182.2 cm) ROPS down - 47.4 in. (120.3 cm)
Weight With mower and fuel, 48 HC, 950 lb (431 kg); With mower and fuel, 54 HC, 965 lb (437 kg); With mower and fuel, 60 HC, 995 lb (451 kg)
SAFETY
Operator presence system Yes
Park brake interlock Yes
Safety video Yes
BUYER'S NOTES
Note 1 Flip-up and adjustable foot platform for easy service access
U.S. warranty 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
OPTIONAL ATTACHMENTS
Mulching system Optional MulchControl attachment
Rubber floor mat Optional
Light kit LED - fender mounted
Material collection system 48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu (229.1 L)
ADDITIONAL INFORMATION
Date collected 30-Aug-2018
