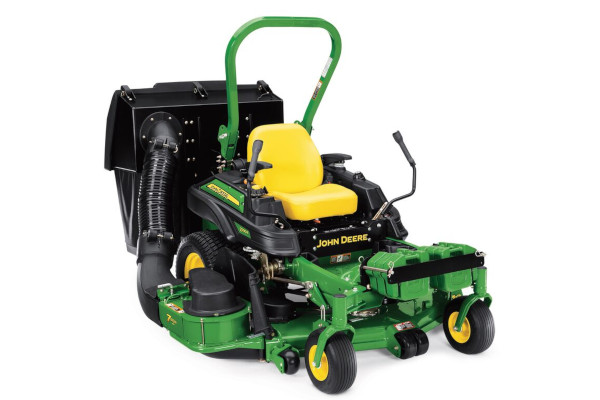

John Deere Z930R

Z930R for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

  • Heavy-duty frame provides strength and durability
  • Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
  • Powerful 25.5-hp (19.0-kW) commercial-grade engine delivers class-leading performance and efficiency
  • Field-installed propane conversion kits for Commercial Walk-Behind Mowers, QuikTrak™ Mowers, and Commercial ZTrak™ Mowers
  • Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access

Specifications

Model John Deere Z930R Ztrak Zero-Turn Mower
KEY SPECS
Engine Manufacturer/model FX801V
Engine Power Gross at 3,600 rpm: 25.5 hp (19 kW)
Fuel tank capacity 11.5 U.S. gal. (43.5 L)
Mower deck Size 54, 60 in. (137, 152 cm)
Blade tip speed Approximately 18,000 fpm (5,486 m/min)
Transmission Hydrostatic
Speed range 0-12 mph (0-19.3 km/h)
Drive wheels 24x12-12
Caster wheels 13x6.5-6
Warranty 36 months or 1500 hours, whichever comes first; First 24 months, no hour limitation
ENGINE
Manufacturer/Model FX801V
Power Gross at 3,600 rpm, 25.5 rpm (19 kW)
Displacement 52 cu in. (852 cc)
Cylinders Two
Crankcase capacity With filter, 2 U.S. qt (1.9 L)
Oil filter Full flow, replaceable
Lubrication Full pressure
Cooling Air
Air cleaner Pre-cleaner; Yes; Heavy-duty canister type with safety element
FUEL SYSTEM
Fuel type Gasoline
Fuel consumption Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr (4.2-7.2 L/hr)
Fuel tank capacity 11.5 U.S. gal. (43.5 L)
Fuel tank switch/shut-off valve Yes
ELECTRICAL SYSTEM
Charge system 20 amp
Battery voltage 12 V
Cold cranking amp 300 amp
Hour meter Standard, digital
Operator presence starting system Brake-N-Go (foot)
DRIVETRAIN
Transmission Hydrostatic
Hydraulic pumps
Wheel motors Tuff Torq heavy-duty integrated piston wheel motor
Travel speed Speed range 0-12 mph (0-19.3 km/h); Forward 0-12 mph (0-19.3 km/h); Reverse 0-4.5 mph (0-7.2 km/h)
Speed and direction control Twin levers
Hydraulic capacity 5.9 U.S. qt (5.6 L)
Hydraulic oil cooler
Filter Internal, replaceable
BUYER'S NOTE
Warranty 36 months or 1500 hours, whichever comes first; First 24 months, no hour limitation
TIRES
Drive wheels 24x12-12
Rear tires
Load rating 4 PR
BRAKES
Dynamic braking Twin levers
Park brake Internal wet disk integrated in the transmission
Park brake actuation Foot brake
PTO
Type Electro-magnetic, 225 lb-ft (305 Nm)
Drive V-belt
MOWER DECKS
Size 54, 60 in. (137, 152 cm)
Deck construction 7-Iron PRO, one-piece stamped steel with reinforcements
Deck thickness 7 gauge 0.18 in. (4.6 mm)
Discharge Side, Mulch On Demand™ system
Height-of-cut range Increments 0.25 in. (0.64 cm); 1-5.5 in. (2.54-14 cm)
Cutting width 54, 60 in. (137, 152 cm)
BLADES
Length Varies by deck size
Thickness 0.25 in. (0.64 cm)
Blade tip speed Approximately 18,000 fpm (5,486 m/min)
Number Three
WHEELS
Caster wheel type Flat free
Caster wheels 13x6.5-6
Front anti-scalp rollers RH, center, LH
Rear anti-scalp rollers Optional
DIMENSIONS
Length 84 in. (213 cm)
Width With chute down, 68, 74 in. (173, 188 cm)
Height With ROPS up, 73 in. (185 cm); With ROPS down, 47 in. (119 cm)
Weight 1,273 to 1,310 lb (577 to 594 kg)
ADDITIONAL INFORMATION
Date collected 11-Sep-2018
