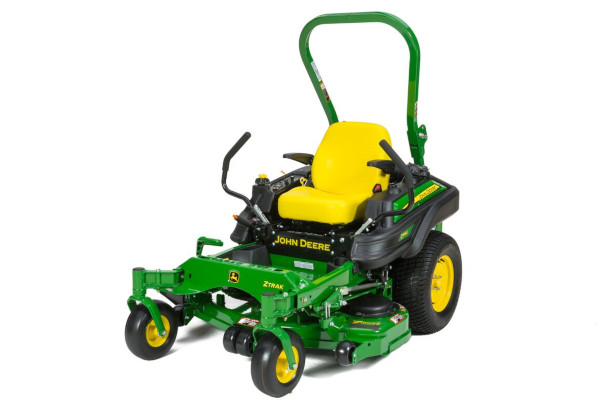

John Deere Z915E

Double tap to zoom



Features

  • Heavy-duty frame provides strength and durability
  • Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
  • Powerful 25.0-hp (18.6-kW) commercial-grade engine delivers class-leading performance and efficiency
  • Durable hydrostatic drive train that delivers better cooling and provides easy access
  • Two seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort

Specifications

Model John Deere Z915E Ztrak Zero-Turn Mower
KEY SPECS
Engine Manufacturer/model CV742
Engine Power Gross at 3,600 rpm: 25 hp (18.6 kW)
Fuel tank capacity 11.5 U.S. gal. (43.5 L)
Mower deck Size 48, 54, 60 in. (122, 137, 152 cm)
Blade tip speed Approximately 18,000 fpm (5,486 m/min)
Transmission Hydrostatic
Speed range 0-10 mph (0-16.1 km/h)
Drive wheels 24x9.5-12 (48 in.), 24x12-12 (54 in., 60 in.)
Caster wheels 13x5-6
Warranty 36 months or 1200 hours, whichever comes first; First 24 months, no hour limitation
ENGINE
Manufacturer/Model CV742
Power At 3,600 rpm, 25 hp (18.6 kW)
Displacement 45.6 cu in. (747 cc)
Cylinders Two
Crankcase capacity With filter, 2 U.S. qt (1.9 L)
Oil filter Full flow, replaceable
Lubrication Full pressure
Cooling Air
Air cleaner Pre-cleaner Yes Heavy-duty canister type with safety element
FUEL SYSTEM
Fuel type Gasoline
Fuel consumption Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr (4.2-7.2 L/hr)
Fuel tank capacity 11.5 U.S. gal. (43.5 L)
Fuel tank switch/shut-off valve Yes
ELECTRICAL SYSTEM
Charge system 15 amp
Battery voltage 12 V
Cold cranking amp 300 amp
Hour meter Standard, digital
Operator presence starting system Brake-N-Go (hand)
DRIVETRAIN
Transmission Hydrostatic
Hydraulic pumps
Wheel motors Tuff Torq heavy-duty integrated piston wheel motor
Travel speed Speed range 0-10 mph (0-16.1 km/h); Forward 0-10 mph (0-16.1 km/h); Reverse 0-4.5 mph (0-7.2 km/h)
Speed and direction control Twin levers
Hydraulic capacity 5.9 U.S. qt (5.6 L)
Hydraulic oil cooler
Filter Internal, replaceable
BUYER'S NOTE
Warranty 36 months or 1200 hours, whichever comes first; First 24 months, no hour limitation
TIRES
Drive wheels 24x9.5-12 (48 in.), 24x12-12 (54 in., 60 in.)
Rear tires
Load rating 4 PR
BRAKES
Dynamic braking Twin levers
Park brake Internal wet disk integrated in the transmission
Park brake actuation Hand brake
PTO
Type Electro-magnetic, 200 lb-ft (271 Nm)
Drive V-belt
MOWER DECKS
Size 48, 54, 60 in. (122, 137, 152 cm)
Deck construction One-piece stamped steel with reinforcements
Deck thickness 7 gauge 0.18 in. (4.6 mm)
Discharge Side
Height-of-cut range Increments 0.25 in. (0.64 cm); 1-5.5 in. (2.54-14 cm)
Cutting width 48, 54, 60 in. (122, 137, 152 cm)
BLADES
Length Varies by deck size
Thickness 0.25 in. (0.64 cm)
Blade tip speed Approximately 18,000 fpm (5,486 m/min)
Number Three
WHEELS
Caster wheel type Pneumatic Front
Caster wheels 13x5-6
Front anti-scalp rollers RH, center, LH
Rear anti-scalp rollers Optional
DIMENSIONS
Length 84 in. (213 cm)
Width With chute down, 62, 68, 74 in. (157, 173, 188 cm)
Height With ROPS up, 73 in. (185 cm); With ROPS down, 47 in. (119 cm)
Weight 1,100 to 1,178 lb (499 to 534 kg)
ADDITIONAL INFORMATION
Date collected 23-May-2018
