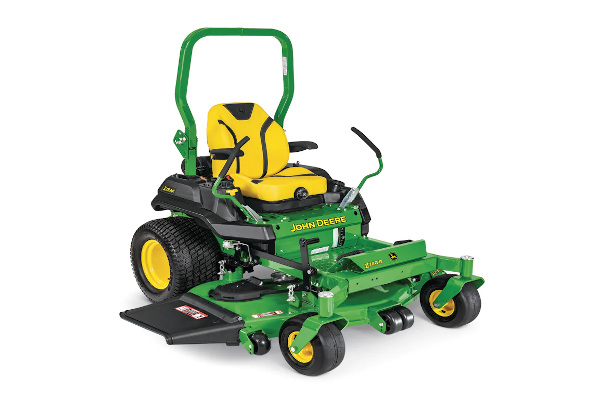

John Deere Z740R
Z700 Series Z740R
Overview:
• 23.5-hp (17.5 kW)* FX series engine
• 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
• 24-in. seat with fully adjustable mechanical suspension
• Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches
Share This Product:
Features
- Smooth and powerful professional grade V-twin engine for performance and long life
- High-capacity (HC) PRO Mower Decks offer superior cut quality and versatility
- Operator station is adjustable for superior comfort
- Adjustable, mechanical suspension seat with ComfortGlide™ suspension system for a smooth ride
- Three-position, adjustable foot platform to accommodate different size operators
- Serviceability is designed-in for convenience
- Controls, including an automatic motion-control lever/parking brake system, are easy to find and use
- Heavy-duty design delivers strength and durability
- Transmission offers speeds up to 10 mph (16.1 km/h) to maximize mowing efficiency
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Optional Michelin® X® Tweel® Turf airless radial tire technology on the Z740R for extra reliability and ride quality
Specifications
Key Specs
| Engine power | 23.5 hp 17.5 kW |
| Engine model number | FX730V |
| Forward speed | 0-10 mph 0-16.1 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 24x9.5-12 (48-in. decks) 24X12-12 (54- and 60-in. decks) Optional - 24X12N12 Michelin® Tweel® X Turf Airless Radial (54- and 60-in. decks) |
| Seat back height | High back with adjustable armrests, 24 in. 60.9 cm |
| Width of cut | Not available with Tweel option - 48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
| Mulching system | Optional MulchControl™ attachment |
| U.S. warranty | 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine
| Power | 23.5 hp 17.5 kW |
| Model number | FX730V |
| Displacement | 44.2 cu in. 726 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L |
| Type | Overhead valve |
| Battery | 12 V 340 CCA |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Fuel tank capacity | 8 U.S. gal. 30.2 L |
| Fuel gauge | Fuel level sight line |
Drive train
| Dual hydros | Hydro-gear ZT3400 with 1-in. (2.54-cm) axles |
Travel speed
| Forward speed | 0-10 mph 0-16.1 km/h |
| Reverse speed | 0-4.5 mph 0-7.2 km/h |
| Speed and direction control | Twin premium levers |
| Control adjustment | 2-height/18 positions |
Chassis
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster tires | 13x6.5-6 |
| Front caster bearings | Sealed ball bearings |
| Drive tires | 24x9.5-12 (48-in. decks) 24X12-12 (54- and 60-in. decks) 24X12N12 Michelin Tweel X Turf Airless Radial (54- and 60-in. decks) |
| Hourmeter | Yes with low oil pressure and low battery voltage indicators |
| Service interval decal | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
Seat
| Seat back height | High back with adjustable armrests, 24 in. 60.9 cm |
| Fore-aft adjustment | While seated, 4 in. 10.2 cm |
| Seat suspension | Mechanical; adjustable for weight |
Lift system
| Type | Spring assisted foot lift |
| Mower cut height | 1.5-5 in. 3.8-12.7 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
Mower deck
| Width of cut | Not available with Tweel option - 48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
| Type | High-capacity (HC) PRO side discharge |
| Mower deck material | 9 gauge 0.15 in. 3.8 mm |
| Mower drive system | V-belt |
PTO
| Type | Electric, 125 lb-ft 169 Nm |
| Drive | V-belt |
Dimensions
| Wheelbase | 49.9 in. 126.7 cm |
| Overall length | 82 in. 208.4 cm |
| Width without mower | 48.6 in. 123.5 cm With Tweel option - 52.8 in. 134.2 cm |
| Width with mower | 48 HC, 62.3 in. 158.2 cm 54 HC, 68.2 in. 173.2 cm 60 HC, 73.3 in. 186.1 cm |
| Width with mower (deflector raised for storage) | 48 HC, 53.2 in. 135.1 cm 54 HC, 59.4 in. 151 cm 60 HC, 64.8 in. 164.5 cm |
| Height | ROPS up - 71.1 in. 182.2 cm ROPS down - 49.7 in. 126.2 cm |
| Weight | With mower and fuel, 48 HC, 995 lb 451 kg With mower and fuel, 54 HC, 1,010 lb 458 kg With mower and fuel, 60 HC, 1,040 lb 472 kg With Tweel option, mower, and fuel, 54 HC, 1046 lb 474 kg With Tweel option, mower, and fuel, 60 HC, 1076 lb 488 kg |
Safety
| Operator presence system | Yes |
| Park brake interlock | Yes |
| Safety video | Yes |
Buyer's notes
| Note 1 | Flip-up and adjustable foot platform for easy service access |
| U.S. warranty | 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Optional attachments
| Mulching system | Optional MulchControl attachment |
| Rubber floor mat | Optional |
| Light kit | LED - fender mounted |
| Material collection system | 48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu 229.1 L Not compatible with Tweel option |
