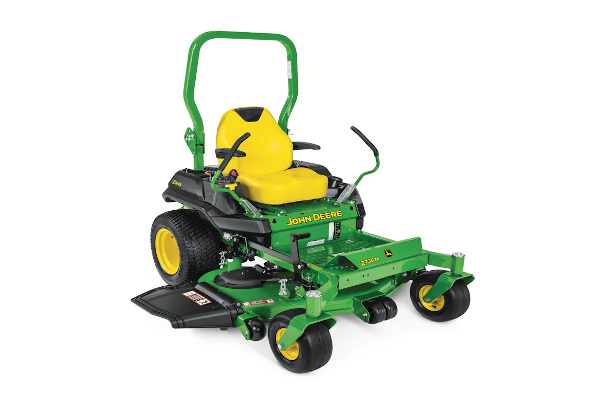

John Deere Z735M
Z700 Series Z735M
Overview:
• 25-hp (18.6 kW)*, 810 cc engine
• 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
• 22.5-in. seat with adjustable armrests, springs and ComfortGlide™ suspension
• Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches
Share This Product:
Features
- Smooth and powerful professional-grade V-twin engine for performance and long life
- High-capacity (HC) PRO Mower Decks offer superior cut quality and versatility
- Operator station is adjustable for superior comfort
- Seat includes ComfortGlide™ suspension and adjustable springs for a smooth ride
- Three-position, adjustable foot platform to accommodate different size operators
- Serviceability is designed-in for convenience
- Controls, including an automatic motion-control lever/parking brake system, are easy to find and use
- Heavy-duty design delivers strength and durability
- Transmission offers speeds up to 9.5 mph (15.3 km/h) to maximize mowing efficiency
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
Specifications
Key Specs
| Engine power | 25 hp 18.6 kW |
| Engine model number | M49 810CC SSC |
| Forward speed | 0-9.5 mph 0-15.3 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 23x9.5-12 (48-in. decks) 23X10.5-12 (54- and 60-in. decks) |
| Seat back height | High back with adjustable armrests, 22.5 in. 57.1 cm |
| Width of cut | 48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
| Mulching system | Optional MulchControl™ attachment |
| U.S. warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine
| Power | 25 hp 18.6 kW |
| Model number | M49 810CC SSC |
| Displacement | 49.4 cu in. 810 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Type | Overhead valve |
| Battery | 12 V 340 CCA |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Fuel tank capacity | 8 U.S. gal. 30.2 L |
| Fuel gauge | Fuel level sight line |
Drive train
| Dual hydros | Hydro-gear ZT3200 with 1-in. (2.54-cm) axles |
Travel speed
| Forward speed | 0-9.5 mph 0-15.3 km/h |
| Reverse speed | 0-4 mph 0-6.4 km/h |
| Speed and direction control | Twin premium levers |
| Control adjustment | 2-height/18 positions |
Chassis
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster tires | 13x6.5-6 |
| Front caster bearings | Sealed ball bearings |
| Drive tires | 23x9.5-12 (48-in. decks) 23X10.5-12 (54- and 60-in. decks) |
| Hourmeter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
Seat
| Seat back height | High back with adjustable armrests, 22.5 in. 57.1 cm |
| Fore-aft adjustment | While seated, +/- 2 in. 5.08 cm |
| Seat suspension | Two four-position springs with ComfortGlide™ fore/aft suspension |
Lift system
| Type | Spring assisted foot lift |
| Mower cut height | 1.5-5 in. 3.8-12.7 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
Mower deck
| Width of cut | 48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
| Type | High-capacity (HC) PRO side discharge |
| Mower deck material | 9 gauge 0.15 in. 3.8 mm |
| Mower drive system | V-belt |
PTO
| Type | Electric, 125 lb-ft 169 Nm |
| Drive | V-belt |
Dimensions
| Wheelbase | 49.9 in. 126.7 cm |
| Overall length | 82 in. 208.4 cm |
| Width without mower | 48.6 in. 123.5 cm |
| Width with mower | 48 HC, 62.3 in. 158.2 cm 54 HC, 68.2 in. 173.2 cm 60 HC, 73.3 in. 186.1 cm |
| Width with mower (deflector raised for storage) | 48 HC, 53.2 in. 135.1 cm 54 HC, 59.4 in. 151 cm 60 HC, 64.8 in. 164.5 cm |
| Height | ROPS up - 71.1 in. 182.2 cm ROPS down - 49.7 in. 126.2 cm |
| Weight | With mower and fuel, 48 HC, 950 lb 431 kg With mower and fuel, 54 HC, 965 lb 437 kg With mower and fuel, 60 HC, 990 lb 449 kg |
Safety
| Operator presence system | Yes |
| Park brake interlock | Yes |
| Safety video | Yes |
Buyer's notes
| Note 1 | Flip-up and adjustable foot platform for easy service access |
| U.S. warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Optional attachments
| Mulching system | Optional MulchControl attachment |
| Rubber floor mat | Optional |
| Light kit | LED - fender mounted |
| Material collection system | 48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu 229.1 L |
