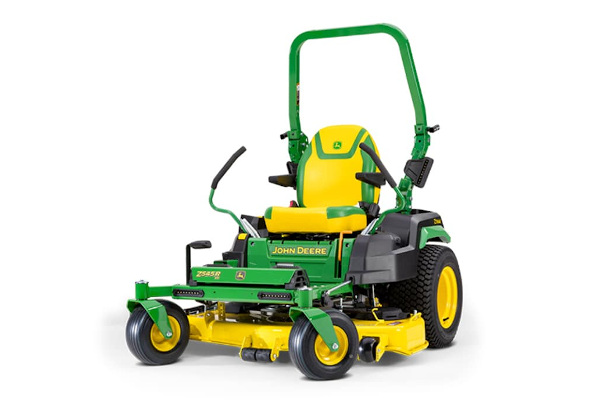

John Deere Z545R ZTrak™ Mower with 48-in. Deck

Double tap to zoom



Features

  • Comfortable ride delivered by an operator station with premium controls and ComfortGlide™ suspension
  • Easy-to-see-and-use advanced instrument display with electric fuel gauge and controls
  • Superior durability and productivity from flat-top design of 9-gauge, 0.15-in. (3.8-mm) high capacity mower decks
  • Quick starts and top performance from 44.2-cu in. (724-cc) V-twin engine with electronic fuel injection (EFI) and electronic throttle control (ETC)
  • Protective zone around the operator is provided by the rollover protective structure (ROPS)
  • Great looks, reliability, and performance delivered by a heavy-duty design with extra appearance features
  • Maximize mowing efficiency with premium control levers and dual transmissions that offer speeds up to 9 mph (14.5 km/h)
  • Convenient machine service includes 4-year bumper-to-bumper warranty

Specifications

Key Specs

Engine power 25 hp
18.6 kW
Engine model number HTR EFI/ETC
Forward speed 0-9 mph
0-14.5 km/h
Front caster tires 13x6.5-6
Drive tires 23x10.5-12
Seat back height High back with armrests and ComfortGlide™, 22.5 in.
57.1 cm
Width of cut High capacity mower deck, 48 in.
122 cm
High capacity mower deck, 54 in.
137 cm
High capacity mower deck, 60 in.
152 cm
Mulching system Optional MulchControl™ attachment, 48 in.
122 cm
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl kit, 60 in.
152 cm
U.S. warranty 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine

Power
25 hp
18.6 kW
Model number HTR EFI/ETC
Displacement 44.2 cu in.
724 cc
Cylinders V-twin
Lubrication Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L
Type Overhead valve
Battery 12 V
300 CCA
Choke/speed control Separate control levers
Cooling method Air
Fuel tank capacity 4.5 U.S. gal.
17 L
Fuel gauge Electric gauge and fuel level sight line

Drive train

Dual hydros Tuff Torq TZT7-M with 1-in. (2.5-cm) axles

Travel speed

Forward speed 0-9 mph
0-14.5 km/h
Reverse speed 0-4.5 mph
0-7.2 km/h
Speed and direction control Twin premium levers
Control adjustment 2-height/9-fore-aft, 18 positions

Chassis

Frame Heavy-duty frame tubing
Primer/paint E-coat/powder
Front caster tires 13x6.5-6
Front caster bearings Sealed ball bearings
Drive tires 23x10.5-12
Hourmeter Yes
Service interval decal Yes
Storage compartment Yes and covered
Cup holder Yes

Seat

Seat back height High back with armrests and ComfortGlide, 22.5 in.
57.1 cm
Fore-aft adjustment While seated, 3 in.
7.6 cm
Seat suspension Two springs and ComfortGlide

Lift system

Type Foot lift
Mower cut height 1-4 in.
2.5-10.2 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes

Mower deck

Width of cut High capacity mower deck, 48 in.
122 cm
High capacity mower deck, 54 in.
137 cm
High capacity mower deck, 60 in.
152 cm
Type High-capacity side discharge
Mower deck material 9 gauge
0.15 in.
3.8 mm
Mower drive system V-belt

PTO

Type Electric, 125 lb-ft
169.5 Nm
Drive V-belt

Dimensions

Wheelbase 49.2 in.
125 cm
Overall length 81.9 in.
208 cm
Width without mower 48.7 in.
123.7 cm
Width with mower 48HC - 62.4 in.
158.5 cm
54HC - 68.3 in.
173.5 cm
60HC - 73.5 in.
186.7 cm
Width with mower (deflector raised for storage) 48HC - 53.6 in.
136.1 cm
54HC - 59.6 in.
151 cm
60HC - 65.6 in.
167 cm
Height 48.3 in.
122.8 cm
With rollover protective structure (ROPS) up position - 70.7 in.
179.6 cm
Weight With mower and fuel, 48HC, 826 lb
375 kg
With mower and fuel, 54HC, 832 lb
378 kg
With mower and fuel, 60HC, 840 lb
382 kg

Operation

Rollover protective structure (ROPS) Yes
Slope operating limit 15 degrees, 10 degrees with an MCS
Operator presence system Yes
Park brake interlock Yes
Operator video Yes

Buyer's notes

Note 1 Mower wash port makes cleaning the deck easier
Note 2 Flip-up foot platform for easy service access
Note 3 18-position adjustable motion-control levers
U.S. warranty 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional attachments

Mulching system Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl kit, 60 in.
152 cm
Rubber floor mat Foot platform and toe board
Sun shade Optional
Mounted sprayer No
Storage cover Yes
Light kit 4-point LED Light kit
Material collection system Power Flow rear bagger, 6.5 bu
230 L
Not available on 60HC
