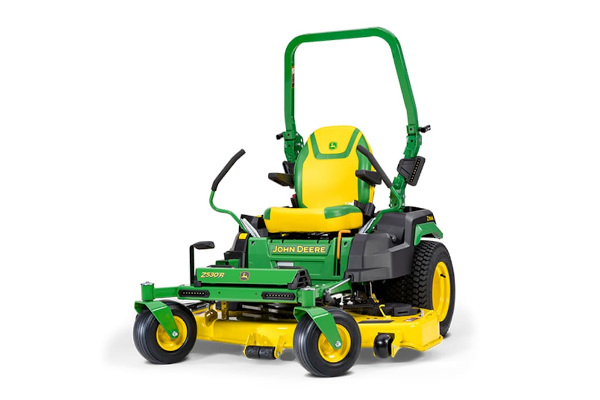

John Deere Z530R ZTrak™ Mower with 54-in. Deck
Z500 Series Z530R ZTrak™ Mower with 54-in. Deck
Overview:
• 24 hp* Kawasaki V-Twin engine
• 54-in High Capacity mower deck with optional MulchControl™
• Folding Rollover Protective Structure (ROPS)
• 22.5-in seat with ComfortGlide™ suspension
• Fuel indicator with advanced LCD display and standard LED light package
Share This Product:
Features
- Comfortable ride delivered by an operator station with premium controls and ComfortGlide™ suspension
- Easy-to-see-and-use advanced instrument display with electric fuel gauge and controls
- Superior durability and productivity from flat-top design of 9-gauge, 0.15-in. (3.8-mm) high capacity mower decks
- Superior performance and long life with a smooth and powerful 44.3-cu in. (726-cc) V-twin engine
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Great looks, reliability, and performance delivered by a heavy-duty design with extra appearance features
- Maximize mowing efficiency with premium control levers and dual transmissions that offer speeds up to 9 mph (14.5 km/h)
- Convenient machine service includes 4-year bumper-to-bumper warranty
Specifications
Key Specs
| Engine power | 24 hp 17.9 kW |
| Engine model number | FR730V |
| Forward speed | 0-9 mph 0-14.5 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 23x10.5-12 |
| Seat back height | High back with armrests and ComfortGlide™, 22.5 in. 57.1 cm |
| Width of cut | High capacity mower deck, 54 in. 137 cm High capacity mower deck, 60 in. 152 cm |
| Mulching system | Optional MulchControl™ attachment, 54 in. 137 cm Optional MulchControl kit, 60 in. 152 cm |
| U.S. warranty | 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine
| Power | 24 hp 17.9 kW |
| Model number | FR730V |
| Displacement | 44.3 cu in. 726 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Type | Overhead valve |
| Battery | 12 V 300 CCA |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
| Fuel gauge | Electric gauge and fuel level sight line |
Drive train
| Dual hydros | Tuff Torq TZT7-M with 1-in. (2.5-cm) axles |
Travel speed
| Forward speed | 0-9 mph 0-14.5 km/h |
| Reverse speed | 0-4.5 mph 0-7.2 km/h |
| Speed and direction control | Twin premium levers |
| Control adjustment | 2-height/9-fore-aft, 18 positions |
Chassis
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster tires | 13x6.5-6 |
| Front caster bearings | Sealed ball bearings |
| Drive tires | 23x10.5-12 |
| Hourmeter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes and covered |
| Cup holder | Yes |
Seat
| Seat back height | High back with armrests and ComfortGlide, 22.5 in. 57.1 cm |
| Fore-aft adjustment | While seated, 3 in. 7.6 cm |
| Seat suspension | Two springs and ComfortGlide |
Lift system
| Type | Foot lift |
| Mower cut height | 1-4 in. 2.5-10.2 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
Mower deck
| Width of cut | High capacity mower deck, 54 in. 137 cm High capacity mower deck, 60 in. 152 cm |
| Type | High-capacity side discharge |
| Mower deck material | 9 gauge 0.15 in. 3.8 mm |
| Mower drive system | V-belt |
PTO
| Type | Electric, 125 lb-ft 169.5 Nm |
| Drive | V-belt |
Dimensions
| Wheelbase | 49.2 in. 125 cm |
| Overall length | 81.9 in. 208 cm |
| Width without mower | 48.7 in. 123.7 cm |
| Width with mower | 54HC - 68.3 in. 173.5 cm 60HC - 73.5 in. 186.7 cm |
| Width with mower (deflector raised for storage) | 54HC - 59.6 in. 151 cm 60HC - 65.6 in. 167 cm |
| Height | 48.3 in. 122.8 cm With rollover protective structure (ROPS) up position - 70.7 in. 179.6 cm |
| Weight | With mower and fuel, 54HC, 834 lb 379 kg With mower and fuel, 60HC, 842 lb 383 kg |
Operation
| Rollover protective structure (ROPS) | Yes |
| Slope operating limit | 15 degrees, 10 degrees with an MCS |
| Operator presence system | Yes |
| Park brake interlock | Yes |
| Operator video | Yes |
Buyer's notes
| Note 1 | Mower wash port makes cleaning the deck easier |
| Note 2 | Flip-up foot platform for easy service access |
| Note 3 | 18-position adjustable motion-control levers |
| U.S. warranty | 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Optional attachments
| Mulching system | Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl kit, 60 in. 152 cm |
| Rubber floor mat | Foot platform and toe board |
| Sun shade | Optional |
| Mounted sprayer | No |
| Storage cover | Yes |
| Light kit | 4-point LED Light kit |
| Material collection system | Power Flow rear bagger, 6.5 bu 230 L Not available on 60HC |
