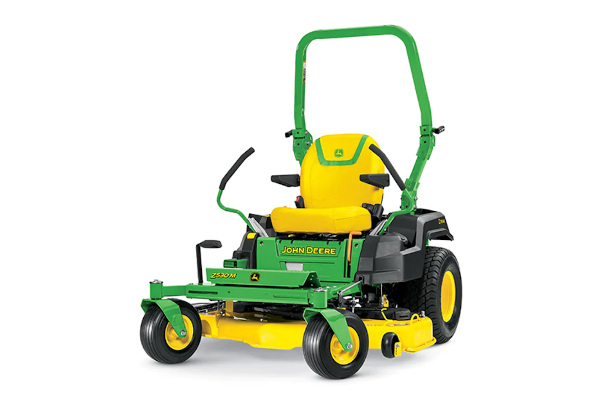

John Deere Z530M ZTrak™ Mower with 48-in. Deck
Z500 Series Z530M ZTrak™ Mower with 48-in. Deck
Overview:
• 24 hp* Kawasaki V-Twin engine
• 48-in Accel Deep™ deck with optional MulchControl™
• Folding Rollover Protective Structure (ROPS)
• 20-in seat with ComfortGlide™ suspension
• Premium control levers
Share This Product:
Features
- Comfortable ride delivered by an operator station with adjustable controls and ComfortGlide™ suspension
- Easy-to-see-and-use electric fuel gauge, instruments, and controls
- Superior cut quality and productivity from the flat-top design of Accel Deep™ Mower Decks
- Superior performance and long life with a smooth and powerful 44.3-cu in. (726-cc) V-twin engine
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Maximize mowing efficiency with dual transmissions that offer mowing speeds up to 8 mph (12.9 km/h)
- Convenient machine service includes 4-year bumper-to-bumper warranty
Specifications
Key Specs
| Engine power | 24 hp 17.9 kW |
| Engine model number | FR730V |
| Forward speed | 0-8 mph 0-12.9 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 22x9.5-10 |
| Seat back height | High back with armrests and ComfortGlide™, 20 in. 50.8 cm |
| Width of cut | Accel Deep™ mower deck, 48 in. 122 cm Accel Deep mower deck, 54 in. 137 cm Accel Deep mower deck, 60 in. 152 cm |
| Mulching system | Optional MulchControl™ attachment, 48 in. 122 cm Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl attachment, 60 in. 152 cm |
| U.S. warranty | 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine
| Power | 24 hp 17.9 kW |
| Model number | FR730V |
| Displacement | 44.3 cu in. 726 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Type | Overhead valve |
| Battery | 12 V 300 CCA |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
| Fuel gauge | Electric gauge and fuel level sight line |
Drive train
| Dual hydros | Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles |
| Hydraulic pumps | |
| Wheel motors |
Travel speed
| Forward speed | 0-8 mph 0-12.9 km/h |
| Reverse speed | 0-4 mph 0-6.4 km/h |
| Speed and direction control | Twin premium levers |
| Control adjustment | 2-height/9-fore-aft, 18 positions |
Chassis
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster tires | 13x6.5-6 |
| Front caster bearings | Sealed ball bearings |
| Drive tires | 22x9.5-10 |
| Hourmeter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
Seat
| Seat back height | High back with armrests and ComfortGlide, 20 in. 50.8 cm |
| Fore-aft adjustment | While seated, 3 in. 7.6 cm |
| Seat suspension | Two springs and ComfortGlide |
Lift system
| Type | Foot lift |
| Mower cut height | 1-4 in. 2.5-10.2 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
Mower deck
| Width of cut | Accel Deep mower deck, 48 in. 122 cm Accel Deep mower deck, 54 in. 137 cm Accel Deep mower deck, 60 in. 152 cm |
| Type | Side discharge |
| Mower deck material | 10 gauge 0.135 in. 3.4 mm |
| Mower drive system | V-belt |
PTO
| Type | Electric, 105 lb-ft 142.4 Nm |
| Drive | V-belt |
Dimensions
| Wheelbase | 49.2 in. 125 cm |
| Overall length | 76.9 in. 195.3 cm |
| Width without mower | 46.6 in. 118.4 cm |
| Width with mower | 48A - 62.8 in. 159.5 cm 54A - 68.6 in. 174.2 cm 60A - 73.4 in. 186.4 cm |
| Width with mower (deflector raised for storage) | 48A - 54 in. 137 cm 54A - 59.7 in. 152 cm 60A - 65.6 in. 167 cm |
| Height | 47.6 in. 121 cm With rollover protective structure (ROPS) up position - 70.1 in. 178 cm |
| Weight | With mower and fuel, 48A, 772 lb 351 kg With mower and fuel, 54A, 780 lb 355 kg With mower and fuel, 60A, 788 lb 358 kg |
Operation
| Rollover protective structure (ROPS) | Yes |
| Slope operating limit | 15 degrees, 10 degrees with an MCS |
| Operator presence system | Yes |
| Park brake interlock | Yes |
| Operator video | Yes |
Buyer's notes
| Note 1 | Mower wash port makes cleaning the deck easier |
| Note 2 | Flip-up foot platform for easy service access |
| Note 3 | 18-position adjustable motion-control levers |
| U.S. warranty | 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Optional attachments
| Mulching system | Optional MulchControl attachment, 48 in. 122 cm Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl attachment, 60 in. 152 cm |
| Rubber floor mat | Foot platform only |
| Sun shade | Optional |
| Mounted sprayer | No |
| Storage cover | No |
| Light kit | Optional 4-point LED Light kit |
| Material collection system | Power Flow rear bagger, 6.5 bu 230 L Not available on 60A |
