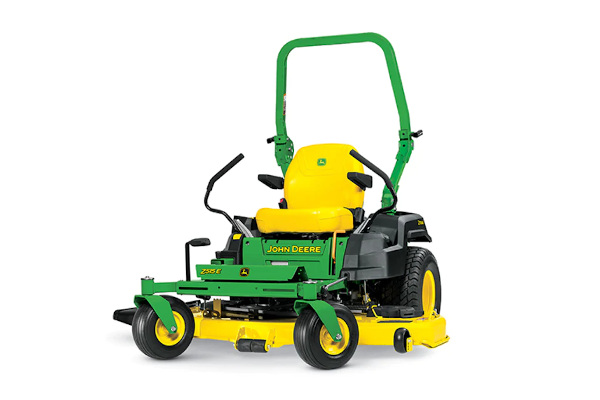

John Deere Z515E ZTrak™ Mower with 60-in. Deck

Double tap to zoom



Features

  • Comfortable ride delivered by an operator station with adjustable controls and seat position
  • Easy-to-see-and-use electric fuel gauge, instruments, and controls
  • Superior cut quality and productivity from the flat-top design of Accel Deep™ Mower Decks
  • Great performance and long life with a smooth and powerful 44.2-cu in. (724-cc) V-twin engine
  • Protective zone around the operator is provided by the rollover protective structure (ROPS)
  • Great appearance, reliability, and performance delivered by a heavy-duty design
  • Maximize mowing efficiency with dual transmissions that offer mowing speeds up to 8 mph (12.9 km/h)
  • Convenient machine service includes 4-year bumper-to-bumper warranty

Specifications

Key Specs

Engine power 24 hp
17.9 kW
Engine model number M44 Extended Life Series (ELS)
Forward speed 0-8 mph
0-12.9 km/h
Front caster tires 13x6.5-6
Drive tires 22x9.5-10
Seat back height Medium back with armrests, 18 in.
45.7 cm
Width of cut Accel Deep™ mower deck, 48 in.
122 cm
Accel Deep mower deck, 54 in.
137 cm
Accel Deep mower deck, 60 in.
152 cm
Mulching system Optional MulchControl™ attachment, 48 in.
122 cm
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl attachment, 60 in.
152 cm
U.S. warranty 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine

Power
24 hp
17.9 kW
Model number M44 Extended Life Series (ELS)
Displacement 44.2 cu in.
724 cc
Cylinders V-twin
Lubrication Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L
Type Overhead valve
Battery 12 V
300 CCA
Choke/speed control Separate levers
Cooling method Air
Fuel tank capacity 4.5 U.S. gal.
17 L
Fuel gauge Electric gauge and fuel level sight line

Drive train

Dual hydros Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles
Hydraulic pumps
Wheel motors

Travel speed

Forward speed 0-8 mph
0-12.9 km/h
Reverse speed 0-4 mph
0-6.4 km/h
Speed and direction control Twin levers
Control adjustment 2-height/9-fore-aft, 18 positions

Chassis

Frame Heavy-duty frame tubing
Primer/paint E-coat/powder
Front caster tires 13x6.5-6
Front caster bearings Sealed ball bearings
Drive tires 22x9.5-10
Hourmeter Yes
Service interval decal Yes
Storage compartment Yes
Cup holder Yes

Seat

Seat back height Medium back with armrests, 18 in.
45.7 cm
Fore-aft adjustment While seated, 3 in.
7.6 cm
Seat suspension Two springs

Lift system

Type Foot lift
Mower cut height 1-4 in.
2.5-10.2 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes

Mower deck

Width of cut Accel Deep mower deck, 48 in.
122 cm
Accel Deep mower deck, 54 in.
137 cm
Accel Deep mower deck, 60 in.
152 cm
Type Side discharge
Mower deck material 10 gauge
0.135 in.
3.4 mm
Mower drive system V-belt

PTO

Type Electric, 105 lb-ft
142.4 Nm
Drive V-belt

Dimensions

Wheelbase 49.2 in.
125 cm
Overall length 76.9 in.
195.3 cm
Width without mower 46.6 in.
118.4 cm
Width with mower 48A - 62.8 in.
159.5 cm
54A - 68.6 in.
174.2 cm
60A - 73.4 in.
186.4 cm
Width with mower (deflector raised for storage) 48A - 54 in.
137 cm
54A - 59.7 in.
152 cm
60A - 65.6 in.
167 cm
Height 47.6 in.
121 cm
With rollover protective structure (ROPS) up position - 70.1 in.
178 cm
Weight With mower and fuel, 48A, 768 lb
349 kg
With mower and fuel, 54A, 776 lb
353 kg
With mower and fuel, 60A, 784 lb
356 kg

Operation

Rollover protective structure (ROPS) Yes
Slope operating limit 15 degrees, 10 degrees with an MCS
Operator presence system Yes
Park brake interlock Yes
Operator video Yes

Buyer's notes

Note 1 Mower wash port makes cleaning the deck easier
Note 2 Flip-up foot platform for easy service access
Note 3 18-position adjustable motion-control levers
U.S. warranty 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional attachments

Mulching system Optional MulchControl attachment, 48 in.
122 cm
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl attachment, 60 in.
152 cm
Rubber floor mat Optional
Sun shade Optional
Mounted sprayer No
Storage cover No
Light kit Optional 4-point LED Light kit
Material collection system Power Flow rear bagger, 6.5 bu
230 L
Not available on 60A
