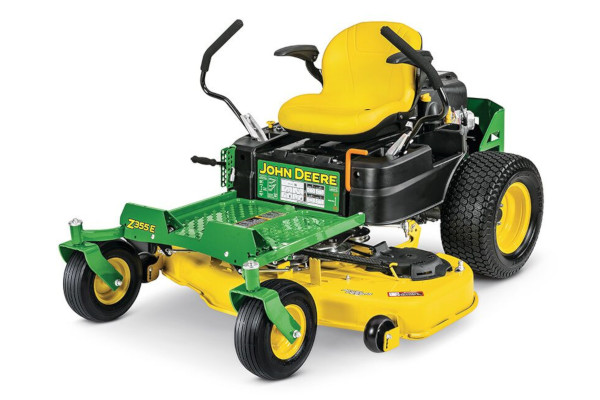

John Deere Z355E
Z300 Series Z355E
Overview:
• 22 HP* V-Twin engine
• 48-in Accel Deep™ Mower Deck with optional MulchControl™ Kit
• Hydrostatic Transmission
• Comfortable armrests, standard
• Convenient low fuel indicator to help you keep going
• 7-mph mowing speed
Share This Product:
Features
- Great performance and long life with a smooth and powerful V-twin engine
- Get a clean cut with the flat-top design of the 48-in. (122-cm) Accel Deep™ Mower Deck
- Comfortable ride delivered by operator station with adjustable controls and seat position
- Convenient machine service includes bumper-to-bumper warranty
- Easy to find and use instruments and controls
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Reliable and easy-to-use electric power take-off (PTO) clutch
- Efficiency and durability from dual transmissions with large, 1-in. (2.5-cm) diameter axles
- Easy refueling with a conveniently located fuel tank
Specifications
Key Specs
| Engine power | 22 hp 16.4 kW |
| Engine model number | M44 Intek |
| Forward speed | 0-7 mph 0-11.3 km/h |
| Front caster tires | 13x5-6 |
| Drive tires | 20x9-10 |
| Seat back height | Medium back with armrests, 15 in. 38.1 cm |
| Width of cut | Accel Deep™ mower deck, 48 in. 122 cm |
| Mulching system | Optional MulchControl™ attachment |
| U.S. warranty | 2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine
| Power | 22 hp 16.4 kW |
| Model number | M44 Intek |
| Displacement | 44.2 cu in. 724 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Type | Overhead valve |
| Battery | 12 V 300 CCA |
| Choke/speed control | Single lever |
| Cooling method | Air |
| Fuel tank capacity | 2.1 U.S. gal. 7.9 L |
| Fuel gauge | Low-fuel light |
Drive train
| Dual hydros | Hydro-Gear EZT with 1-in. (2.5-cm) axles |
| Hydraulic pumps | |
| Wheel motors |
Travel speed
| Forward speed | 0-7 mph 0-11.3 km/h |
| Reverse speed | 0-3.5 mph 0-5.6 km/h |
| Speed and direction control | Twin levers |
| Control adjustment | 2-height/9-fore-aft, 18 positions |
Chassis
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster tires | 13x5-6 |
| Front caster bearings | Sealed ball bearings |
| Drive tires | 20x9-10 |
| Hourmeter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
Seat
| Seat back height | Medium back with armrests, 15 in. 38.1 cm |
| Fore-aft adjustment | 2.5 in. 6.35 cm |
| Seat suspension | Two springs |
Lift system
| Type | Hand lever with optional foot lift |
| Mower cut height | 1-4 in. 2.5-10.2 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
Mower deck
| Width of cut | Accel Deep™ mower deck, 48 in. 122 cm |
| Type | Side discharge |
| Mower deck material | 10 gauge 0.135 in. 3.4 mm |
| Mower drive system | V-belt |
PTO
| Type | Electric, 105 lb-ft 142 Nm |
| Drive | V-belt |
Dimensions
| Wheelbase | 47.5 in. 121 cm |
| Overall length | 72.2 in. 183.5 cm |
| Width without mower | 44 in. 111.9 cm |
| Width with mower | 62.6 in. 158.8 cm |
| Width with mower (deflector raised for storage) | 54 in. 137 cm |
| Height | 36.3 in. 92.2 cm |
| Weight | With mower and fuel, 570 lb 259 kg |
Operation
| Rollover protective structure (ROPS) | No |
| Slope operating limit | 13 degrees |
| Operator presence system | Yes |
| Park brake interlock | Yes |
| Operator video | Yes |
Buyer's notes
| Note 1 | Mower wash port makes cleaning the deck easier |
| Note 2 | Flip-up foot platform for easy service access |
| Note 3 | 18-position adjustable motion-control levers |
| U.S. warranty | 2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Optional attachments
| Mulching system | Optional MulchControl™ attachment |
| Rubber floor mat | Yes |
| Sun shade | Yes |
| Mounted sprayer | Not available |
| Storage cover | Yes |
| Light kit | Dual headlight kit |
| Material collection system | Not available |
