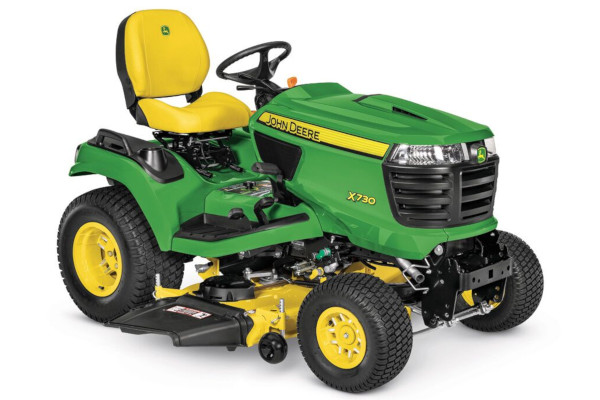

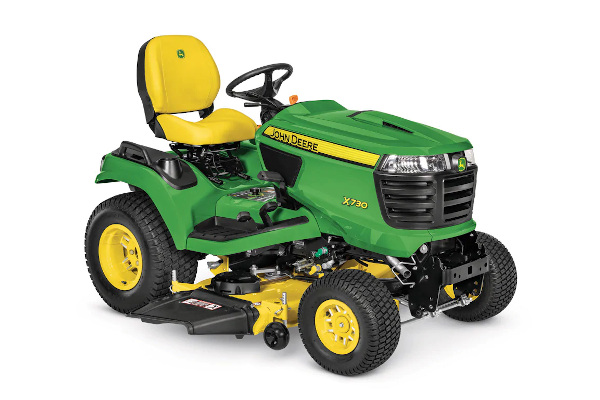

John Deere X730

Double tap to zoom



Features

  • Electronic fuel injection
  • Heavy-duty welded frame
  • Power steering for quick, precise control
  • 4-year/700-hour bumper-to-bumper warranty

Specifications

Manufacturer John Deere
Model X730 (2017)
Engine
Power  25.5 hp (19 kW)
Displacement  45.5 cu in. (745 cc)
Manufacturer/model  FD750D EFI
Type  Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
Cylinders  V-twin, cast-iron liners
Governor  Mechanical
Choke/speed control  No choke required
Cooling method  Liquid
Air cleaner  Dry, replaceable with foam precleaner
Oil drain  No tools
Fuel system
Type  Gasoline
Fuel delivery  Electronic fuel injection
Fuel gauge  Gauge on dash
Fuel tank location  Rear
Fuel fill opening  On left fender, 3 in. (7.6 cm)
Fuel tank capacity  5.2 U.S. gal. (19.7 L)
Electrical system
Battery  12 V (300 CCA)
Charging system  Flywheel alternator, regulated, 20 amp
Engine starter  Solenoid shift
Hourmeter  Yes
Headlights  Two standard, halogen, 37 W
Taillights or reflector  Taillights
Backup lights  Yes
Rear work lights  Yes
12-V outlet  Yes
Transaxle
Type  K90 hydrostatic integrated with transaxle
Control  Twin Touch™ pedals
Cruise control  Yes
Oil cooler  Yes
Oil filter  Replaceable suction side 10 micron
Differential lock  Standard
Forward speed  0-8.5 mph (0-13.7 km/h)
Reverse speed  0-6 mph (0-9.7 km/h)
Brakes  Internal wet disc
Chassis
Frame  Welded heavy-duty
Primer/paint  E-coat/powder
Weight bracket  Standard front - holds up to four Quik-Tatch weights, 42 lb
 19 kg
Receiver hitch  Yes, front
Front axle  JDM BA8 nodular iron casting
Spindle bushings  Metal, replaceable
Front tires  18 x 8.5-8 turf
Rear tires  26 x 12-12 turf
Hood material  Noryl GTX902, painted
Fender deck material  RIM with in-mold paint
Floor mats  Sure-grip rubber
Storage  Covered toolbox
Service interval decal  Yes
Fender handles/grips  Handles
Cup holder  Yes
Equipment mounting  Optional category 1 3-point hitch
Steering
Type  Hydraulic power
All-wheel steer  Not available on this model
Steering wheel  14 in. (35.6 cm)
Tilt steering wheel  Standard, six position
Turning radius  25 in. (63.5 cm)
Uncut circle radius  54 HC, 32 in. (81.3 cm)
 60 HC, 28 in. (71.1 cm)
Seat
Type  Two piece professional high back
Seat back height  21 in. (53.3 cm)
Armrests  Optional
Fore-aft adjustment  While seated, slide rail, 14-position, 7 in. (17.8 cm)
Seat suspension  Six-position parallel arm
Lift system
Type  Two-function hydraulic
Hydraulic outlets  Four, standard
Mower cut height  1-5.25 in. (2.5-13.3 cm)
Cut height increments  0.25 in.  (0.64 cm)
Preset cut height  Yes
Mower deck
Type  Side discharge
Cutting width  48, 54, 60 in. (122, 137, 152 cm)
Construction  Stamped steel deck shell
Mower deck material  48A, 10 gauge  0.135 in.  (3.4 mm)
 54 HC and 60 HC, 9 gauge 0.150 in. (3.8 mm)
Mower wash port  Yes
Mower drive system  Hydraulic clutch, shaft
Mower wheels  Four
Mower wheel adjustment  Spring-loaded pin
Mower level adjustment  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
Type  Roll under tractor (48A)
 Drive-over deck (54, 60 HC)
Front draft arms  Overcenter
Rear draft arms  V-align
Mower wheels rotate  Yes, 90 degrees for easy mower removal (48A), N/A (54 HC, 60 HC)
Drive system  Shaft or AutoConnect
Safety
Meets ANSI standard  Yes
Meets OPEI standard  Yes
Backup protection  Reverse Implement Option (RIO)
Safety video  Yes
Buyer's notes
Notes  Hydraulic modulated PTO clutch for smooth mower and implement engagement
 One-piece hood for easy engine access
 540 rpm rear PTO and 3-point hitch options available
Warranty  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
Mowers  48A, 54 HC, 60 HC
Rear bagger  7, 14, 19, 42 bu (250, 500, 670, 1480 L)
Powered material collection  Power Flow, 7, 14, 19, 42 bu  (250, 500, 670, 1480 L)
Mulching system  Yes, MulchControl™
Front thatcher  38, 46, 54 in.  (96.5, 116.8, 137.2 cm)
Front blade  54 in.  (137.2 cm)
Snow blower  Two-stage, 47, 54 in. (119.4, 137.2 cm)
Rotary broom  52, 60 in.  (132.1, 152.4 cm)
Rotary tiller  42, 48 in.  (106.7, 121.9 cm)
3-point hitch  Category 1
Rear power take-off (PTO)  540 rpm
Plow, moldboard  Adjustable, 8-14 in.  (20.3-35.6 cm)
Box scraper  48 in.  (121.9 cm)
Cultivator  Adjustable, 30-46 in.  (76.2-116.8 cm)
Rear blade  60 in.  (152.4 cm)
Disk harrow  Adjustable, 42-52 in. (106.7-132.1 cm)
Landscape rake  60 in. (152.4 cm)
Sprayer  Tow-behind, 15, 25, 45 U.S. gal. (56.8, 94.6, 170.3 L)
 Mounted, 25 U.S. gal.  (94.6 L)
Spreader  Tow-behind, 125, 175 lb  (57.7, 79.4 kg)
 Mounted, 125 lb  (57.7 kg)
Front bumper  Standard bumper/weight bracket
Brush guard  Yes
Weather protection  Hard-side cab, weather enclosure
Rear receiver hitch  1.25x1.25 in.  (3.18x3.18 cm)
Bucket holder  Yes, double
Grass striping  Grass groomer kit, 48-in. (122-cm) mower only
Tractor shovel  54 in.  (137.2 cm)
Front loader  Not available
Tow-behind tools  21
Dimensions
Height  51.2 in.  (130 cm)
Overall length  75 in. (190.5 cm)
Wheelbase  54.5 in. (138.4 cm)
Width with mower  48A, 62.5 in. (159 cm)
 54 HC, 64.5 in. (163.8 cm)
 60 HC, 74 in. (188 cm)
Width with mower (deflector raised for storage)  48A, 53.6 in. (136 cm)
 54 HC, 57.5 in. (146.1 cm)
 60 HC, 62 in. (157.5 cm)
Width without mower  47 in. (119.4 cm)
Weight  No fuel or mower, 868 lb (393.7 kg)
