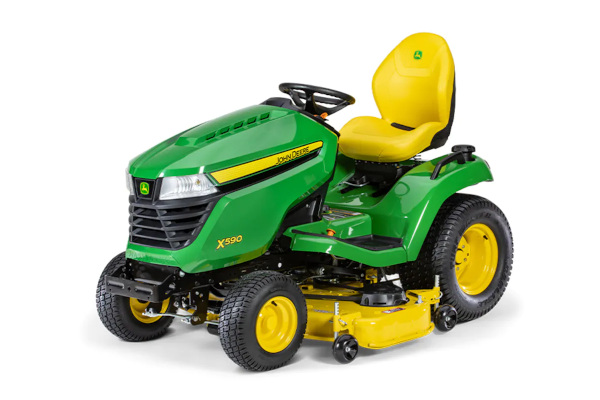

John Deere X590 with 48-in. Deck

Double tap to zoom



Features

  • V-twin engine has electronic fuel injection (EFI) and electronic throttle control for quick starts and superior performance
  • 48-in. (122-cm) Accel Deep™ (48A) Mower Deck cuts clean and is versatile
  • Four-year or 500-hour bumper-to-bumper warranty is standard
    Power steering and hydraulic lift enable easy operation
  • Hydrostatic transaxle has traction assist
  • Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
  • Snow removal and yard care is a strength of lawn tractors
  • Control and display functions are easy to identify and convenient to use
  • Frame is formed from thick steel and welded for reliability
  • Modern styling is eye appealing and functional
  • Operator station is comfortable and convenient
  • Serviceability is convenient with easy-open hood
  • MowerPlus™ app helps maintain the tractor and lawn

Specifications

Key Specs

Engine power 25.5 hp
19 kW
Oil change No-tools oil drain with replaceable filter
Engine manufacturer/model FS730 EFI
Transaxle type K72 hydrostatic integrated with transaxle
Transaxle control Twin Touch™ pedals
Rear tires 24x12-12 turf
Lift system type Hydaulic
Cutting width Accel Deep™ mower deck, 48, 54 in.
122, 137 cm
U.S. warranty 4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine

Power 25.5 hp
19 kW
Displacement 44.3 cu in.
726 cc
Manufacturer/model FS730 EFI
Type Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
Cylinders V-twin, cast-iron liners
Governor Constant-speed electronic throttle control
Choke/speed control No choke required
Cooling method Air
Air cleaner Dry, replaceable with foam precleaner
Oil change No-tools oil drain with replaceable filter

Fuel system

Type Gasoline
Fuel delivery Open-loop electronic fuel injection (EFI)
Fuel gauge Gauge on dash
Fuel tank location Rear
Fuel fill opening On left fender, 3 in.
7.6 cm
Fuel tank capacity 4.4 U.S. gal.
16.7 L

Electrical system

Battery 12 V
500 CCA
Charging system Flywheel alternator, regulated, 15 amp
Engine starter Solenoid shift
Hourmeter Yes
Headlights Two standard, incandescent, 27 W
Taillights or reflector Reflectors
Backup lights No
Rear work lights No
12-V outlet Yes

Transaxle

Type K72 hydrostatic integrated with transaxle
Control Twin Touch™ pedals
Cruise control Yes, button on dash
Oil cooler Fins and fan on transaxle
Oil filter Yes, replaceable
Differential lock Standard
Forward speed 0-7.2 mph
0-11.6 km/h
Reverse speed 0-5.2 mph
0-8.4 km/h
Brakes Internal wet disc

Chassis

Frame Welded heavy-duty
Primer/paint E-coat/powder
Weight bracket Standard front and rear - each holds up to four Quik-Tatch weights, 42 lb
19 kg
Receiver hitch No
Front axle Cast iron front axle, front wheel ball bearings
Spindle bushings Metal, replaceable
Front tires 16x6.5-8 turf
Rear tires 24x12-12 turf
Hood material Fully enclosed, molded-in color material reduces sound, will not rust or dent
Fender deck material Stamped steel
Floor mats Sure-grip rubber
Storage Yes, under seat and covered toolbox
Service interval decal Yes
Fender handles/grips Handles
Cup holder Yes
Equipment mounting Yes, heavy duty

Steering

Type Power, hydraulic
Four-wheel steer Not available on this model
Steering wheel 14 in.
35.6 cm
Tilt steering wheel Standard, five position
Turning radius 22 in.
55.9 cm
Uncut circle radius 48A, 27 in.
68.6 cm
54A, 24 in.
61 cm

Seat

Type Cut-and-sewn high-back
Seat back height 21 in.
53 cm
Armrests Optional
Fore-aft adjustment While seated, slide rail, 15-position, 6.6 in.
17 cm
Seat suspension Tilt, two coil springs, three-position no-tools adjustment for operator weight

Lift system

Type Hydraulic
Hydraulic outlets No
Mower cut height 13 positions, 1-4 in.
2.5-10.2 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes

Mower deck

Type Side discharge
Cutting width Accel Deep™ mower deck, 48, 54 in.
122, 137 cm
Construction Stamped steel deck shell
Mower deck material 10 gauge
0.135 in.
3.4 mm
Mower wash port Yes
Mower drive system Electric power take-off (PTO) clutch, in-line belt
Mower wheels Four
Mower wheel adjustment Seven-position, spring-loaded pin
Mower level adjustment Exact Adjust ports and onboard deck-leveling gauge

Mower attachability

Type Roll under tractor
Front draft arms Attached with spring pins at two points
Rear draft arms Quick-pull pins
Mower wheels rotate Yes, 90 degrees for easy mower removal
Drive system Dual belt

Safety

Meets ANSI standard Yes
Meets OPEI standard Yes
Backup protection Reverse Implement Option (RIO)
Safety video Yes

Buyer's notes

Notes Heavy-duty garden tractor transaxle
Convenient power steering and hydraulic lift
Built-in front and rear weight brackets
Warranty 4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional equipment

Mowers 48X option, 54X option
Rear bagger 7, 14, 19 bu
247, 493, 670 L
Powered material collection Power Flow™ blower
Mulching system Yes, MulchControl™
Front thatcher 38, 46, 54 in.
96.5, 116.8, 137.2 cm
Front blade 48 in.
121.9 cm
Snow blower Two-stage, 47 in.
119.4 cm
Sleeve hitch Yes, implements include box scraper, rear blade, plow, disk, and cultivator
Plow, moldboard Yes
Box scraper Yes
Cultivator Yes
Rear blade Yes
Sprayer Tow-behind, 15, 25, 45 U.S. gal.
56.8, 94.6, 170.3 L
Mounted, 25 U.S. gal.
94.6 L
Spreader 125, 175 lb
57.7, 79.4 kg
Mounted, 125 lb
57.7 kg
Front bumper Standard front bumper/weight bracket
Brush guard Yes
Weather protection Weather enclosure
Sun canopy Yes
Bucket holder Yes, double bucket
Grass striping Lawn striping kit
Tractor shovel 40 in.
101.6 cm
Tow-behind tools 19

Dimensions

Height 52.25 in.
132.7 cm
Overall length 79 in.
201 cm
Wheelbase 51.2 in.
130 cm
Width with mower 48A: 62.5 in.
159 cm
54A: 68.4 in.
174 cm
Width with mower (deflector raised for storage) 48A: 53.6 in.
136 cm
54A: 59.4 in.
151 cm
Width without mower 41 in.
104.1 cm
Weight 48A Mower, no fuel: 797 lb
362 kg
54A Mower, no fuel: 805 lb
365 kg
