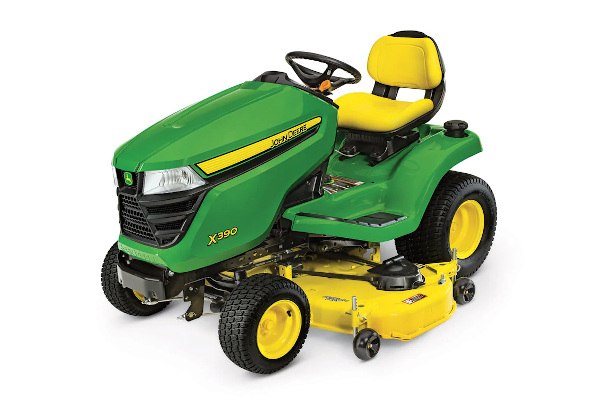

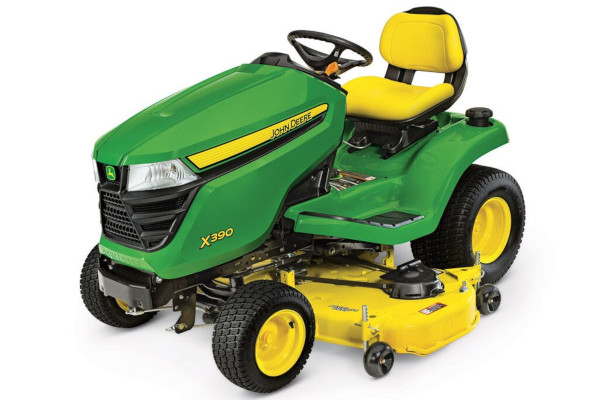

John Deere X390 Tractor with 48-in Deck
X300 Select Series X390 Tractor with 48-in Deck
Overview:
• Powered by 23-hp (17.2-kW)* iTorque™ Power System
• 48-in. Accel Deep™ mower deck
• Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
• Automotive-style power steering
• 18-in. Cut and Sewn Seat
Share This Product:
Features
- Engine is smooth running and reliable V-twin air-cooled design
48-in. (122-cm) Accel Deep™ (48A) Mower Deck cuts clean and is versatile - Four-year or 300-hour bumper-to-bumper warranty is standard
- Power steering and hydraulic lift enable easy operation
- Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
- Snow removal is a strength of lawn tractors
- Integrated hydrostatic transaxle efficiently transmits power to wheels
- Controls are convenient and easy to find
- Frame is reliable heavy-duty welded steel
- Modern styling with functional design enhances appearance and performance
- Operator station is comfortable and convenient
- Serviceability is convenient with easy-open hood
- MowerPlus™ app helps maintain the tractor and lawn
Specifications
Key Specs
| Engine power | 23 hp 17.2 kW |
| Oil change | No-tools oil drain with replaceable filter |
| Engine manufacturer/model | FR691V |
| Transaxle type | K58 hydrostatic integrated with transaxle |
| Transaxle control | Twin Touch™ pedals |
| Rear tires | 22x11-10 |
| Lift system type | Hydraulic |
| Cutting width | Accel Deep™ mower deck, 48 in. 122 cm |
| U.S. warranty | 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine
| Power | 23 hp 17.2 kW |
| Displacement | 44.3 cu in. 726 cc |
| Manufacturer/model | FR691V |
| Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Mechanical |
| Choke/speed control | Separate levers, automatic choke return |
| Cooling method | Air |
| Air cleaner | Dry, replaceable |
| Oil change | No-tools oil drain with replaceable filter |
Fuel system
| Type | Gasoline |
| Fuel delivery | Pulse pump, carburetor |
| Fuel gauge | Gauge on dash |
| Fuel tank location | Rear |
| Fuel fill opening | On left fender, 3 in. 7.6 cm |
| Fuel tank capacity | 3.3 U.S. gal. 12.5 L |
Electrical system
| Battery | 12 V 340 CCA |
| Charging system | Flywheel alternator, regulated, 12 amp |
| Engine starter | Bendix |
| Hourmeter | Yes |
| Headlights | Two standard, incandescent, 27 W |
| Taillights or reflector | No |
| Backup lights | No |
| Rear work lights | No |
| 12-V outlet | Optional |
Transaxle
| Type | K58 hydrostatic integrated with transaxle |
| Control | Twin Touch™ pedals |
| Cruise control | Yes, button on dash |
| Oil cooler | Fins and fan on transaxle |
| Oil filter | Internal, not replaceable |
| Differential lock | No |
| Forward speed | 0-6.2 mph 0-10 km/h |
| Reverse speed | 0-3.5 mph 0-5.6 km/h |
| Brakes | Internal wet disc |
Chassis
| Frame | Welded heavy-duty |
| Primer/paint | E-coat/powder |
| Weight bracket | Standard rear, optional front |
| Receiver hitch | No |
| Front axle | Cast iron front axle, front wheel ball bearings |
| Spindle bushings | Metal, replaceable |
| Front tires | 15x6.5-8 |
| Rear tires | 22x11-10 |
| Hood material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Fender deck material | Stamped steel |
| Floor mats | Sure-grip rubber |
| Storage | Yes, under seat and covered toolbox |
| Service interval decal | Yes |
| Fender handles/grips | No |
| Cup holder | Yes |
| Equipment mounting | Yes, heavy duty |
Steering
| Type | Power, hydraulic |
| Four-wheel steer | Not available on this model |
| Steering wheel | Large, 14 in. 35.6 cm |
| Tilt steering wheel | Standard, five position |
| Turning radius | 22 in. 55.9 cm |
| Uncut circle radius | 24 in. 61 cm |
Seat
| Type | Cut-and-sewn high-back |
| Seat back height | 18 in. 46 cm |
| Armrests | Optional |
| Fore-aft adjustment | While seated, slide rail, 15-position, 6.6 in. 17 cm |
| Seat suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
Lift system
| Type | Hydraulic |
| Hydraulic outlets | No |
| Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
Mower deck
| Type | Side discharge |
| Cutting width | Accel Deep™ mower deck, 48 in. 122 cm |
| Construction | Stamped steel deck shell |
| Mower deck material | 10 gauge 0.135 in. 3.4 mm |
| Mower wash port | Yes |
| Mower drive system | Electric power take-off (PTO) clutch, in-line belt |
| Mower wheels | Four |
| Mower wheel adjustment | Seven-position, spring-loaded pin |
| Mower level adjustment | Exact Adjust ports and onboard deck-leveling gauge |
Mower attachability
| Type | Roll under tractor |
| Front draft arms | Attached with spring pins at two points |
| Rear draft arms | Quick-pull pins |
| Mower wheels rotate | Yes, 90 degrees for easy mower removal |
| Drive system | Dual belt |
Safety
| Meets ANSI standard | Yes |
| Meets OPEI standard | Yes |
| Backup protection | Reverse Implement Option (RIO) |
| Safety video | Yes |
Buyer's notes
| Notes | Hydraulic power lift for superior convenience and ease of use Power steering with tilt steering wheel for exceptional maneuverability and comfort Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Warranty | 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Optional equipment
| Mowers | 48A (standard) |
| Rear bagger | 7, 19 bu 247, 670 L |
| Powered material collection | Power Flow™ blower |
| Mulching system | Yes, MulchControl™ |
| Front thatcher | 38, 46, 54 in. 96.5, 116.8, 137.2 cm |
| Front blade | 44 in. 111.8 cm |
| Snow blower | Two-stage, 44 in. 111.8 cm |
| Sprayer | Tow-behind, 15 U.S. gal. 56.8 L Tow-behind, 25 U.S. gal. 94.6 L Mounted, 25 U.S. gal. |
| Spreader | Tow-behind, 125 lb 57.7 kg Tow-behind, 175 lb 79.4 kg Mounted, 125 lb |
| Front bumper | Styled bumper option |
| Brush guard | Yes |
| Weather protection | Weather enclosure |
| Sun canopy | Yes |
| Bucket holder | Yes, double bucket |
| Grass striping | Lawn striping kit |
| Tractor shovel | 40 in. 101.6 cm |
| Tow-behind tools | 16 |
Dimensions
| Height | 49 in. 124 cm |
| Overall length | 72 in. 182.9 cm |
| Wheelbase | 49.4 in. 125.5 cm |
| Width with mower | 62.5 in. 159 cm |
| Width with mower (deflector raised for storage) | 53.6 in. 136 cm |
| Width without mower | 38.5 in. 97.5 cm |
| Weight | Mower, no fuel: 678 lb 308 kg |
