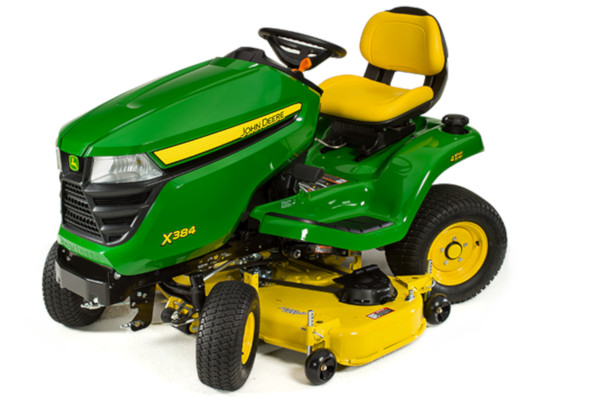

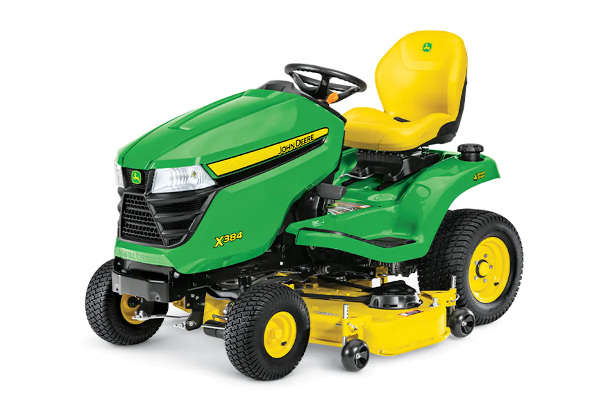

John Deere X384 Tractor with 48-inch Deck

Double tap to zoom



Features

  • Engine is smooth running and reliable V-twin air-cooled design
  • 48-in. (122-cm) Accel Deep™ (48A) Mower Deck cuts clean and is versatile
  • Four-year or 300-hour bumper-to-bumper warranty is standard
  • Four-wheel steer gives superior maneuverability and trimming ability
  • Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
  • Snow removal is a strength of lawn tractors
  • Integrated hydrostatic transaxle efficiently transmits power to wheels
  • Controls and display functions are easy to identify and convenient to use
  • Frame is reliable heavy-duty welded steel
  • Modern styling with functional design enhances appearance and performance
  • Operator station is comfortable and convenient
  • Serviceability is convenient with easy-open hood
  • MowerPlus™ app helps maintain the tractor and lawn

Specifications

Key Specs

Engine power 23 hp
17.2 kW
Oil change No-tools oil drain with replaceable filter
Engine manufacturer/model FR691V
Transaxle type K58 hydrostatic integrated with transaxle
Transaxle control Twin Touch™ pedals
Rear tires 20x10-10
Lift system type Foot pedal with adjustable spring assist
Cutting width Accel Deep™ mower deck, 48 in.
122 cm
U.S. warranty 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine

Power 23 hp
17.2 kW
Displacement 44.3 cu in.
726 cc
Manufacturer/model FR691V
Type Overhead valve, full-pressure lube, oil filter
Cylinders V-twin, cast-iron liners
Governor Mechanical
Choke/speed control Separate levers, automatic choke return
Cooling method Air
Air cleaner Dry, replaceable
Oil change No-tools oil drain with replaceable filter

Fuel system

Type Gasoline
Fuel delivery Pulse pump, carburetor
Fuel gauge Gauge on dash
Fuel tank location Rear
Fuel fill opening On left fender, 3 in.
7.6 cm
Fuel tank capacity 3.3 U.S. gal.
12.5 L

Electrical system

Battery 12 V
340 CCA
Charging system Flywheel alternator, regulated, 12 amp
Engine starter Bendix
Hourmeter Yes
Headlights Two standard, incandescent, 27 W
Taillights or reflector No
Backup lights No
Rear work lights No
12-V outlet Optional

Transaxle

Type K58 hydrostatic integrated with transaxle
Control Twin Touch™ pedals
Cruise control Yes, button on dash
Oil cooler Fins and fan on transaxle
Oil filter Internal, not replaceable
Differential lock No
Forward speed 0-5.9 mph
0-9.5 km/h
Reverse speed 0-3.5 mph
0-5.6 km/h
Brakes Internal wet disc

Chassis

Frame Welded heavy-duty
Primer/paint E-coat/powder
Weight bracket Optional front and rear
Receiver hitch No
Front axle Cast iron front axle, front wheel ball bearings
Spindle bushings No
Front tires 15x6-6
Rear tires 20x10-10
Hood material Fully enclosed, molded-in color material reduces sound, will not rust or dent
Fender deck material Stamped steel
Floor mats Sure-grip rubber
Storage Yes, under seat and covered toolbox
Service interval decal Yes
Fender handles/grips No
Cup holder Yes
Equipment mounting Yes, heavy duty

Steering

Type Manual, sector and pinion
Four-wheel steer Yes
Steering wheel Large, 14 in.
35.6 cm
Tilt steering wheel No
Turning radius 15 in.
38.1 cm
Uncut circle radius 9 in.
22.9 cm

Seat

Type Cut-and-sewn high-back
Seat back height 18 in.
46 cm
Armrests Optional
Fore-aft adjustment While seated, slide rail, 15-position, 6.6 in.
17 cm
Seat suspension Tilt, two coil springs, three-position no-tools adjustment for operator weight

Lift system

Type Foot pedal with adjustable spring assist
Hydraulic outlets No
Mower cut height 13 positions, 1-4 in.
2.5-10.2 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes

Mower deck

Type Side discharge
Cutting width Accel Deep™ mower deck, 48 in.
122 cm
Construction Stamped steel deck shell
Mower deck material 10 gauge
0.135 in.
3.4 mm
Mower wash port Yes
Mower drive system Electric power take-off (PTO) clutch, in-line belt
Mower wheels Four
Mower wheel adjustment Seven-position, spring-loaded pin
Mower level adjustment Exact Adjust ports and onboard deck-leveling gauge

Mower attachability

Type Roll under tractor
Front draft arms Attached with spring pins at two points
Rear draft arms Quick-pull pins
Mower wheels rotate Yes, 90 degrees for easy mower removal
Drive system Dual belt

Safety

Meets ANSI standard Yes
Meets OPEI standard Yes
Backup protection Reverse Implement Option (RIO)
Safety video Yes

Buyer's notes

Notes Fully enclosed, molded-in color material reduces sound, will not rust or dent
4-wheel steering for unmatched maneuverability and trimming capability
Durable E-coat primer and powder-paint finish
Warranty 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional equipment

Mowers 48A (standard)
Rear bagger 7, 19 bu
247, 670 L
Powered material collection Power Flow™ blower
Mulching system Yes, MulchControl™
Front thatcher 38, 46, 54 in.
96.5, 116.8, 137.2 cm
Front blade 44 in.
111.8 cm
Snow blower Two-stage, 44 in.
111.8 cm
Sprayer Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.
Spreader Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb
Front bumper Styled bumper option
Brush guard Yes
Weather protection Weather enclosure
Sun canopy Yes
Bucket holder Yes, double bucket
Grass striping Lawn striping kit
Tractor shovel 40 in.
101.6 cm
Tow-behind tools 16

Dimensions

Height 49 in.
124 cm
Overall length 72 in.
182.9 cm
Wheelbase 49.4 in.
125.5 cm
Width with mower 62.5 in.
159 cm
Width with mower (deflector raised for storage) 53.6 in.
136 cm
Width without mower 41 in.
104.1 cm
Weight Mower, no fuel: 700 lb
318 kg
